Non Conductive DC24V 1A 4.2MPa FM200 Piston Flow System

Product Details:
Place of Origin: Guangdong
Brand Name: Xingjin
Model Number: QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 20000 sets per month
  • Detail Information
  • Product Description

Detail Information

Filling Pressure: 5.6/4.2 MPa Discharge Time: ≤10s
Filling Density: ≤1250kg/m³ Drive Device Pressure: 6.0Mpa(20℃)
Pressure Of Adding Pressure Cylinder: 13.5Mpa Ambient Temperature: 0~50℃
Cylinder Volume: 90Ltr Power: DC24V/1A
High Light:

4.2MPa FM200 Piston Flow System


DC24V FM200 Piston Flow System

Product Description

Guangzhou manufacturers piston flow fm200 system


Fm200(hfc-227ea) is a kind of clean gas extinguishing agent with chemical extinguishing and physical extinguishing.It is colorless, tasteless, low toxicity, non-conductive, does not pollute the protected object.


The piston flow type heptafluoropropane fire suppression system, which is produced by our company, absorb the advanced technology of gas fire extinguishing research at home and abroad. It is high strength safety factor, strong work reliability, convenient operating and maintenance. At the same time, the system has automatic and manual driving mode. It relies on external driving force to push the agent farther in the effective fire-fighting time.

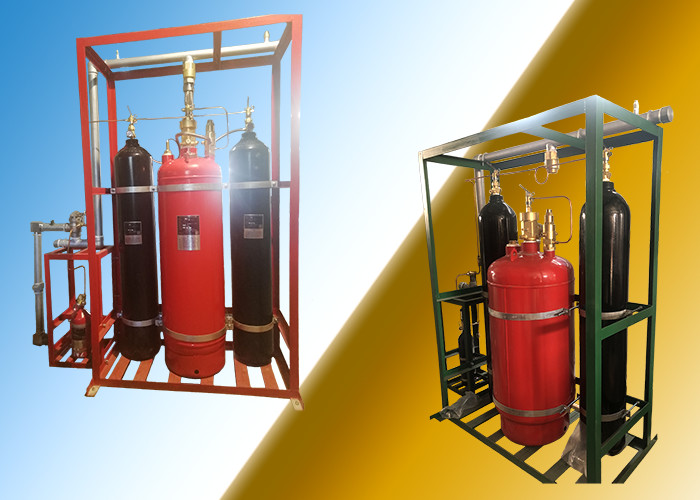

Non Conductive DC24V 1A 4.2MPa FM200 Piston Flow System 0




No. Name Specification
1 Device Model QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
2 Cylinder Volume 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
3 Filling Capacity of Gas 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg
4 Max Working Pressure 8Mpa, 5.3Mpa
5 Max protected area Single zone: 800m2
6 Max protected volume Single zone: 3600m3
7 Spraying Time ≤10s
8 Agent Filling Density ≤1250kg/m3
9 Power DC24V/1A
10 Pressure of Adding Pressure Cylinder 13.5Mpa
11 Pressure of Driving Device 6.0Mpa(20℃)
12 Condition of Reserving Room for Container temperature: 0~50℃


System Composition




This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.


Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.


These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.


                            Non Conductive DC24V 1A 4.2MPa FM200 Piston Flow System 1Non Conductive DC24V 1A 4.2MPa FM200 Piston Flow System 2



Competitive Advantage:


Proven Technology

Clean, leaves behind no residue

Safe for discharge into occupied spaces

Cost effective engineered system, providing maximum protection

Sustainable technology providing an environmentally-conscientious solution





Data centres

Server rooms

Comms rooms

Electrical distribution rooms

Control rooms

Museums & archives


Anechoic chambers

Marine vessels

Medical records storage


Power generation & power storage



Paint storage

Battery rooms

Large manufacturing complexes

Multi level sites

Clean rooms





We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


                                Non Conductive DC24V 1A 4.2MPa FM200 Piston Flow System 3


Company Introduction


Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher

(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.



Why Choose Us


• 5 years quality guarantee


• Xingjin is running in a high efficiency management system


• Advanced equipments & professional engineers to promise all products are quite Satisfactory.


• We provide 8×6 hrs technical support and service.




After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.


• We provide 8×6 hrs technical support and service.






• Q: Are you a manufacturer or a trading company?


A: We are a manufacturer.


• Q: Is the OEM order available?


A: Yes, produce in accordance with per client's requirement.


• Q: Where is your factory located?how can i visit there?


A: Our factory is located in Guangzhou, Guangdong province, China.


Very welcome you to come our factory.
