Hfc-227ea / FM200 Automatic Fire Extinguishing System Cabinet Type

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 1set system

Price: negotiation

Packaging Details: Plywood case,Paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card

Supply Ability: 3,00 set per month

Get Best Price
Product Details
High Light:

FM200 Automatic Fire Extinguishing System

,

Hfc-227ea Automatic Fire Extinguishing System

,

180L FM200 Cabinet System

Zone Management:
Single
Actuation:
Totally Automatic
Power:
DC24V/1.6A
Pattern Of Extinguishing:
Enclosed Flooding
General Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Standard Of Examination:
GB25972-2010
Capacity Of Agent:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Working Pressure:
2.5Mpa
Zone Management:
Single
Actuation:
Totally Automatic
Power:
DC24V/1.6A
Pattern Of Extinguishing:
Enclosed Flooding
General Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Standard Of Examination:
GB25972-2010
Capacity Of Agent:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Working Pressure:
2.5Mpa
Product Description

Guangzhou hfc-227ea /FM200 automatic fire extinguishing system cabinet type







Description:



    Cabinet FM200 fire suppression system is a preset and independent fire extinguishing system, without pipe network distribution. It is directly set at the protected area to put out the fire. Its features are easy installation, convenient to move, fast to action and beautiful appearance. The system is suitable for small fire protection areas, and for buildings which have been built but needs an additional fire extinguishing system.



Parameter:

NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5Mpa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2Mpa
8 Discharge pressure 5.6±0.28Mpa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start



Cabinet Size



Specification Size(mm) Volume(cbm) Net weight (kg)
GQQ40/2.5 500×450×1450 0.326 33
GQQ70/2.5 500×450×1450 0.326 43-50
GQQ90/2.5 500×450×1650 0.371 43-50(46)
GQQ100/2.5 500×450×1650 0.371 55-64(54)
GQQ120/2.5 550×550×1900 0.575 60-73(60)
GQQ150/2.5 550×550×1900 0.575 80
GQQ180/2.5 600×550×2150 0.71 80



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

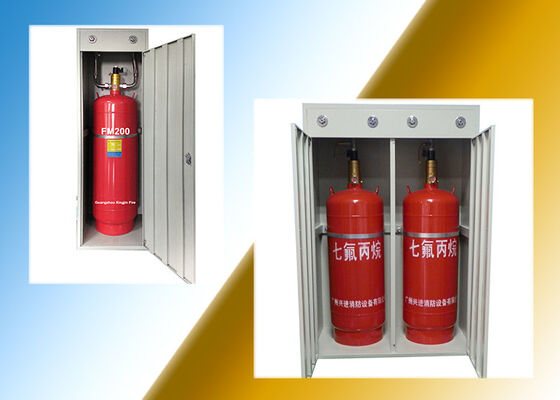

Hfc-227ea / FM200 Automatic Fire Extinguishing System Cabinet Type 0



Competitive Advantage:



    Cabinet fm200 system: management of big zone, simple integration, direct spraying effect in protection zone, efficient fire suppression.



    1. Effective firefighting in relatively small region

    2. Simple assembly of device without pipeline

    3. No extra space to store device





Compositions:



   The cabinet type fm200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.

   The cabinet type fm200 fire extinguishing device consists of fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle and the cabinet.





Working principles:



  This system uses the whole flooding way to put out the fire.



  A fire happens. A somke detector or a heat detector catches something different and sends a signal to the control panel. After receiving the signal, the control panel activates an alarm bell to tell people that there may be a fire and please escape from the building quickly. Only when receives both signal from the smoke and heat detector that the control panel will activate the fire suppression system.

   Hfc-227ea / FM200 Automatic Fire Extinguishing System Cabinet Type 1
