70L Single Cabinet Type FM200 Gas Fire Extinguisher for Server Room

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 1set system

Price: negotiation

Packaging Details: Plywood case,Paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card

Supply Ability: 3,00 set per month

Get Best Price
Product Details
High Light:

FM200 Gas Fire Extinguisher

,

70L Single Cabinet Gas Fire Extinguisher

,

Enclosed flooding FM200 Cabinet System

Zone Management:
Single
Actuation:
Totally Automatic
Power:
DC24V/1.6A
Pattern Of Extinguishing:
Enclosed Flooding
General Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Working Pressure:
2.5MPa
Standard Of Examination:
GB25972-2010
Zone Management:
Single
Actuation:
Totally Automatic
Power:
DC24V/1.6A
Pattern Of Extinguishing:
Enclosed Flooding
General Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Working Pressure:
2.5MPa
Standard Of Examination:
GB25972-2010
Product Description

70L Single Cabinet Type FM200 Gas Fire Extinguisher for Server Room





Parameter:



NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,120Ltr,150Ltr,180Ltr
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5MPa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2Mpa
8 Discharge pressure 5.6±0.28MPa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start





Cabinet Size



Specification Size(mm) Volume(cbm) Net weight (kg)
GQQ40/2.5 500×450×1450 0.326 33
GQQ70/2.5 500×450×1450 0.326 43-50
GQQ90/2.5 500×450×1650 0.371 43-50(46)
GQQ100/2.5 500×450×1650 0.371 55-64(54)
GQQ120/2.5 550×550×1900 0.575 60-73(60)
GQQ150/2.5 550×550×1900 0.575 80
GQQ180/2.5 600×550×2150 0.71 80







Description:



Cabinet type fm200 fire suppression system assemblys easily. A complete system is formed by two parts, the extinguishing device and eletrical elements. The extinguishing device is composed by the following:

1/ Fm200 cylinder

2/ Container valve

3/ Flexible hose

4/ Solenoid actuator

5/ Nozzle

6/ Cabinet





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Company Introduction





Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in firefighting equipment with clean agent HFC-227ea. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has completed and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All the staffs of Xingjin welcome everyone, no matter who from all directions and all industries to come here for visiting, guidance and business cooperation.



Our company specializes in all kinds of Heptafluoropropane firefighting systems, aerosol firefighting systems, and we possess an experienced research and development team who have more than 20 years work experiences in national firefighting career.





Working principles:



  This system uses the whole flooding way to put out the fire.



  A fire happens. A somke detector or a heat detector catches something different and sends a signal to the control panel. After receiving the signal, the control panel activates an alarm bell to tell people that there may be a fire and please escape from the building quickly. Only when receives both signal from the smoke and heat detector that the control panel will activate the fire suppression system.

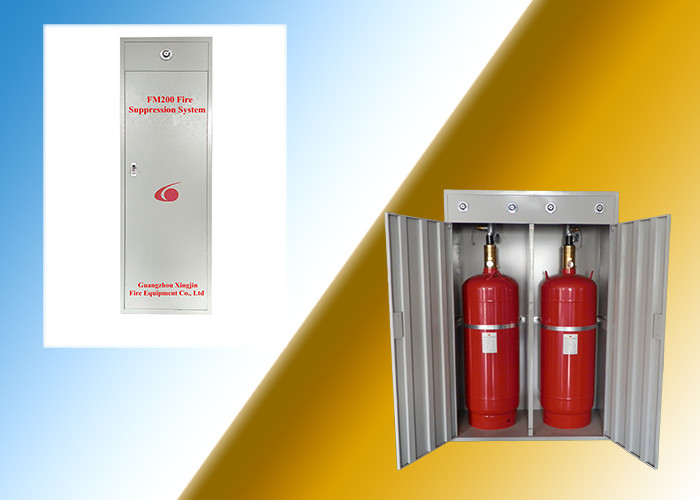

   70L Single Cabinet Type FM200 Gas Fire Extinguisher for Server Room 0
