xingjin Environmental Friendly FM200 Pipe Network System For Fire Fighting

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

Hfc-227ea Fire Fighting Equipment

,

Hfc-227ea Fm200 Fire Extinguishing System

,

Hfc-227ea fire fighting system equipment

Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225MPa
Structure:
No Pipeline
Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225MPa
Structure:
No Pipeline
Product Description

High quality fm200 fire extinguishing system hfc-227ea fire fighting equipment





Description



HFC-227ea(FM200) clean agent automatic fire suppression system is widely used in China and all over the world. Its most strong point is that this system meets the world’s requirement of environmental protection. It will not hurt the ozone layer even for 1% possibility. The other strong point is that such as the clean, odorless and colorless agent, the easy installation and so on, make it the best substitute for the halon 1301 in people’s mind.

Fm200 gas fire suppression system works more efficient when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. This system also distinguishes itself by the fast spraying time with less than 10s.



Application



As this system’s nature, it can be used in a lot of places and fits for many kinds of fire. The following kinds of places are just list for reference.



Telecommunication rooms

Data and paper archives

Switch gear rooms

Computer rooms

Military applications and cell sites

High-tech medical

Robotic equipment

Telecommunication centers

Textile manufacturing

Records and data archives



xingjin Environmental Friendly FM200 Pipe Network System For Fire Fighting 0

Parameter



NO. Specifications 4.2MPa system 5.6MPa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2MPa 5.6MPa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.6A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³



Advantages

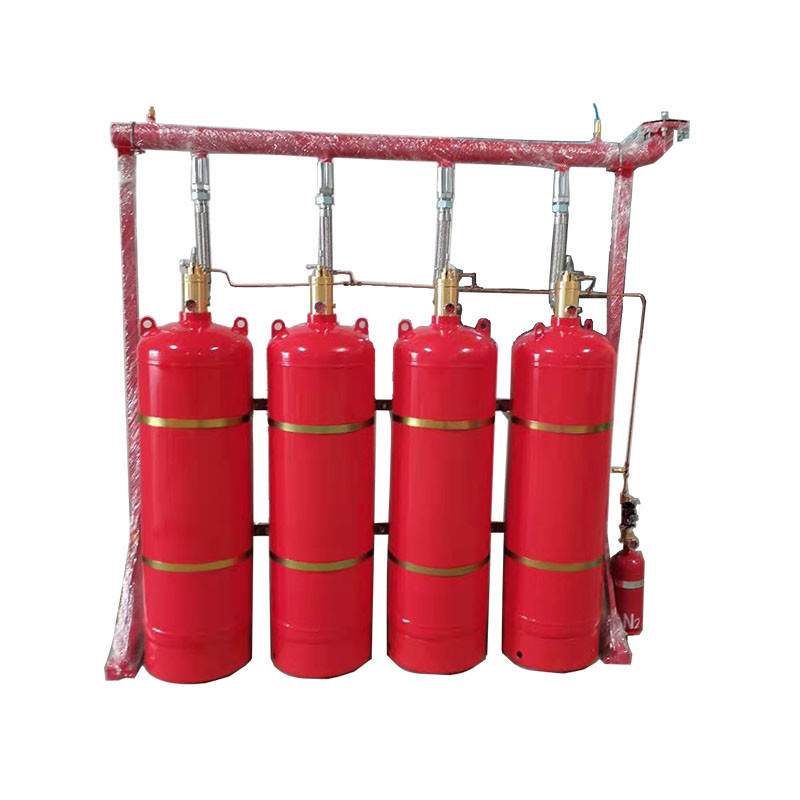

This system has a cylinder frame, whose shape is similar to a cabinet, so this system is called cabinet pipe network type fm200 fire suppression system. Besides, here is going to list out the advantages of this system.



1/ Place saving. This fire suppression system requires a separated room outside the protected zone, and will not occupy the places of the protected zone.



2/ Easy installation. A few components and an easy structure make the system install easily.



3/ Convenient transportation. Because of a few components and careful package, the transportation will be very convenient and safe.





Component



Actually, a complete fire suppression system has two parts, one is fire extinguishing part and the other is electrical elements part. Because there is a part focus on eletrical elements, so here will not talk about it anymore. The fire extinguishing part is list out as followings:

 1/ Fm200 cylinder

 2/ Container valve

 3/ Solenoid actuator

 4/ Flexible hose

 5/ Liquid flow check valve

 6/ Cylinder frame

 7/ Manifold

 8/ Safety valve

 9/ Pressure switch







Working procedure



The procedure is a little bit complicated, so let us show you the proper right process.



A fire happens → the smoke detector and heat detector send signal back to the control panel → the control panel activates the alarm bell to inform people of escaping the building → after a few seconds( customized), activates the fire suppression system to put out the fire.





After-Sale Service

-----------------------------------------------------------------------------------

• We have an efficient sales and after sales team to promise slove all client's question in time.

• We provide 8×6 hrs technical support and service.
