Home > products > FM200 Gas Suppression System > 100L/120L/150L/180L Fire Suppression Systems Fm200 Gas

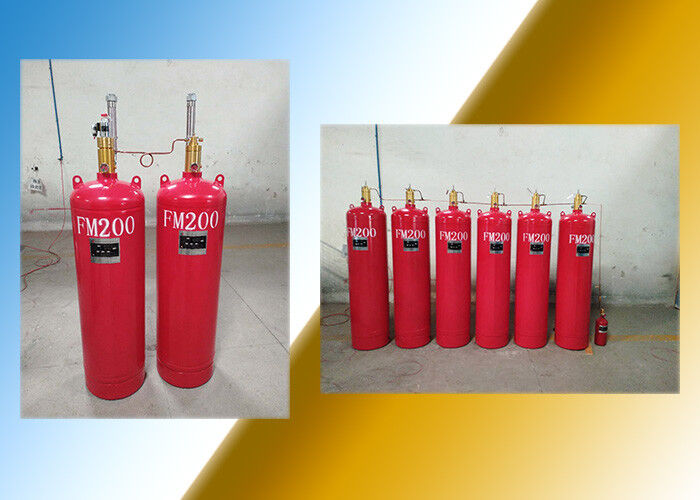

100L/120L/150L/180L Fire Suppression Systems Fm200 Gas

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC,ISO

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

Fire Suppression Systems Fm200

,

180L Fire Suppression Systems

,

Fm200 Gas Extinguishing System

Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.6A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.6A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Product Description

FM200 fire suppression system with competitive price



Description



FM200 FIRE SUPPRESSION SYSTEM



• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.



• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no secondary pollution gas.



• The ozone-depleting potential value is zero.



• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.



• It is currently an ideal substitute for the halon extinguishing agent.



• According to different filling pressure, different capacity, different extinguishing agent, different starting mode to assemble.



Parameters



NO. Specifications 4.2MPa system 5.6MPa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2MPa 5.6MPa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.6A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³



100L/120L/150L/180L Fire Suppression Systems Fm200 Gas 0



Components



The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.



The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.





Application



The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:



- Telecommunications and data processing

- Switch gear rooms

- Military applications and cell sites

- High-tech medical application

- Computer rooms

- Telecommunication centers

- Records and data archives

- Testing/imaging equipment

- Reference material

- Chemical laboratories



Certificate



Environmental Management System Certificate-ISO

Occupational Health and Safety Management System Certificate-ISO

Quality Management System Certificate-ISO

Certificate of China Compulsory Product Certification-CCC



Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
