IG100 Fire Suppression System In 2021

Product Details

Place of Origin: Guangzhou, China

Brand Name: xingjin

Certification: ISO, examination report

Model Number: DMP80/20, DMP80/30

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

IG100 Fire Suppression System

,

Enclosed Flooding IG100 Fire Suppression System

Cylinder Volume:
80liter
Capacity Of Gas:
20kg@200bar, 24.7kg@300bar
Pattern Of Extinguishing:
Enclosed Flooding
Fire Extinguishing Agent:
Nitrogen
Working Pressure:
200bar/300bar
Color:
Red
Cylinder Volume:
80liter
Capacity Of Gas:
20kg@200bar, 24.7kg@300bar
Pattern Of Extinguishing:
Enclosed Flooding
Fire Extinguishing Agent:
Nitrogen
Working Pressure:
200bar/300bar
Color:
Red
Product Description



IG100 Fire Suppression System


Description
IG100 fire extinguishing system uses 100% pressurized nitrogen, which accounts for 78% of the atmosphere, as the extinguishing agent. Its ozone depletion potential (ODP) and global warming potential (GWP) are zero. The atmospheric retention time is zero without any adverse effects on the environment. It fully integrates the design concept of the fire-extinguishing system in the new era, so that the product successfully has the function of environmental protection and efficient fire-fighting.


Characteristics of IG100 fire suppression system: protecting the ecological environment of the earth, safety and hygiene do not interfere with vision, no stain caused by extinguishing agent, durable of fire fighting effect. Nitrogen can be separated from the air and produced from a wide range of sources at a cheap charge.

Parameters





No.SpecificationTechnical Parameter
1Working Pressure200bar300bar
2Device ModelDMP80/20DMP80/30
3Capacity80Ltr
4Filling Capacity of Gas20kg24.7kg
5Outside Diameter of CylinderΦ279mmΦ267mm
6Height of Cylinder1610mm1770mm
7Spraying Time≤120s
8Filling Rate0.25kg/L0.31
9PowerDC24V/1.6A
10Nitrogen Pressure of Driving Device6.0±1.0Mpa(20℃)
11Condition of Reserving Roomtemperature: 0~50℃
12Max Working Pressure23.2Mpa36.3Mpa
13Min Working Pressure18Mpa27Mpa


IG100 Fire Suppression System In 2021 0

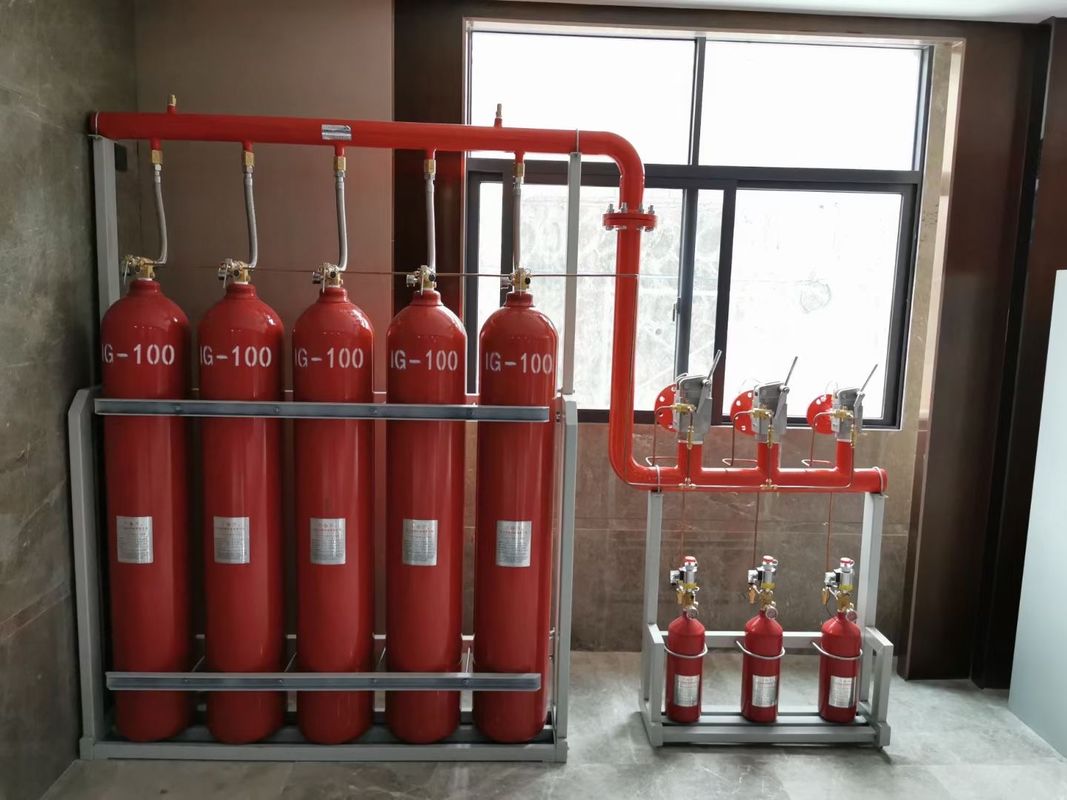

Components

Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.


Application

Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.



Advantages

Suitable for occupied areas
Electrically non – conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world

Certificate

Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Certificate of China Compulsory Product Certification


Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
IG100 Fire Suppression System In 2021 1
