Home > products > FM200 Cabinet System > CAL CMA FM200 Fire Suppression System 5.225Mpa No Pipeline Fire Fighting System

CAL CMA FM200 Fire Suppression System 5.225Mpa No Pipeline Fire Fighting System

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 1set system

Price: negotiation

Packaging Details: Plywood case,Paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card

Supply Ability: 3,00 set per month

Get Best Price
Product Details
High Light:

CAL FM200 Fire Suppression System

,

CMA FM200 Fire Suppression System

,

CMA fire fighting system

Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Product Description

 High-quality FM200 Fire Suppression System Without Pollution for Storage Room




Description:

• Cabinet automatic HFC-227ea/FM200(Heptafluoropropane) fire suppression system uses the solenoid valve as the starting mode with the elegant appearance design. The cylinder is placed in the cabinet. For different protection zone, according to the different volume zone to match different size cylinder, which can reduce the occupied area.

• According to different volume size, different extinguishing agent, different starting mode to assemble.

• Independent sets, flexible installation, good appearance.

• Without cylinder room, can install in the protection zone, handy and romovable.

• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing, automatic control and fire detection in one system which is the modern intelligent automatic fire extinguishing device.

• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no secondary pollution gas. It belongs to a kind of clean extinguishing agent.

• The ozone-depleting potential value is zero.

• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.

• It is currently an ideal substitute for the halon extinguishing agent.
                                CAL CMA FM200 Fire Suppression System 5.225Mpa No Pipeline Fire Fighting System 0

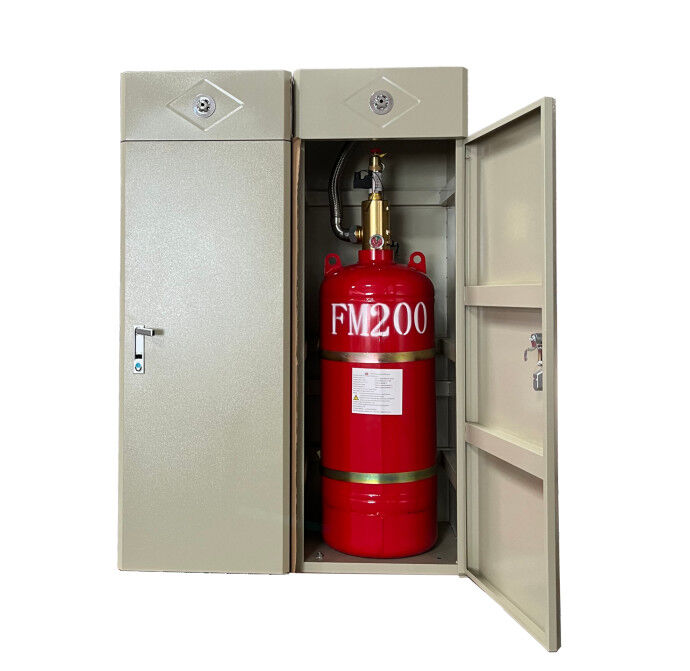

Compositions:

Cabinet type fm200 fire suppression system assemblys easily. A complete system is formed by two parts, the extinguishing device and eletrical elements.
The extinguishing device is composed by the following:
1/ Fm200 cylinder
2/ Container valve
3/ Flexible hose
4/ Solenoid actuator
5/ Nozzle
6/ Cabinet

                              CAL CMA FM200 Fire Suppression System 5.225Mpa No Pipeline Fire Fighting System 1


Applications:

   Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.


Parameter:


NO.SpecificationsParameters
1.Cylinder capacity40L,70L,90L,100L,120L,150L,180L
2.Filling pressure2.5Mpa
3.Filling density950kg/m³
4.Discharge time≤10s
5.Working temperature0℃~50℃
6.Max working pressure4.2Mpa
7.Discharge pressure5.6±0.28Mpa
8.Proportion of protected zone≤500m²
9.Volume of protected zone≤1600m³
10.ActuationAutomatic or manual start


Competitive Advantage:

Cabinet fm200 system: management of big zone, simple integration, direct spraying effect in protection zone, efficient fire suppression.

1. Effective firefighting in relatively small region

2. Simple assembly of device without pipeline

3. No extra space to store device


Compositions:

The cabinet type fm200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.

The cabinet type fm200 fire extinguishing device consists of fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle and the cabinet.


Packages:

We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
                   CAL CMA FM200 Fire Suppression System 5.225Mpa No Pipeline Fire Fighting System 2


Company Introduction:

Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in firefighting equipment with clean agent HFC-227ea. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has completed and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All the staffs of Xingjin welcome everyone, no matter who from all directions and all industries to come here for visiting, guidance and business cooperation.

Our company specializes in all kinds of Heptafluoropropane firefighting systems, aerosol firefighting systems, and we possess an experienced research and development team who have more than 20 years work experiences in national firefighting career.




After-Sale Service:

• We have an efficient sales and after sales team to promise solve all client's question in time.
• We provide 8×6 hrs technical support and service.



FAQ:



• Q: Are you a manufacturer or a trading company?



A: We are a manufacturer.





• Q: Is the OEM order available?



A: Yes, produce in accordance with per client's requirement.





• Q: Where is your factory located? Can I visit there?



A: Our factory is located in Guangzhou, Guangdong province, China.



Yes, we always welcome and wait for your visit.
