Home > products > FM200 Cabinet System > Convenient And Effective FM200 Cabinet System For Fast And Easy Fire Suppression

Convenient And Effective FM200 Cabinet System For Fast And Easy Fire Suppression

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 1set system

Price: negotiation

Packaging Details: Plywood case,Paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card

Supply Ability: 3,00 set per month

Get Best Price
Product Details
High Light:

Environment Friendly Fm200 Fire Suppression System

,

CCC Fm200 Fire Suppression System

,

CCC fm200 suppression system

Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Product Description

 Environment-Friendly Fm200 Fire Suppression System Without Pollution for Storage Room



Description:

Cabinet FM200 fire suppression system is a preset and independent fire extinguishing system, without pipe network distribution. It is directly set at the protected area to put out the fire. Its features are easy installation, convenient to move, fast to action and beautiful appearance. The system is suitable for small fire protection areas, and for buildings which have been built but needs an additional fire extinguishing system.



FM200 Fire Suppression System is a type of clean agent fire suppression system that uses the FM200 gas agent to quickly and effectively suppress fires in enclosed spaces. The system is designed to detect fires rapidly, minimizing damage to property and equipment, and reducing downtime and business interruption.

The FM200 Fire Suppression System comprises a storage container that holds the FM200 gas agent under high pressure, a set of distribution piping, and a discharge nozzle or head. Upon detection of a fire, the agent is automatically released through the discharge nozzle, flooding the affected area and quickly suppressing the fire by reducing the oxygen levels in the area.

FM200 gas is colorless, odorless, and electrically non-conductive, making it safe for use in areas that are sensitive to water or other types of fire suppression systems. The gas achieves extinguishing the fire by quickly absorbing heat and reducing the concentration of oxygen in the affected area, without leaving any residue or damaging the equipment or property.

The FM200 Fire Suppression System is particularly useful for protecting high-value assets such as computer rooms, data centers, museums, archives, and other critical facilities, where minimal downtime, minimal damage, and quick recovery after a fire are essential.

The FM200 Fire Suppression System is easy to install, reliable, and requires minimal maintenance. The system can also integrate with other fire suppression and alarm systems to provide comprehensive fire protection for buildings and critical facilities.

Overall, FM200 Fire Suppression System is an efficient and effective fire suppression solution that provides quick and reliable fire protection, preventing the fire from spreading, minimizing damage, and reducing downtime and business interruption.
                                Convenient And Effective FM200 Cabinet System For Fast And Easy Fire Suppression 0

Compositions:

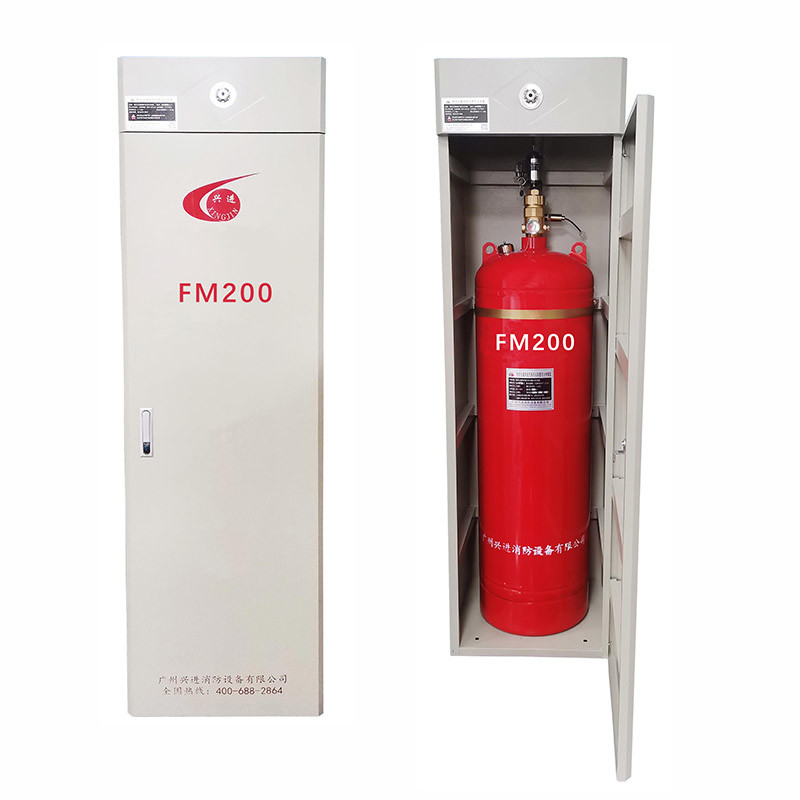

Actually, a complete one set system contains two parts: the extinguishing device(the whole composition is like the photo beside) and electrical elements.

One set cabinet type fm200 fire suppression device is formed by the following components: fm200 agents, a fm200 cylinder, a hoop, a cabinet, a container valve, a solenoid actuator, a flexible hose(high pressure hose), nozzle(s) and pressure switch.

                              Convenient And Effective FM200 Cabinet System For Fast And Easy Fire Suppression 1


Applications:

   Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.

Parameter:

NO. Specifications Parameters

1.

Cylinder capacity 40L,70L,90L,100L,120L,150L,180L
2. Filling pressure 2.5Mpa
3. Filling density 950kg/m³
4. Discharge time ≤10s
5. Working temperature 0℃~50℃
6. Max working pressure 4.2Mpa
7. Discharge pressure 5.6±0.28Mpa
8. Proportion of protected zone ≤500m²
9. Volume of protected zone ≤1600m³
10. Actuation Automatic or manual start



Competitive Advantage:


Cabinet fm200 fire suppression system has a large number of advantages, and here is going to have a brief explanation:



1/ Swift response. Since there is no long distance transportation of pipes, so fm200 gas can be directly discharged into protection zone. Meanwhile, its spraying time is less than 8 second. So it will save more time relatively when the fire happens.



2/ Convenient installation. Compared with pipe network system, cabinet system would be relatively simple to conduct installation. After installation of control panels and electric components, left work is just to connect it with one cabinet fire extinguishing device or devices. But one room should not be matched with more than 4 pieces of it because of the limitation of the output current of a control panel.



3/ Lower cost. Obviously, the price would be cheaper than pipe network type for the protection zone which just needs one single cylinder, because there is no need to consider about the expense of pipes and pipe fittings, also the cost of manpower for this part.


Compositions:

The cabinet type fm200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.

The cabinet type fm200 fire extinguishing device consists of fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check valve, nozzle and the cabinet.


Packages:

We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
                   Convenient And Effective FM200 Cabinet System For Fast And Easy Fire Suppression 2


Company Introduction:

Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in firefighting equipment with clean agent HFC-227ea. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has completed and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All the staffs of Xingjin welcome everyone, no matter who from all directions and all industries to come here for visiting, guidance and business cooperation.

Our company specializes in all kinds of Heptafluoropropane firefighting systems, aerosol firefighting systems, and we possess an experienced research and development team who have more than 20 years work experiences in national firefighting career.

After-Sale Service:

• We have an efficient sales and after sales team to promise solve all client's question in time.
• We provide 8×6 hrs technical support and service.



FAQ:



• Q: Are you a manufacturer or a trading company?



A: We are a manufacturer.





• Q: Is the OEM order available?



A: Yes, produce in accordance with per client's requirement.





• Q: Where is your factory located? Can I visit there?



A: Our factory is located in Guangzhou, Guangdong province, China.



Yes, we always welcome and wait for your visit.
