Product Details
Place of Origin: China
Brand Name: Xingjin / OEM
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Cylinder Volume: |
40L, 70L, 90L, 100L, 120L, 150L, 180L |
Capacity Of Gas: |
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |
Pattern Of Extinguishing: |
Enclosed Flooding |
Agent: |
Hfc-227ea (FM200) |
Working Pressure: |
4.2MPa / 5.6MPa |
Color: |
Red |
Discharge Time: |
≤10s |
Power: |
DC24V/1.5A |
Starting Mode: |
Automatic, Electrical Manual, Mechanical Emergency Manual |
Product Name: |
Fm200 Fire Suppression System |
Cylinder Volume: |
40L, 70L, 90L, 100L, 120L, 150L, 180L |
Capacity Of Gas: |
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |
Pattern Of Extinguishing: |
Enclosed Flooding |
Agent: |
Hfc-227ea (FM200) |
Working Pressure: |
4.2MPa / 5.6MPa |
Color: |
Red |
Discharge Time: |
≤10s |
Power: |
DC24V/1.5A |
Starting Mode: |
Automatic, Electrical Manual, Mechanical Emergency Manual |
Product Name: |
Fm200 Fire Suppression System |
Non Corrosive Fm200 Fire Suppression System Without Pollution for Museum
Description
Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system. The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.
This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.
Parameters
NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
3 | Filling pressure | 4.2Mpa | 5.6Mpa |
4 | Max filling rate | 0.95kg/L | 1.08kg/L |
5 | Discharge time | ≤10s | |
6 | Power | DC24V/1.5A | |
7 | Nitrogen driving device | 6.0±1.0Mpa | |
8 | Storage surroundings | Temperature:-10~50℃ Relative humidity:≤97% |
|
9 | Proportion | ≤800m² | |
10 | Volume | ≤3600m³ |
Components
The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.
The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

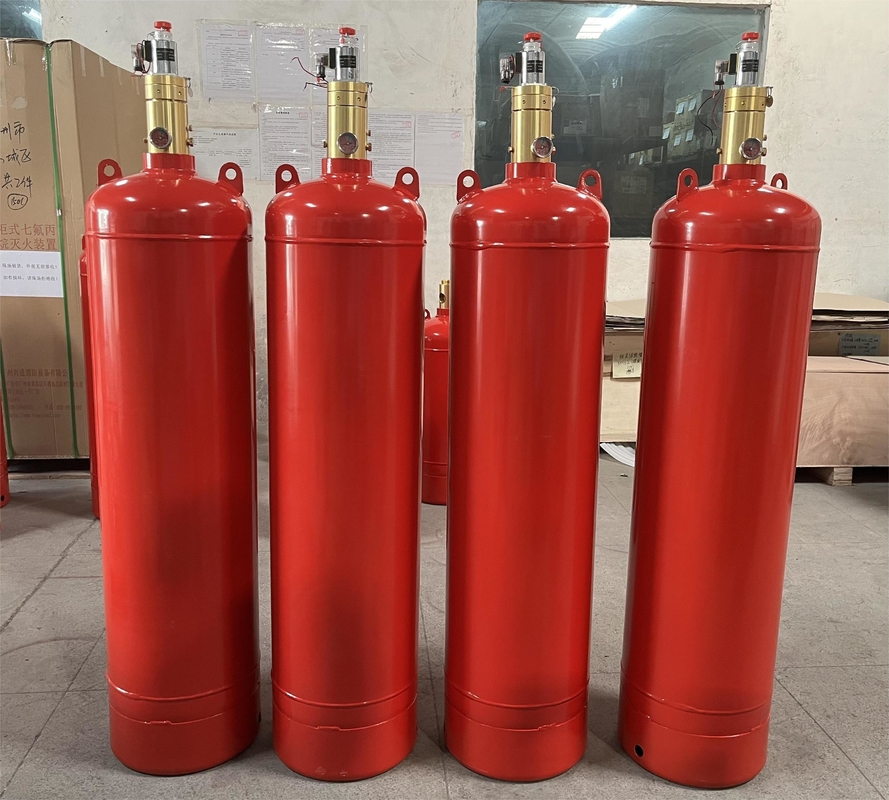

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
Application
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Packages
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in fire suppression system. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All Xingjin staffs welcome everyone from all directions and all industries to come here for visit, guidance and business cooperation.
Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
