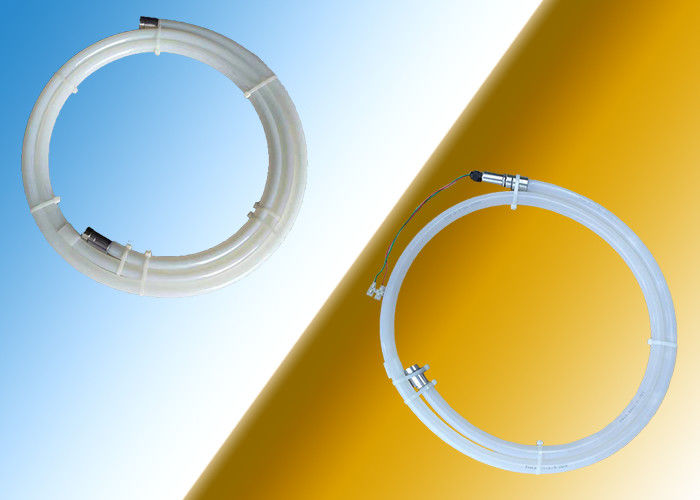

Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE

Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N

Payment & Shipping Terms

Minimum Order Quantity: 100 sets

Price: negotiation

Packaging Details: Plywood case, carton or as requirement

Delivery Time: 10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

0.5 Cubic Meter Fire Suppression Tube

,

Car Engine Fire Detection Tube

,

Hfc227ea Fire Suppression Tube

Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea / Novec1230
Color:
White
Length:
200cm, 300cm, 400cm, 500cm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent:
500g±5g; 750g±5g; 1000g±10g; 1250g±10g
Blasting Temperature:
110℃±10℃
Type:
Automatic Fire Suppression Tube
Agent:
Hfc227ea / Novec1230
Color:
White
Length:
200cm, 300cm, 400cm, 500cm
Diameter Of The Tube:
18mm
Coverage:
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent:
500g±5g; 750g±5g; 1000g±10g; 1250g±10g
Blasting Temperature:
110℃±10℃
Product Description

Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter



Automatic fire suppression tube for car engine



Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter 0






Description:

Designed to automatically suppress fires in small enclosed areas. During a fire, the heat degrades will continue to rise and it will melt the storage tube which contains the extinguishing agent under pressure. The sensitive tube is made of special plastic with stainless fittings on either end. When meet the fire, the tube will be melted, then it will form a hole as a “nozzle”, allowing the extinguishing agent to put out the fire. The storage tube is filled with FM200/HFC-227ea or Novec1230 as extinguishing agent, both of them are extremely effective, clean and people-safe extinguishing medium. It is suitable for class A, B, C, D and E of fires. Ideal for electric cupboards, data cupboards, switchboards, etc. It can be installed by anyone and thus no training is required for installation. The extinguishing agent discharges as a liquid, disperses in the form of a gas and leaves no residue after extinguishing. There are no clean-up costs. The agent does not conduct electricity, corrode or cause thermal shock damage.

Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter 1



Technical Specification:



Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage (cubic meter)

Working temperature(℃) Blasting temperature(℃)
XJ200H/N Hfc-227ea/
Novec 1230
500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±5 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10



Application:

The Tube Type Automatic Fire Systems are used to protect the relatively enclosed space, including but not limited to:



1) Engine Compartments of Boats and Yachts.



2) Engine Compartments of All On-Road Vehicles and Off-Road Vehicles: Car, Van, Bus, Mini Bus, Truck, Rally Car, Mining Machine or Construction Machine, etc.



3)Electric Panel, Switch Board, Sever Panel, .Control Box, etc.



Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter 2







Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter 3

Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher

(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.

Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter 4

FAQ



1) Where can you use this Tube Automatic Fire Suppression System?

Vehicle's engine room, electrical panel, server room, electrical control cabinet, etc.



2) Are your company a manufacturer or trading company?

---We are a professional Manufacturer of automatic fire suppression systems and fire extinguishers. We have our own factory to produce the fire fighting equipments.



3) Can you print our logo on products?

---Yes, no problem.We also support OEM.
