90L 13.5Mpa FM200 Fire Suppression System Environmentally Friendly DC24V/1A

Product Details:
Place of Origin: Guangdong
Brand Name: Xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMQ5.6/90W-XJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 20000 sets per month
  • Detail Information
  • Product Description

Detail Information

Filling Pressure: 5.6 Mpa Discharge Time: ≤10s
Filling Density: ≤1250kg/m³ Drive Device Pressure: 6.0Mpa(20℃)
Pressure Of Adding Pressure Cylinder: 13.5Mpa Ambient Temperature: 0~50℃
Cylinder Volume: 90Ltr Power: DC24V/1A
High Light:

13.5Mpa Fire Suppression System

,

DC24V FM200 Fire Suppression System

,

90L FM200 Fire Suppression System

Product Description

90L 13.5Mpa FM200 Fire Suppression System Environmentally Friendly DC24V/1A





Description of Fire Suppression System



With a conventional stored pressure FM-200 system, the design of some systems could be very challenging due to the distance between the position where the FM-200 container would be remotely stored and the hazard to be protected. The main cause of this problem is generally the amount of nitrogen pressure available in a conventional stored pressure FM-200 container. However, FM-200 Piston Flow Clean Agent Fire Suppression System can discharge FM-200 agent within 10 seconds over long distances by providing additional nitrogen from support cylinder and preventing rapid decline of pressure within the FM-200 container head space. This new technology is designed to make possible longer distances, between the storage container room and the areas that require fire protection. The system is intended for total flooding application covering multiple and long-distance protected areas. The system enables design of up to 122m (400ft) piping for protected areas and is a highly configurable system which can save significant equipment costs by installing a single system to help protect against multiple hazards. The system is designed to provide a reliable, fast acting, clean agent solution that is safe for use in occupied spaces. The system is environmentally friendly with zero ozone depletion potential (ODP).



Specification of Fire Suppression System



No. Name Specification
1 Device Model QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
2 Cylinder Volume 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr
3 Filling Capacity of Gas 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg
4 Max Working Pressure 8Mpa, 5.3Mpa
5 Max protected area Single zone: 800m2
6 Max protected volume Single zone: 3600m3
7 Spraying Time ≤10s
8 Agent Filling Density ≤1250kg/m3
9 Power DC24V/1A
10 Pressure of Adding Pressure Cylinder 13.5Mpa
11 Pressure of Driving Device 6.0Mpa(20℃)
12 Condition of Reserving Room for Container temperature: 0~50℃




System Composition



-----------------------------------------------------------------------------------



This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.

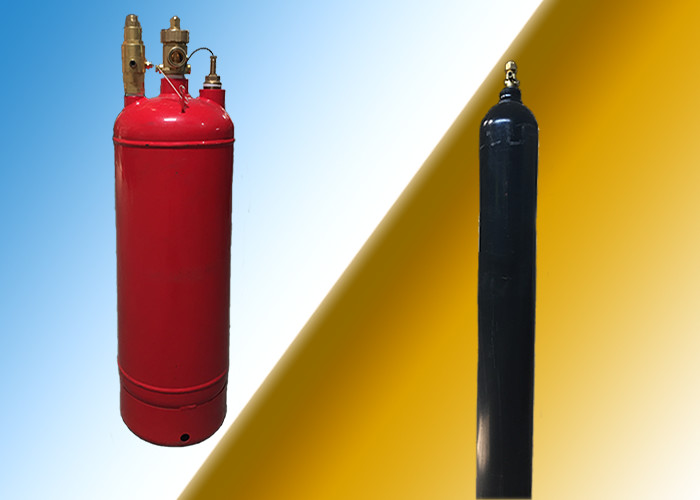

                            90L 13.5Mpa FM200 Fire Suppression System Environmentally Friendly DC24V/1A 0





Application:



It is widely used in computer rooms, power distribution rooms, telecommunications centers, libraries, archives, treasure chest and underground engineering for the class A, B, C fire and electrical equipment fire. But it is not applicable to potassium, sodium, magnesium, uranium and active metal chloride and digestive fiber fire places.



90L 13.5Mpa FM200 Fire Suppression System Environmentally Friendly DC24V/1A 1



Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.





Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher

(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.





FAQ

• Q: Are you a manufacturer or a trading company?



A: We are a manufacturer.



• Q: Is the OEM order available?



A: Yes, produce in accordance with per client's requirement.



• Q: Where is your factory located?how can i visit there?



A: Our factory is located in Guangzhou, Guangdong province, China.



Very welcome you to come our factory.
