5.6MPa Automatic Fm200 Fire Suppression System Without Pollution 150L 180L

Product Details

Place of Origin: China

Brand Name: Xingjin / OEM

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Service:
OEM, ODM
Quality:
100% Tested
Port:
Guangzhou
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Service:
OEM, ODM
Quality:
100% Tested
Port:
Guangzhou
Product Description

5.6MPa Automatic Fm200 Fire Suppression System Without Pollution 150L 180L


Description of Fire Suppression System


The main advantage of FM200 fire suppression, is the small amount of agent required to suppress a fire. This means fewer cylinders, therefore less wasted space for storage of FM200 cylinders.

FM200 systems reach extinguishing levels in 10 seconds or less, stopping ordinary combustible, electrical, and flammable liquid fires before they cause significant damage. FM200 extinguishes the fire quickly, which means less damage, lower repair costs. Like any other fire suppression system, FM200 systems are designed with an extra margin of safety for people. Refilling FM200 is simple and cost effective, therefore, it also means less downtime and disruption to your business.

FM200 is classed as a clean agent which means that it is safe to use within occupied spaces. The safety of FM200 fire suppression environments is proven in over a decade of real-world experience and validated by extensive scientific studies. FM200 systems take up less storage space than most other fire suppressants.

In addition to the fire protection benefits of using FM200, the environment will benefit as well. FM200 fire suppressant does not deplete stratospheric ozone, and has minimal impact on the environment relative to the impact a catastrophic fire would have. FM200 fire suppression is a solution that is already working in more than 100 thousand applications, in more than 70 nations around the world.



Parameters
of Fire Suppression System



NO. Specifications 4.2Mpa system 5.6Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr 70Ltr,90Ltr,120Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 QMP70/5.6, QMP90/5.6, QMP120/5.6
3 Filling pressure 4.2Mpa 5.6Mpa
4 Max filling rate 0.95kg/L 1.08kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³









Components
of Fire Suppression System

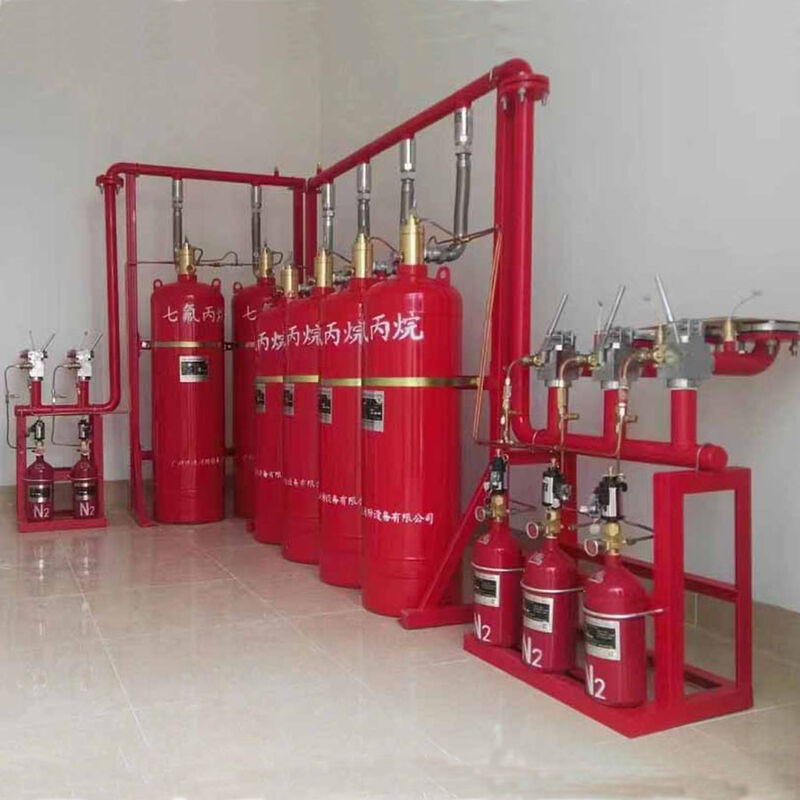

1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent

2. Electrical parts: smoke detector, heat detector, bell etc.

3. Pipe fittings: conduit, connector, elbow, flange etc.



Application of Fire Suppression System

As its name says, the single zone pipe network fm200 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network fm200 fire suppression system can be used to protect some large and also significant places, such as the followings:



- Computer rooms



- Telecommunication center



- Facilities underground



- Offshore oil extraction



- Library



- Data and paper archives



- Valuable article storage



- Power generator storage room





5.6MPa Automatic Fm200 Fire Suppression System Without Pollution 150L 180L 0

5.6MPa Automatic Fm200 Fire Suppression System Without Pollution 150L 180L 1




                                                                                               5.6MPa Automatic Fm200 Fire Suppression System Without Pollution 150L 180L 2





Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                                                                                            5.6MPa Automatic Fm200 Fire Suppression System Without Pollution 150L 180L 3







After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
