Guangzhou Xingjin Fire Equipment Co.,Ltd.

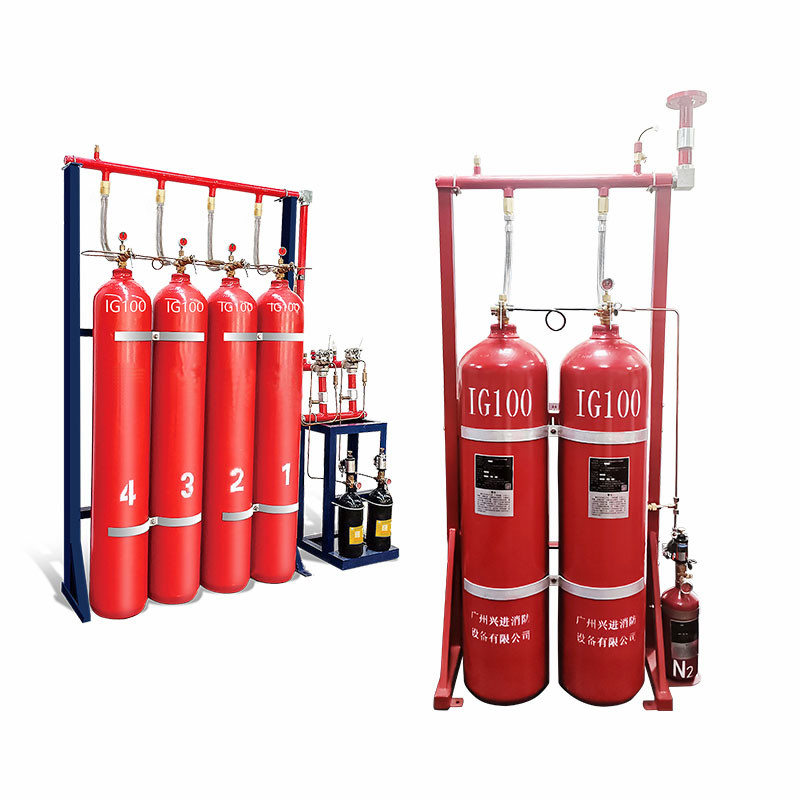

IG100 Intert Gas Fire Suppression System With 80L 90L Capacity And Pipe Network Type

Product Details:
Place of Origin: China
Brand Name: Xingjin
Model Number: QMH15/80, QMH15/90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 80L, 90L Capacity: 14.25kg, 16.04kg
Pattern Of Extinguishing: Enclosed Flooding Agent: IG100 (100% Pressurized Nitrogen)
Working Prussure: 15MPa Color: Red
High Light:

IG100 Inter Gas Fire Suppression System


90L Intert Gas Fire Suppression System


80L Fire Suppression System

Product Description

80L 90L IG100 Nitrogen Fire Suppression Device Pipe Network Type Red


Description of Fire extinguishing agent


In fire suppression systems, the fire extinguishing agent IG100 is frequently employed. Due to the fact that it does not leave behind any residue or harm to the environment or equipment after usage, it is also referred to as a "clean agent" or "inert gas."


Pure nitrogen gas, a colorless, odorless, and non-toxic gas that is naturally present in the air we breathe, makes up IG100. The essential fuel for a fire, oxygen, is replaced when IG100 is introduced into a fire. This causes the oxygen concentration to drop quickly, ultimately putting out the fire.


Data centers, archives, museums, and other institutions with delicate electronic equipment or priceless assets that could be harmed by water or other extinguishing agents are just a few examples of places where IG100 is perfect for usage. These locations also make good candidates for IG100. It can also be used in places where there is a high risk of fire, such power stations, oil and gas facilities, and chemical processing plants.


Overall, IG100 is a fire suppression tool that is secure, efficient, and kind to the environment. It can put out fires fast and effectively without endangering people, property, or the environment.



Parameters of Fire Suppression System


No. Specification Technical Parameter
1 Working Pressure 15Mpa
2 Device Model QMD15/80 QMD15/90
3 Capacity 80Ltr 90Ltr
4 Filling Capacity of Gas 14.25kg 16.04kg
5 Outside Diameter of Cylinder Φ279mm Φ325mm
6 Height of Cylinder 1578+73mm 1345+60mm
7 Spraying Time ≤10s
8 Max Filling Rate 0.178kg/L
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20)
11 Condition of Reserving Room for Container temperature: 0~50
12 Max Working Pressure 17.2Mpa
13 Min Working Pressure 13.6Mpa




Application of Fire Suppression System


Fire suppression systems are designed to detect, contain, and extinguish fires in buildings, vehicles, and other enclosed spaces. Here are some common applications of fire suppression systems:

  • Commercial buildings, including offices, retail establishments, and warehouses, frequently have fire suppression systems installed. These systems are made to spot and put out fires in the early stages, stopping them from spreading and inflicting significant harm on equipment and property.
  • Data centers: Because they house vital IT infrastructure, data centers are particularly vulnerable to fire-related catastrophes. To prevent damage to delicate electronic equipment, fire suppression systems with clean agents, like FM-200 or Novec 1230, are frequently used in data centers.
  • Industrial Facilities: Businesses including chemical factories, refineries, and manufacturing plants work with combustible hazardous materials. Specialized extinguishing agents are used by fire suppression systems created for specific settings to put out flames involving combustible liquids and gases.
  • Applications in the Marine Environment: Fire suppression systems are frequently placed aboard ships and boats to prevent fires that may start as a result of electrical problems, engine problems, or other dangers. In enclosed areas like engine rooms, these systems make use of specialized chemicals that are safe to utilize.
  • Residential Homes: For homeowners who want to safeguard their families and property against fires, residential fire suppression systems are becoming more and more popular. These systems are often made to find and put out fires as soon as they start, preventing them from doing significant damage.

In general, fire suppression systems are crucial for preventing the disastrous impacts of fires on people and property. To make sure they'll work in an emergency, they should be installed and maintained by trained experts. To achieve the highest level of safety, fire suppression systems should be utilized in conjunction with fire preventive strategies including routine fire drills, smoke detectors, and fire extinguishers.





Over other fire suppression agents, the IG100 fire extinguishing agent provides a number of benefits, including:

  • Non-Toxic: Because IG100 is non-toxic, breathing little amounts of it is safe for people. This is a crucial factor to take into account in situations where there will likely be people present during or right after a fire suppression operation.

  • Environmentally beneficial: Because IG100 does not contribute to ozone depletion or global warming, it is an environmentally beneficial fire control agent. Additionally, it doesn't pollute the environment by leaving behind any waste products or contaminated water.
  • Fast and Efficient: By lowering the oxygen content of the air, IG100, a fast-acting fire suppression chemical, may quickly put out fires. As a result, the heat and flames quickly dissipate, perhaps limiting future harm.

  • Safe for Sensitive Equipment: Because it doesn't leave any residue or harm the equipment or assets, IG100 is the perfect fire suppression agent for spaces containing sensitive electronic equipment or priceless goods.
  • Cost-Effective: IG100 is a long-term fire suppression agent that saves money because it doesn't need to be cleaned up after a fire suppression event or have its equipment replaced. Additionally, compared to other fire suppression agents, it takes up less room in storage, which helps save storage and shipping costs.

Overall, IG100 is an excellent option for many applications since it is a safe, efficient, and environmentally friendly fire suppression agent that can offer a number of benefits over other kinds of fire suppression agents.



IG100 Intert Gas Fire Suppression System With 80L 90L Capacity And Pipe Network Type 0





We always place it into a wooden case after first packing it with polyfoam. At times, we will create a pallet for the goods in order to satisfy clients or meet safety requirements.


IG100 Intert Gas Fire Suppression System With 80L 90L Capacity And Pipe Network Type 1





Mimic Diagram



Single/Multiple cylinder(s) for multiple zone



IG100 Intert Gas Fire Suppression System With 80L 90L Capacity And Pipe Network Type 2


























                                                                      Single/Multiple cylinder(s) for one zone


IG100 Intert Gas Fire Suppression System With 80L 90L Capacity And Pipe Network Type 3


























After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.

• We provide 8×6 hrs technical support and service.
