Guangzhou Xingjin Fire Equipment Co.,Ltd.

Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L

Product Details:
Place of Origin: China
Brand Name: Xingjin / OEM
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 40L, 70L, 90L, 100L, 120L, 150L, 180L Capacity Of Gas: 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing: Enclosed Flooding Agent: Hfc-227ea (FM200)
Working Pressure: 4.2MPa / 5.6MPa Color: Red
Discharge Time: ≤10s Power: DC24V/1.5A
Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual Product Name: Fm200 Fire Suppression System
High Light:

Red FM200 Fire Suppression System


FArchive M200 Fire Suppression System

Product Description

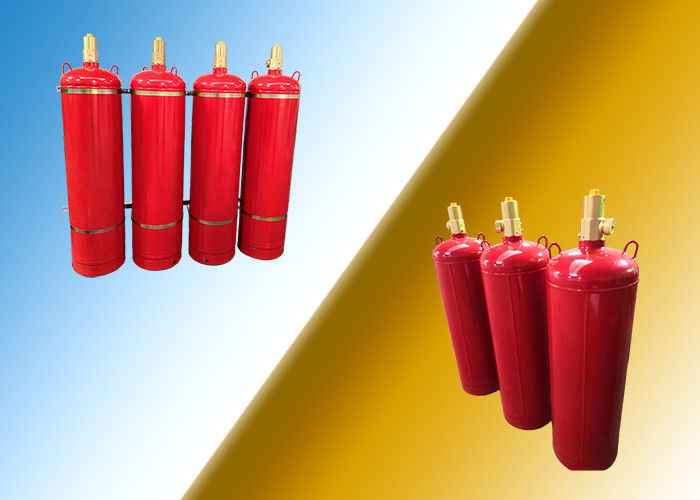

Red FM200 Fire Suppression System with 4.2Mpa System for Archive 40L

The ability to be used in a variety of protected settings is the FM200 fire extinguishing system's main advantage. Either a very small or very big protection zone can be focused using a single cylinder device.
2.FM200 is a non-toxic cleaning product that leaves no residue and is odorless, colorless, and scentless. It has undergone a safety evaluation and has proven to be effective in preserving both personal and material security.
3. The FM200 fire extinguishing system has a two-minute delay feature that allows people enough time to safely evacuate the area before all the chemicals are released in a 10-second burst.

4.In addition to the advantages connected to fire protection, using FM200 has advantages for the environment. The FM200 fire extinguisher agent doesn't consume stratospheric ozone, hence it has less of an impact on the environment than catastrophic fires. The FM200 fire extinguishing solution has been utilized in over 100000 applications in more than 70 countries.




NO. Specifications 4.2Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2
3 Filling pressure 4.2Mpa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³


Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 0




1.FM200 storage container: The FM200 gas is kept in this pressurized container. The container may be constructed from a variety of materials, including steel or composites, and it is fitted with safety features that guard against excessive pressure.

2.FM200 release valve: When a fire is detected, this valve releases the FM200 gas into the enclosed space. A fire detection system can automatically or manually open the valve.

3. Distribution plumbing: From the storage container to the safe location, the FM200 gas is distributed by this piping system. To ensure efficient fire suppression, the gas is distributed evenly throughout the pipework.

4.Nozzles: These tools are used to disperse FM200 gas into the enclosed space. To ensure that the gas is delivered uniformly and effectively to put out the fire, the nozzle design is essential.

5.Fire detection system: This system is used to find out if there is a fire in the region that has been declared safe. The system can be set up to automatically open the FM200 release valve when it detects smoke, heat, or flame.

6. Control panel: The control panel controls the release of the FM200 gas and is used to monitor the system. The panel can be utilized for system testing and maintenance operations.



Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 1

Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 2

The single zone pipe network fm200 fire suppression system is appropriate for a single protected zone with a volume and proportion of less than 3600 cubic meters and 800 square meters, respectively, as its name implies. The single zone pipe network fm200 fire suppression system can be utilized to defend several large and important areas, such as the following, because of its characteristics and principles of putting off fire.


-IT server rooms: Because these spaces house vital computer servers and other electronic equipment, FM200 fire suppression systems are an excellent choice for them. The clean agent gas may put out fires without causing damage and is safe for electronic devices.



-Telecommunications facilities: Large facilities that store telecommunications equipment frequently need fire suppression systems. System FM200 can defend against fires that can damage crucial communication infrastructure.


-Museums and art galleries: These establishments frequently house priceless and irreplaceable treasures that need to be safeguarded. Fires can be put out by FM200 devices without endangering the artifacts with water or other damages.


-Data centers are crucial to the running of many businesses and organizations because they contain enormous volumes of vital data. System FM200 can defend against fires that can result in data loss or disruption.


-Control rooms: To monitor and manage complicated processes, control rooms are frequently utilized in industrial and manufacturing environments. Fires that could obstruct these operations and cause substantial damage are protected by FM200 devices.


Medical and research facilities: These establishments frequently include delicate equipment and supplies that require fire protection. Fires can be put out with FM200 systems without endangering the materials or equipment.




                                                                                               Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 3



















Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 4




















Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 5



















We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.


                                                                                                            Red FM200 Fire Suppression System With 4.2Mpa System For Archive 40L 6




After-Sale Service

• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.



Q1: Are you a trading company or a manufacturing?

A1: Our company is a producer.


Q2: Do OEM items exist?

A2: Your own artwork and design are appreciated.


Q3: Where is your factory located? Can I go there?

A3: Shilou, Panyu, Guangzhou, Guangdong, China is where our factory is located.

Yes, of course. We always look forward to seeing you.


Q4: How can I get to your plant, question 4?
A4: You can take a taxi or take the subway to get here because of how easily it can be reached. If arriving by subway, you must take the line 4 and alight at the Shiqi station. Take the No. 126 bus out of the station after that, and get off at Yuexi station.
