Guangzhou Xingjin Fire Equipment Co.,Ltd.

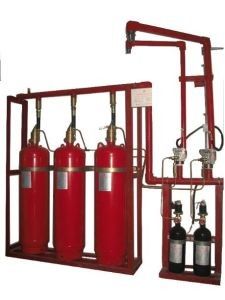

FM200 Fire Suppression System 40L 4.2Mpa Archive Protection

Product Details:
Place of Origin: China
Brand Name: Xingjin / OEM
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
  • Detail Information
  • Product Description

Detail Information

Cylinder Volume: 40L, 70L, 90L, 100L, 120L, 150L, 180L Capacity Of Gas: 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing: Enclosed Flooding Agent: Hfc-227ea (FM200)
Working Pressure: 4.2MPa / 5.6MPa Color: Red
Discharge Time: ≤10s Power: DC24V/1.5A
Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual Product Name: Fm200 Fire Suppression System
High Light:

Archive Protection FM200 Fire Suppression System

,

F40L M200 Fire Suppression System

Product Description

Red FM200 Fire Suppression System with 4.2Mpa System for Archive 40L

Description


1. The adaptive use of the FM200 fire extinguishing system in covered places is its main advantage. The protection zone can be focused into either a very small or very vast area using a single cylinder device.
2. FM200 is an odorless, colorless, and residue-free cleaning product that is non-toxic. Its safety has been examined, and it can successfully protect both people's lives and property.
3. Before all the chemicals are discharged in a 10-second burst, the FM200 fire extinguishing system has a two-minute delay mechanism that allows people enough time to safely evacuate the area.

4.In addition to the advantages connected to fire protection, using FM200 has advantages for the environment. The FM200 fire extinguisher agent doesn't consume stratospheric ozone, hence it has less of an impact on the environment than catastrophic fires. The FM200 fire extinguishing solution has been utilized in over 100000 applications in more than 70 countries.




Parameters



NO. Specifications 4.2Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2
3 Filling pressure 4.2Mpa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³




FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 0





Components




1.FM200 storage container: The FM200 gas is kept in this pressurized container. The container may be constructed from a variety of materials, including steel or composites, and it is fitted with safety features that guard against excessive pressure.

2.FM200 release valve: When a fire is detected, this valve releases the FM200 gas into the enclosed space. A fire detection system can automatically or manually open the valve.

3. Distribution plumbing: From the storage container to the safe location, the FM200 gas is distributed by this piping system. To ensure efficient fire suppression, the gas is distributed evenly throughout the pipework.

4.Nozzles: These tools are used to disperse FM200 gas into the enclosed space. To ensure that the gas is delivered uniformly and effectively to put out the fire, the nozzle design is essential.

5.Fire detection system: This system is used to find out if there is a fire in the region that has been declared safe. The system can be set up to automatically open the FM200 release valve when it detects smoke, heat, or flame.

6. Control panel: The control panel controls the release of the FM200 gas and is used to monitor the system. The panel can be utilized for system testing and maintenance operations.





FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 1

FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 2

Application

The single zone pipe network fm200 fire suppression system is appropriate for a single protected zone with a volume and proportion of less than 3600 cubic meters and 800 square meters, respectively, as its name implies. The single zone pipe network fm200 fire suppression system can be utilized to defend several large and important areas, such as the following, because of its characteristics and principles of putting off fire.



-IT server rooms: Because these spaces house vital computer servers and other electronic equipment, FM200 fire suppression systems are an excellent choice for them. The clean agent gas may put out fires without causing damage and is safe for electronic devices.



-Data centers: Data centers house vast amounts of critical data, making them essential to the operation of many businesses and organizations. FM200 systems can protect against fires that could cause data loss or downtime.



-Control rooms: Control rooms are often used in industrial and manufacturing settings to monitor and control complex processes. FM200 systems can protect against fires that could disrupt these processes and cause significant damage.



Medical and research facilities: Medical and research facilities often contain sensitive equipment and materials that must be protected from fire. FM200 systems can suppress fires without causing damage to the equipment or materials.



                                                                                               FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 3





































FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 4







































FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 5

































Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                                                                                            FM200 Fire Suppression System 40L 4.2Mpa Archive Protection 6







After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.




FAQ



Q1: Are you a manufacturer or a trading company?

A1: We are a manufacturer.



Q2: Is OEM products available?

A2: Yes, we welcome your own design and drawing.



Q3: Where is your factory? Can I visit it?

A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.

Of course yes. We always welcome and wait for your visit.



Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
