Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | xingjin |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set system |
| Price: | negotiation |
| Packaging Details: | Plywood case,Paper carton |
| Delivery Time: | 10-15 working days after payment or receipt of L/C |
| Payment Terms: | L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card |
| Supply Ability: | 3,00 set per month |
|
Detail Information |
|||
| Weight: | 80kg | Capacity Of Cylinder: | 150L |
|---|---|---|---|
| Dimension(mm): | 550*550*1900 | Volume Of Cabinet: | 575L |
| Agent: | Fm200(htc-227ea Or Heptafluoropropane) | Type Of Fm200 System: | Cabinet Type |
| High Light: | FM200 Fire Suppression Cabinet,Industrial FM200 Fire Suppression Cabinet |
||
Product Description

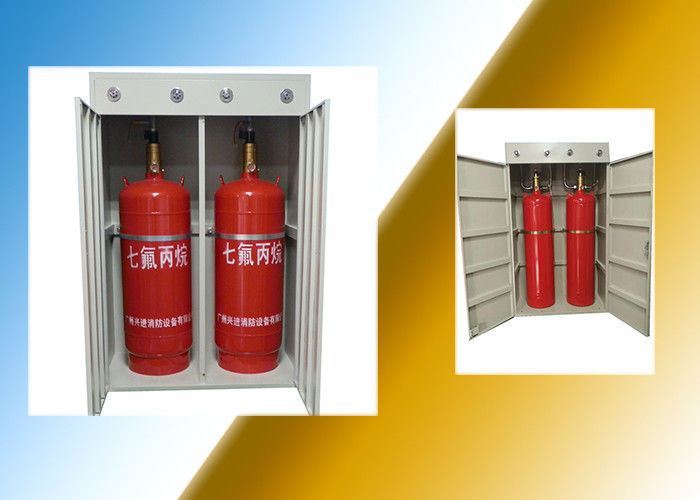

Industrial Heptafluoropropane Fire Suppression Fm200 Cabinet Type
Parameter:
| No. | specification | Technical Parameter |
| 1 | Filling pressure | 2.5Mpa |
| 2 | Relief pressure | 5.0±0.225Mpa |
| 3 | Spraying time | ≤10s |
| 4 | Working temperature | 0～50℃ |
| 5 | Power | DC24V/1.6A |
| 6 | max working pressure | 4.2Mpa |
Description:
A type of colorless, tasteless, non-corrosive, electricity-insulating gas that leaves no residue or pollution after being extinguished is known as FM200 (htc-227ea). And it has 0 ODP. It is an environmentally friendly gas that can be used to put out fires. Additionally, this functionality allows it to be used in specific locations where electrical fires are prone to occur.
The entire system can be automatically activated when extinguishing equipment and electrical accessories are used together. It can automatically initiate the extinguishing device using a solenoid actuator after monitoring the situation in the protective area with detectors. So the system as a whole can fully automate. Therefore, it may be avoided that no one notices the fire when it occurs and it also saves a lot of money on hiring someone to oversee the protective area.
Applications:
A clean room, anechoic chamber, emergency power facilities, flammable liquid storage space, a data processing center, telecommunications facilities, process control, pricey medical equipment, industrial equipment, a library, a museum, and an art gallery, among other things.
The areas that are more likely to catch fire include the ship's engine room, cargo hold, rolling and printing equipment, oil switches, oil-immersed transformers, melt impregnating tanks, and equipment used in the production of cement from pulverized coal.
Compositions:
1. Mechanical components, such as a high-pressure hose, cabinet, and a cylinder with a container valve.
2. Electrical components, such as a bell, heat detector, and smoke detector.
Competitive advantage:
1. Successful fire suppression in a relatively small area
2. Easy device assembly without a pipeline
3. Insufficient room to keep the device
4. Easy installation and convenient transit
Attentions:
Users should first evaluate the volume and percentage of the protected zone because the cabinet type fire suppression system can only protect up to 1600 cubic meters of volume and 500 square meters of proportion.
Even though installing this system is simple, if there are any issues, please call us to resolve them instead of touching anything.
