Guangzhou Xingjin Fire Equipment Co.,Ltd.

FM200/HFC-227ea Fire Suppression Tube w/ 500g Agent 0.5m3

Product Details:
Place of Origin: China
Brand Name: Xingjin
Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE
Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: Plywood case, carton or as requirement
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Type: Automatic Fire Suppression Tube Agent: Hfc227ea / Novec1230
Color: White Length: 200cm, 300cm, 400cm, 500cm
Diameter Of The Tube: 18mm Coverage: 0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter
Amount Of Agent: 500g±5g; 750g±5g; 1000g±10g; 1250g±10g Blasting Temperature: 110℃±10℃
High Light:

FM200/HFC-227ea Fire Suppression Tube


0.5m3 Fire Suppression Tube

Product Description

Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter

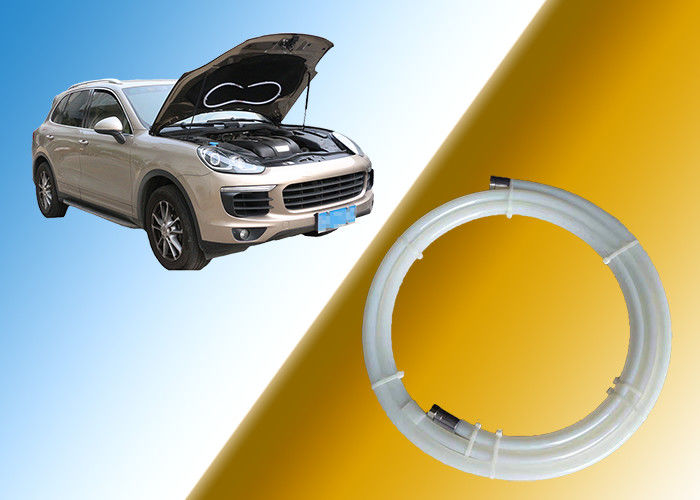

Automatic fire suppression tube for car engine


FM200/HFC-227ea Fire Suppression Tube w/ 500g Agent 0.5m3 0




Designed to mechanically extinguish fires in small, enclosed places. When a fire starts, the temperature rises, melting the extinguishing agent-containing storage tube under pressure. A one-of-a-kind plastic sensitive tube with stainless fittings on both ends. When the tube comes into touch with the fire, it melts, forming a hole that acts as a "nozzle" and allows the extinguishing chemical to put out the fire. To fill the storage tube, two extremely powerful, sanitary, and human-safe extinguishing agents, FM200/HFC-227ea or Novec1230, are utilized. It is appropriate for flames of the classes A, B, C, D, and E. This product is ideal for switchboards, data cabinets, and electric cabinets.Because it may be installed by anyone, installation training is not required. The extinguishing agent discharges as a liquid, disperses as a gas, and leaves no residue after extinguishing. There are no cleanup fees. The material does not corrode, conduct electricity, or cause heat stress.



Technical Specification:


Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage (cubic meter)

Working temperature(℃) Blasting temperature(℃)
XJ200H/N Hfc-227ea/
Novec 1230
500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±5 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10



Tube Type Automatic Fire Systems safeguard the relatively confined space, including but not limited to:


1) Engine chambers on boats and yachts.


2) Engine compartments in all on- and off-road vehicles, such as automobiles, vans, buses, minibuses, trucks, rally cars, mining or construction equipment, and so on.


Control boxes, switchboards, server panels, and power panels are all examples of third-party equipment.



FM200/HFC-227ea Fire Suppression Tube w/ 500g Agent 0.5m3 1




FM200/HFC-227ea Fire Suppression Tube w/ 500g Agent 0.5m3 2

Company Introduction


Guangzhou Xingjin Fire Equipment Co., Ltd., a corporation that plays an important role in communication between China and the rest of the world, is located in this city, which has good transportation and a beautiful environment. We are a manufacturer, and we focus on the research and development of HFC-227ea (FM200) products with the assistance of our experienced and trained employees, which includes the program design team, skilled installation team, quality detecting team, and after-sale service team. Many of our well-known FM200 products, such as the automated FM200 fire extinguisher (ceiling mounted style), the cabinet type FM200 fire suppression system, the pipe network FM200 fire suppression system, the fire detecting tube suppression system, and the automatic fire suppression tube, are in use today. Clients in China prefer our company because of the high-quality items and services we offer, as well as our solid reputation.




1) Where can you use this Tube Automatic Fire Suppression System?

Vehicle's engine room, electrical panel, server room, electrical control cabinet, etc.


2) Are your company a manufacturer or trading company?

---We are a professional Manufacturer of automatic fire suppression systems and fire extinguishers. We have our own factory to produce the fire fighting equipments.


3) Can you print our logo on products?

---Yes, no problem.We also support OEM.
