Home > products > FM200 Cabinet System > 2.5MPa FM200 Fire Extinguishing Suppression Agent System With Solenoid Actuator Container Valve

2.5MPa FM200 Fire Extinguishing Suppression Agent System With Solenoid Actuator Container Valve

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 1set system

Price: negotiation

Packaging Details: Plywood case,Paper carton

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card

Supply Ability: 300 sets per month

Get Best Price
Product Details
High Light:

FM200 Fire Extinguishing Suppression Agent System

,

2.5MPa Fire Extinguishing Suppression Agent System

,

Enclosed Flooding FM200 Cabinet System

Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Working Pressure:
2.5MPa
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Working Pressure:
2.5MPa
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Product Description



100L FM200 Cabinet Extinguisher Single Cylinder with Two Nozzles




Description:

Extinguishing the fire with speed, efficiency, and perseverance.

The FM200 pure gas automatic fire extinguishing system can totally extinguish a fire in less than 10 seconds. When tested according to reserve design fire extinguishing concentration, clean gas fire extinguishing agent FM200 generally has a low concentration, only 9%. The FM200 clean fire extinguishing agent is a liquid that may be kept and quickly converted into a gas that is strongly driven to extinguish fires.

The FM200 clean gas automated fire extinguishing system is ideal for protecting documents, valuable equipment, electrical and magnetic media, collections, and documents. The protected things are not affected, do not leave a residue after a fire, and do not impair the routine operations of the protected regions.

2.5MPa FM200 Fire Extinguishing Suppression Agent System With Solenoid Actuator Container Valve 0
































Compositions:

An extinguishing mechanism and electrical components make up the entirety of a one-set system (the composition is shown in the illustration below).

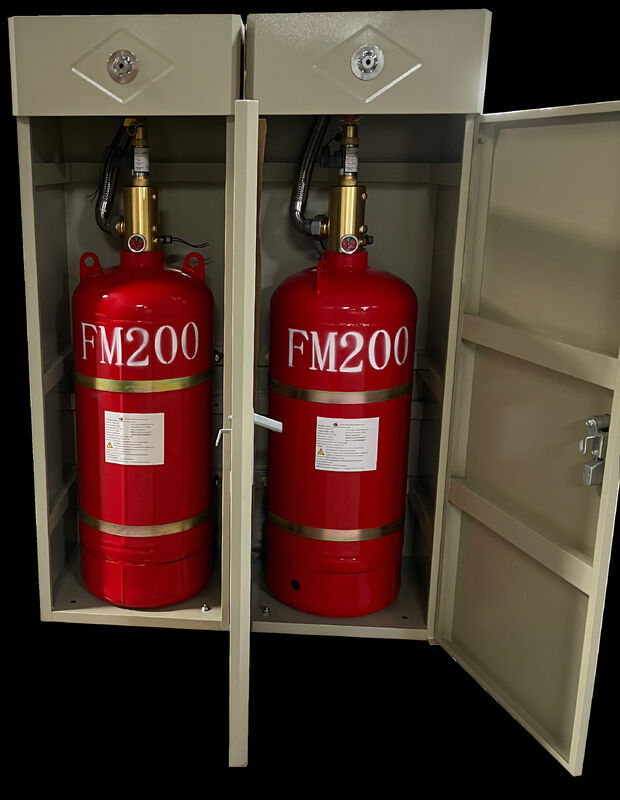

One set of the cabinet type FM200 fire suppression equipment consists of FM200 agents, an FM200 cylinder, a hoop, a cabinet, a container valve, a solenoid actuator, a flexible hose (high pressure hose), nozzle(s), and pressure switch.



2.5MPa FM200 Fire Extinguishing Suppression Agent System With Solenoid Actuator Container Valve 1


















































Applications:


A clean room, anechoic chamber, emergency power facilities, flammable liquid storage space, a data processing center, telecommunications facilities, process control, pricey medical equipment, industrial equipment, a library, a museum, and an art gallery, among other things.

The areas where fires are more likely to occur, such as the engine room, cargo hold, rolling mills, printing presses, oil switches, oil-immersed transformers, and production lines spraying paint, among other places.


2.5MPa FM200 Fire Extinguishing Suppression Agent System With Solenoid Actuator Container Valve 2


Parameter:


NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5MPa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2MPa
8 Discharge pressure 5.6±0.28MPa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start



Competitive Advantage:


There are several benefits to using a cabinet fire suppression system, and the following is a brief explanation of some of them:

1. Quick reaction. Fm200 gas can be released directly into the protection zone because there is no need for long-distance pipe transmission. Its spraying cycle lasts less than 8 seconds. Therefore, when the fire occurs, it will take less time overall.

2. Easy installation. Comparatively speaking, installing a cabinet system would be easier than a pipe network system. The only remaining task after installing control panels and electrical components is connecting it to one or more cabinet fire extinguishing systems. But due to the control panel's output current limitation, no more than 4 pieces of it should be placed in a single room.

3. Lower price. For the protective zone that only requires a single cylinder, the cost would undoubtedly be lower than for a pipe network type because there would be no need to factor in the cost of pipes, pipe fittings, or labor for this component.
