FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time

Product Details

Place of Origin: China

Brand Name: Xingjin / OEM

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

10s Discharge FM200 Fire Suppression System

,

F40L M200 Fire Suppression System

Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.5A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Cylinder Volume:
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity Of Gas:
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Pattern Of Extinguishing:
Enclosed Flooding
Agent:
Hfc-227ea (FM200)
Working Pressure:
4.2MPa / 5.6MPa
Color:
Red
Discharge Time:
≤10s
Power:
DC24V/1.5A
Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency Manual
Product Name:
Fm200 Fire Suppression System
Product Description

Red FM200 Fire Suppression System with 4.2Mpa System for Archive 40L

Description


1. The FM200 fire extinguisher system's adaptability in safe conditions is its primary advantage. A very small or very big protection zone can be concentrated using a single cylinder device.

2. FM200 is an odorless, colorless, scentless, non-toxic cleaning agent. There is no residue left behind. It has been subjected to a safety evaluation and proven to be effective in upholding both material and individual security.

3. The FM200 fire extinguishing system includes a two-minute delay mechanism that gives individuals enough time to safely evacuate the area before all the chemicals are released in a 10-second burst.

4.Using FM200 has environmental benefits in addition to the benefits related to fire protection. Since the FM200 fire extinguisher agent doesn't destroy stratospheric ozone, it has a smaller environmental impact than large-scale fires. Over 100000 applications in more than 70 countries have used the FM200 fire extinguishing solution.





Parameters



NO. Specifications 4.2Mpa system
1 Capacity 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr
2 Device model QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2
3 Filling pressure 4.2Mpa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Power DC24V/1.5A
7 Nitrogen driving device 6.0±1.0Mpa
8 Storage surroundings Temperature:-10~50℃
Relative humidity:≤97%
9 Proportion ≤800m²
10 Volume ≤3600m³




FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 0

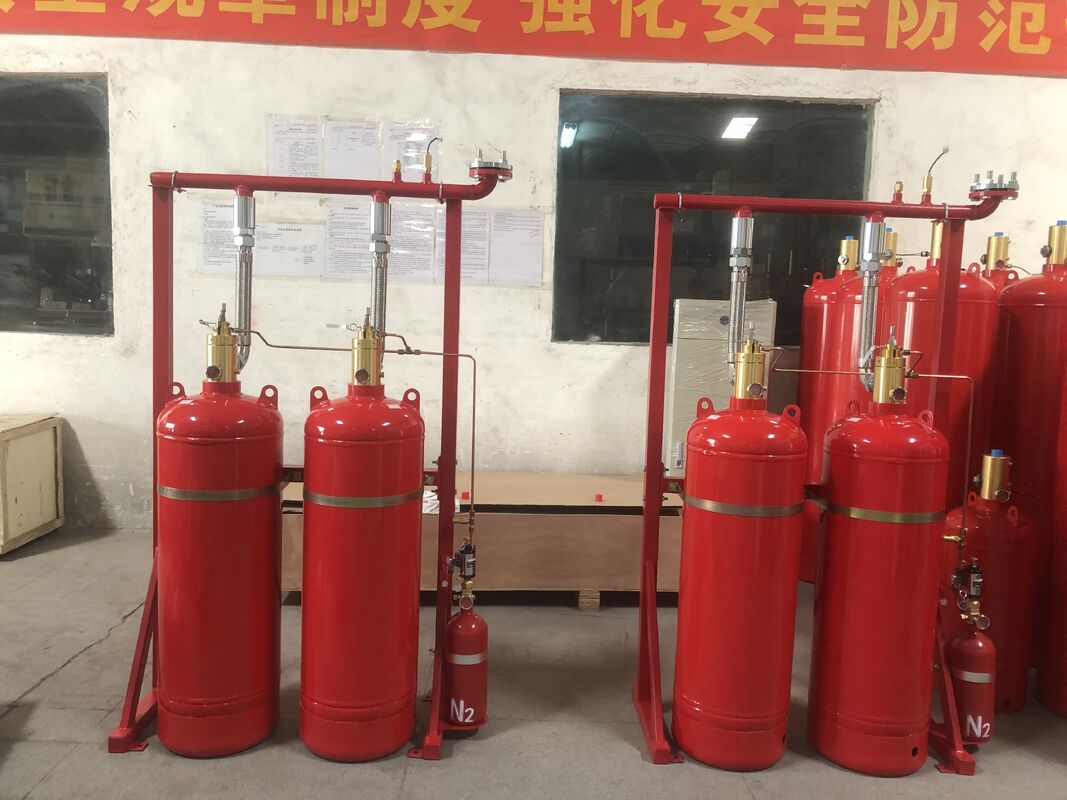

Components




1. FM200 storage container: FM200 gas is kept in this pressurized container for storage. The container has safety features that guard against too much pressure. It can be constructed from a variety of materials, including composites or steel.



2.FM200 release valve: When a fire is detected, this valve allows the FM200 gas to be released into the enclosed space. A fire detection system may automatically open the valve or a user may manually do so.



3. The FM200 gas is delivered by this pipe system from the storage container to the safe site. The gas is delivered uniformly throughout the piping to provide effective fire suppression.



4.Nozzles: The confined space is filled with FM200 gas using these tools. To make sure that the gas is given equitably and effectively to put out the fire, the nozzle design is essential.



5.Fire detection system: This approach is used to detect whether there is a fire in a location that has been given the all-clear. It is possible to program the FM200 release valve to open automatically in the presence of flame, heat, or smoke.



6. Control panel: The control panel is used to monitor the system and regulate the release of the FM200 gas. The panel can be utilized for system testing and maintenance operations.

FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 1

FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 2

Application

This approach is used to detect whether there is a fire in a location that has been given the all-clear. It is possible to program the FM200 release valve to open automatically in the presence of flame, heat, or smoke.

The control panel is used to monitor the system and regulate the release of the FM200 gas. The panel can be utilized for system testing and maintenance operations.



-IT server rooms: Because these spaces house vital computer servers and other electronic equipment, FM200 fire suppression systems are an excellent choice for them. The clean agent gas may put out fires without causing damage and is safe for electronic devices.



-Telecommunications facilities: Large facilities that store telecommunications equipment frequently need fire suppression systems. System FM200 can defend against fires that can damage crucial communication infrastructure.



-Museums and art galleries: These establishments frequently house priceless and irreplaceable treasures that need to be safeguarded. Fires can be put out by FM200 devices without endangering the artifacts with water or other damages.



-Data centers are crucial to the running of many businesses and organizations because they contain enormous volumes of vital data. System FM200 can defend against fires that can result in data loss or disruption.



-Control rooms: To monitor and manage complicated processes, control rooms are frequently utilized in industrial and manufacturing environments. Fires that could obstruct these operations and cause substantial damage are protected by FM200 devices.



Medical and research facilities: These establishments frequently include delicate equipment and supplies that require fire protection. Fires can be put out with FM200 systems without endangering the materials or equipment.







                                                                                               FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 3





































FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 4







































FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 5

































Packages



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.



                                                                                                            FM200 Fire Suppression System For Archive 40L 4.2Mpa 10s Discharge Time 6







After-Sale Service


• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
