Automatic Fm200 Fire Suppression System 120L Enclosed Flooding

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1
Model Number: 70L/90L/100L/120L/180L
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case or box
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal, Credit card
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Power: DC24V/1.6A Working Temperature: -10~50℃
Storage Pressure: 4.2Mpa Pattern Of Extinguishing: Enclosed Flooding
Capacity Of Cylinder: 120L Actuation: Automatic Or Manual
High Light:

Automatic Fm200 Fire Suppression System


120L Fm200 Fire Suppression System


Enclosed Flooding Fm200 Fire Suppression System

Product Description

4.2Mpa Fm200 Fire Suppression System with 120l Model

Automatic Fm200 Fire Suppression System Factory Direct, Quality Assurance, Best Price With Low Maintenance





No. specification Technical Parameter
1 Filling pressure 4.2Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m2 volume:max single-zone is 3600m3
3 Spraying time ≤10s
4 Filling density ≤950kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa
9 min working pressure 4.2Mpa




    FM200 is a clean agent fire suppression system that uses a gaseous extinguishing agent, FM200, to put out fires quickly and effectively. The system is designed to protect critical areas with sensitive equipment or materials where water-based fire suppression systems would cause damage.

FM200 is a colorless, odorless, and electrically non-conductive gas that leaves no residue after discharge. When a fire is detected, the FM200 fire suppression system releases FM200 gas into the affected area, extinguishing the fire by reducing the oxygen concentration to a level where combustion can no longer occur. The FM200 gas is distributed through the piping system and nozzles to the protected area, which is designed to provide fast and effective fire suppression with minimal disruption to the protected area, occupants, and assets.

FM200 fire suppression systems have several advantages over other fire suppression systems. One of the main advantages is that FM200 suppresses fires quickly, often extinguishing the fire before significant damage occurs. Additionally, FM200 is safe for use in occupied spaces and leaves no residue, reducing cleanup and maintenance requirements.

The FM200 system is also environmentally friendly, with a low global warming potential and no ozone depletion potential, making it a sustainable solution for organizations that prioritize environmental responsibility. The system is effective in suppressing fires in areas protecting high-value assets such as data centers, telecom facilities, museums, archives, and other facilities.

Overall, FM200 fire suppression systems are reliable, efficient, and cost-effective solutions for fire protection in areas with critical assets or sensitive equipment or materials. The FM200 system minimizes downtime and helps protect the environment while providing fast and effective fire suppression for optimal protection of critical applications.




    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

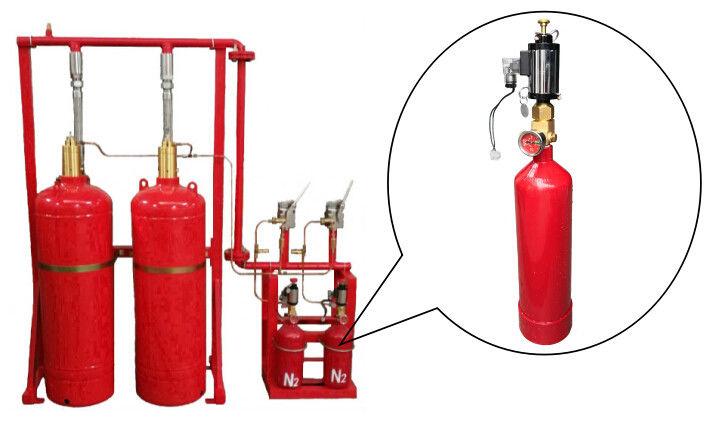

1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent


2. Electrical parts: smoke detector, heat detector, bell etc.


3. Pipe fittings: conduit, connector, elbow, flange etc.


    Here attached below is complete composition of whole system,


                       Automatic Fm200 Fire Suppression System 120L Enclosed Flooding 0
