Product Details
Place of Origin: Guangzhou, China
Brand Name: Guangzhou Xingjin Fire Equipment Co.,Ltd.
Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1
Model Number: 40L/70L/90L/100L/120L/150L/180L
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Storage Temperature: |
0°F To 50°F |
Operating Pressure: |
4.2MPa TO 5.6MPa |
Relative Humidity: |
≤97% |
Agent: |
HFC-227ea FM200 |
Discharge Time: |
≤10s |
Type: |
Gaseous Fire Suppression System |
Storage Pressure: |
175 PSIG |
Actuation: |
Automatic Or Manual |
Storage Temperature: |
0°F To 50°F |
Operating Pressure: |
4.2MPa TO 5.6MPa |
Relative Humidity: |
≤97% |
Agent: |
HFC-227ea FM200 |
Discharge Time: |
≤10s |
Type: |
Gaseous Fire Suppression System |
Storage Pressure: |
175 PSIG |
Actuation: |
Automatic Or Manual |
The FM200 Fire Suppression System is an efficient and effective solution for fire extinguishing. With its fire rating of Class A, B, C, and K Fires, it is suitable for a wide range of applications. With a discharge density of 3.0 to 5.0 lbs/1000 ft³, it effectively extinguishes fires in 10 to 30 seconds. With its design pressure of 175 PSIG, it offers superior performance and reliability. The FM200 Fire Suppression System is designed for reliable operation in a wide range of temperatures, from -40°F to 120°F. It is also designed for easy installation and maintenance. The FM200 Fire Suppression System is a safe and reliable solution for protecting your property and personnel from fire.

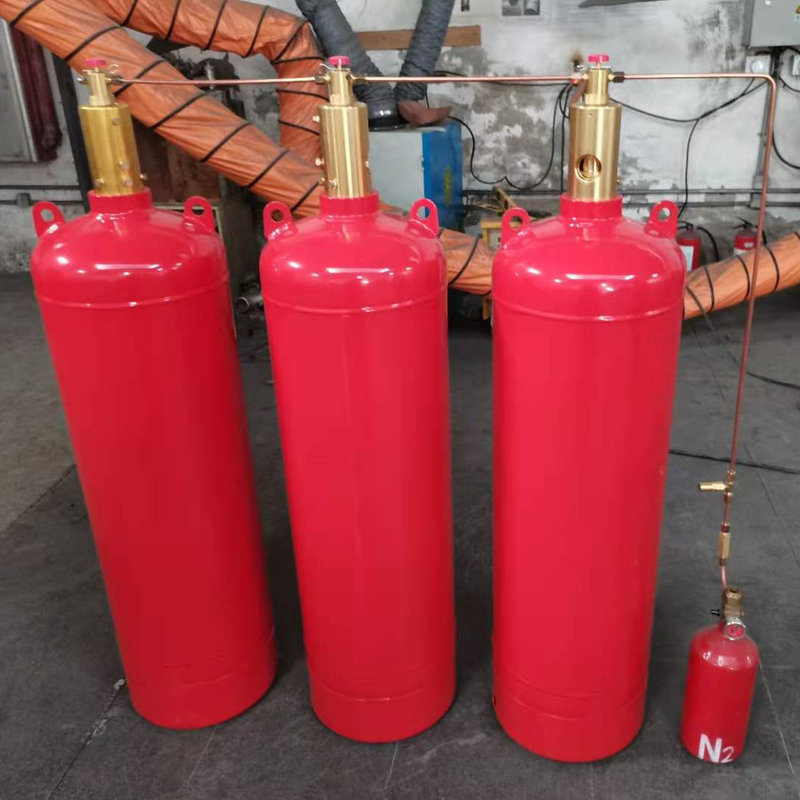

FM200 automatic fire suppression device is a type of automatic fire suppression system that uses HFC-227ea gas as an extinguishing agent to suppress fires in enclosed spaces. The system is designed to protect sensitive and critical equipment and facilities that cannot risk water damage, including data centers, telecommunication rooms, archives, museums, and medical facilities.| NO. | Specifications | 4.2Mpa system | 5.6Mpa system |
| 1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2Mpa | 5.6Mpa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s | |
| 6 | Power | DC24V/1.6A | |
| 7 | Nitrogen driving device | 6.0±1.0Mpa | |
| 8 | Storage surroundings | Temperature:-10~50ºC Relative humidity:≤97% |
|
| 9 | Proportion | ≤800m² | |
| 10 | Volume | ≤3600m³ | |
The FM200 Fire Suppression System is a reliable product of Guangzhou Xingjin Fire Equipment Co.,Ltd. with model numbers 40L/70L/90L/100L/120L. It is designed and manufactured in Guangzhou, China and has an operating pressure of 150 PSIG. The system can be stored in temperatures ranging from -40°F up to 120°F and can discharge up to 30 feet with a discharge density of 3.0 to 5.0 Lbs/1000 Ft³. The system is also designed to function in temperatures ranging from -40°F up to 120°F.
FM200 Fire Extinguishing System offers technical support and service to ensure the smooth running of the product and to provide assistance to customers.
The FM200 Fire Extinguishing System package includes the following:
The FM200 Fire Extinguishing System will be shipped in a box with sufficient cushioning material to protect the unit during transit.
