Home > products > FM200 Fire Suppression System > Red 120L FM200 Automatic Fire Suppression System Low Maintenance High Safety

Red 120L FM200 Automatic Fire Suppression System Low Maintenance High Safety

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

120L FM200 Automatic Fire Suppression System

,

FM200 Automatic Fire Suppression System Low Maintenance

Power:
DC24V/1.6A
Capacity Of Cylinder:
120L
Relative Humidity:
≤97%
Type:
Pipeline
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Actuation:
Automatic Or Manual
Filling Pressure:
4.2MPa / 5.6MPa
Certificate:
ISO900,CE,SGS,UL
Nitrogen Pressure:
6.0±1.0MPa(20℃)
Discharge Time:
≤10s
Power:
DC24V/1.6A
Capacity Of Cylinder:
120L
Relative Humidity:
≤97%
Type:
Pipeline
Agent:
Fm200(htc-227ea Or Heptafluoropropane)
Actuation:
Automatic Or Manual
Filling Pressure:
4.2MPa / 5.6MPa
Certificate:
ISO900,CE,SGS,UL
Nitrogen Pressure:
6.0±1.0MPa(20℃)
Discharge Time:
≤10s
Product Description

Data Center 120L Network Fm200 Fire Suppression System with Pipeline

Data Center 120L Network Fm200 Fire Suppression System Professional Manufacturers Direct Sales Quality Assurance

Red 120L FM200 Automatic Fire Suppression System Low Maintenance High Safety With Advanced Features





Description:

A professional FM200 Fire Suppression System is a type of fire suppression system that uses the clean agent FM200 (heptafluoropropane) to extinguish fires in a safe, efficient, and fast way. It is typically installed and maintained by licensed professionals who have the necessary expertise, training, and certifications to ensure that the system is designed, installed, and maintained to the highest standards of safety and effectiveness.

The FM200 Fire Suppression System uses FM200 gas to extinguish fires by releasing it into the protected area to rapidly lower the temperature and suffocate the flames. The FM200 gas suppresses the fire in seconds, allowing valuable property and assets to be protected while minimizing damage, downtime, and environmental impact.

A professional FM200 Fire Suppression System supplier and installer typically offers a range of services, including system design, installation, testing, commissioning, training, and ongoing maintenance and support. They work closely with the client to identify the specific risks and requirements of the protected area, such as data centers, server rooms, museums, or archives, to ensure that the system is tailored to meet those needs.

Overall, a professional FM200 Fire Suppression System ensures the highest level of protection for valuable assets and equipment, and it is a preferred solution for areas where traditional water-based fire suppression systems may cause damage or where the use of chemical agents or gases is not preferred or prohibited.

Red 120L FM200 Automatic Fire Suppression System Low Maintenance High Safety 0

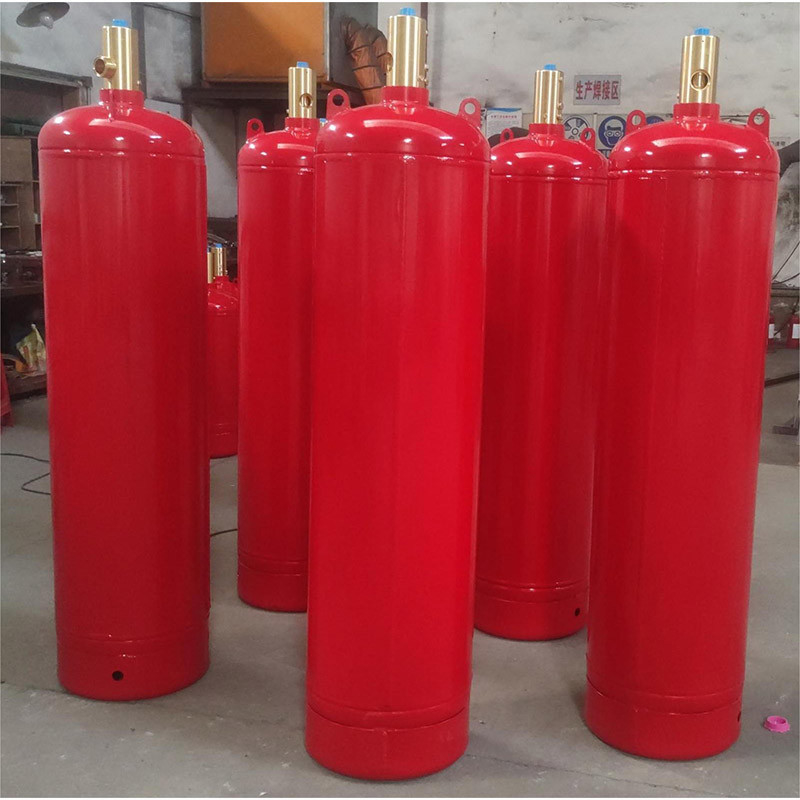

The FM200 gas is stored in cylinders and released into the protected area through a piping network when a fire is detected. The gas quickly and effectively suppresses the fire by removing heat from the combustion process and breaking the chain reaction of the fire. The FM200 Fire Suppression System is designed to extinguish fires in seconds, minimizing potential damage and downtime.

The FM200 Fire Suppression System is typically used in high-risk areas such as data centers, server rooms, laboratories, museums, and archives. It is activated automatically by heat or smoke detectors or manually by a pull station.

Overall, the FM200 Fire Suppression System is a reliable and effective solution for fire protection in areas where traditional water-based fire suppression systems are not appropriate. The system is safe for humans, environmentally friendly, and causes no damage to materials or equipment. It is best installed and maintained by licensed professionals with experience in fire suppression systems.

Red 120L FM200 Automatic Fire Suppression System Low Maintenance High Safety 1

Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



Compositions:



    120L network Fm200 Suppression with pipeline is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.



    Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.



    Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.



    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.



    These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



    Here attached below is complete composition of whole system,



                Red 120L FM200 Automatic Fire Suppression System Low Maintenance High Safety 2



Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m2 volume:max single-zone is 3600m3
3 Spraying time ≤10s
4 Filling density ≤950kg/m3 ≤1080kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa 8.0Mpa
9 min working pressure 4.2Mpa 4.6Mpa





Advantages:



   A good system might have a lot of advantages, so here is going to show customers some strong points of this system.



   1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.



   2/ Efficient spraying of gas. One set of pipe network system can make the discharge on average for big zones in a short time with the help of the deployment of the pipeline.



   3/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building but with different dimensions or in different floor. Meanwhile, it can reduce the cost based on the original by the least and safe utilization of fire extinguishing gas. Because of the adoption of selective valves that can guide the fire extinguishing gas into the room on fire, so it would be relatively smarter to monitor each room to avoid an accident. It is worthy to mention that the combined rooms should be less than 8 including 8 in accordance with our standard.
