TUV SGS ISO CE Certified Gaseous Fire Suppression System Gas Fire Suppression System

Product Details

Place of Origin: Guangzhou, Guangdong, China

Brand Name: Guangzhou Xingjin Fire Equipment Co.,Ltd.

Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1

Model Number: 40L/70L/90L/100L/120L/150L/180L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:

CE Certified Gaseous Fire Suppression System

,

Red Gaseous Fire Suppression System

Ambient Temperature:
0℃~50℃
Reliability:
99.99%
Type:
Gaseous Fire Suppression System
System Protection Volume:
Maximum Single Region M³
System Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency
Certificate:
TUV SGS ISO CE
Color:
Red
Product Name:
FM200 Gas Suppression System
Ambient Temperature:
0℃~50℃
Reliability:
99.99%
Type:
Gaseous Fire Suppression System
System Protection Volume:
Maximum Single Region M³
System Starting Mode:
Automatic, Electrical Manual, Mechanical Emergency
Certificate:
TUV SGS ISO CE
Color:
Red
Product Name:
FM200 Gas Suppression System
Product Description

Product Description:



A FM200 Gas Suppression System is a type of fire protection system that uses heptafluoropropane (also known as HFC-227ea) as the extinguishing agent. This system is commonly installed in areas where traditional water-based fire suppression methods could cause significant damage to valuable assets such as computer rooms, data centers, telecommunications facilities, museums, archives, and other critical environments.

Here’s a the components and operation of a typical FM200 Gas Suppression System:

Components:

  1. Extinguishing Agent Storage Cylinders: These contain the FM200 gas under pressure.
  2. Release Valves: Control the release of the FM200 gas from the storage cylinders.
  3. Piping Network: Distributes the gas to the protected area through a series of pipes.
  4. Nozzles: Spray the FM200 gas into the protected space evenly.
  5. Detection Devices: Smoke detectors and heat detectors monitor the area for signs of fire.
  6. Control Panel: Monitors the status of the system and activates the extinguishing sequence upon detection of a fire.
  7. Alarm Devices: Audible and visual alarms to alert occupants before the gas is released.

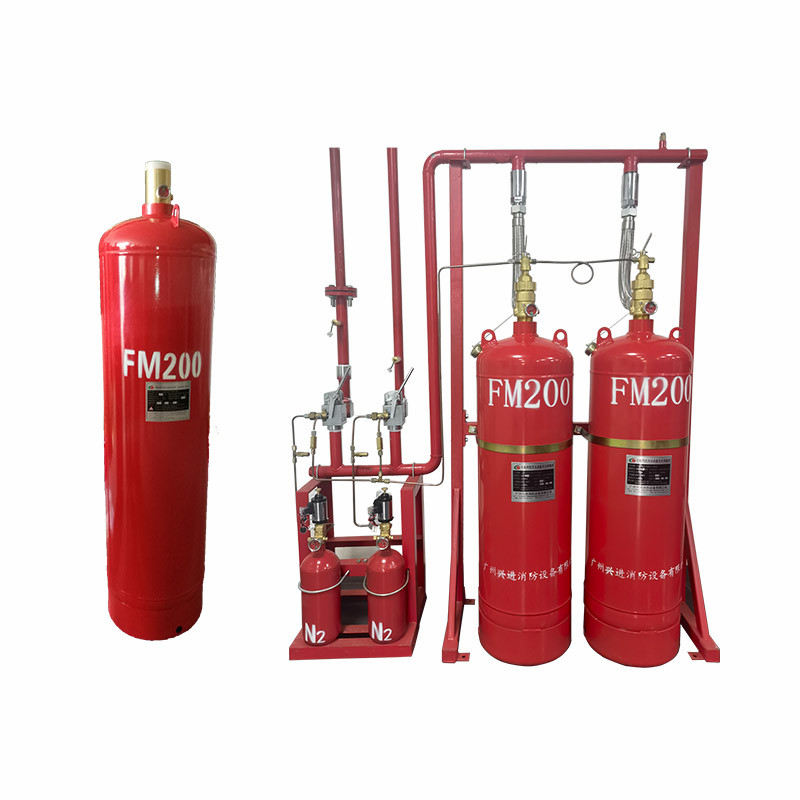

TUV SGS ISO CE Certified Gaseous Fire Suppression System Gas Fire Suppression System

The FM200 Gas Suppression System is a clean agent fire-extinguishing system that offers superior fire protection with a zero ozone depletion potential. Powered by DC24V/1.6A, this fire suppression system is designed for Class A, B, C fires and has a storage pressure of 5.6Mpa. The FM200 fire-extinguishing agent is stored in the system's red cylinders and is released within seconds to extinguish the fire. This fire suppression system provides fast, effective fire protection with no smoke or water damage.

Benefits:

  • Clean Agent: FM200 leaves no residue and does not harm sensitive electronics or other valuable assets.
  • Rapid Fire Suppression: The gas is dispersed quickly, often within 10 seconds, to suppress the fire before it causes extensive damage.
  • Safe for Humans: FM200 is non-toxic at the concentrations used for fire suppression, although it can displace oxygen; therefore, evacuation is necessary.
  • Environmentally Friendly: FM200 has a lower environmental impact than previous halon agents and does not deplete the ozone layer.

Features:

  • Product Name: FM200 Gas Suppression System
  • System protection volume: Maximum Single Region M³
  • Warranty: 1 Year
  • Origin: Guangzhou, Guangdong, China
  • Brand Name: Xingjin / OEM
  • Application: Archive Room, Generator Room, Power Distribution Room, Machine Room


Technical Parameters:

FM200 Gas Suppression System
Attributes Parameters
Product Name FM200 Gas Suppression System
Type Gaseous Fire Suppression System
Transport Package Plywood Outer Box Or Wooden Case
Discharge Time ≤10s
Brand Name Xingjin / OEM
Certificate TUV SGS ISO CE
Structure Flexible
Working Pressure 4.2MPa
Origin Guangzhou, Guangdong, China
System protection volume Maximum Single Region M³


Applications:

FM200 Gas Suppression System

Guangzhou Xingjin Fire Equipment Co.,Ltd. offers FM200 Gas Suppression System that is an advanced gaseous fire extinguishing system used to protect high value assets and critical environments. The fire suppression system is available in model numbers 40L/70L/90L/100L/120L/150L/180L and is powered by DC24V/1.6A. FM200 gas is a clean agent suppression system that can quickly and safely extinguish a fire without leaving any residue or damaging the protected equipment. The system has a filling density extinguishing of ≦950kg/m³ and a working pressure of 4.2MPa. It features an automatic system starting mode as well as electrical manual and mechanical emergency mode.

The FM200 Gas Suppression System is designed to provide quick and reliable fire protection and offers an ideal solution for protecting highly flammable and hazardous material. It is suitable for use in a wide range of applications, including telecommunication centers, computer rooms, data centers, archives, server rooms, and other areas where fire safety is a high priority.




Packing and Shipping:

Packaging and Shipping

FM200 Gas Suppression System is packaged for shipping in a protective cardboard box or plastic crate. The box or crate is designed to protect the system from shocks and other environmental hazards.

The system is shipped via standard courier or freight services, depending on the size and weight of the order.

Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


TUV SGS ISO CE Certified Gaseous Fire Suppression System Gas Fire Suppression System 0

FAQ:

Frequently Asked Questions about FM200 Gas Suppression System

Q. What is the brand name of FM200 Gas Suppression System?

A. The brand name of FM200 Gas Suppression System is Guangzhou Xingjin Fire Equipment Co.,Ltd.

Q. What are the model numbers of FM200 Gas Suppression System?

A. The model numbers of FM200 Gas Suppression System are 40L/70L/90L/100L/120L/150L/180L.

Q. Where is the place of origin of FM200 Gas Suppression System?

A. The place of origin of FM200 Gas Suppression System is Guangzhou, Guangdong, China.

Q. What is the application of FM200 Gas Suppression System?

A. The FM200 Gas Suppression System is suitable for protecting computer, communication equipment, precision instrument, electrical equipment and other valuables from fire.

Q. What is the working principle of FM200 Gas Suppression System?

A. The FM200 Gas Suppression System is based on the principle of fire extinguishing by inert gas. It works by releasing a colorless, non-toxic, non-corrosive and electrically non-conductive gas to reduce the oxygen content in the protected area to a point at which combustion cannot be sustained.
