Home > products > FM200 Fire Suppression System > 90L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years

90L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years

Product Details

Place of Origin: Guangzhou china

Brand Name: Guangzhou Xingjin Fire Equipment Co.,Ltd

Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2set system

Price: $558

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 sets per month

Get Best Price
Product Details
Highlight:

90L FM200 Fire Extinguishing System

,

Automatic FM200 Fire Extinguishing System

Product Name:
FM200 Gas Fire Suppression System
Color:
Red
Discharge Time:
≤10s
Usage:
Gas Fire Extinguishing
Filling Pressure:
2.5 Mpa, 4.2 MPa
Ambient Temperature:
0℃-50℃
Application:
A,B,C
Material:
Cylinder, Stainless Iron
Filling Density:
≤950kg/m3
Power:
DC24V/1.6A
Company Type:
Manufacturer Over 12-years
Brand Name:
Xingjin/OEM
Pattern Of Extinguishing:
Enclosed Flooding
Durability:
High
Actuation:
Automatic Or Manual Start
Transport Package:
Plywood Outer Box With Bubble Bag Or Paper
Product Name:
FM200 Gas Fire Suppression System
Color:
Red
Discharge Time:
≤10s
Usage:
Gas Fire Extinguishing
Filling Pressure:
2.5 Mpa, 4.2 MPa
Ambient Temperature:
0℃-50℃
Application:
A,B,C
Material:
Cylinder, Stainless Iron
Filling Density:
≤950kg/m3
Power:
DC24V/1.6A
Company Type:
Manufacturer Over 12-years
Brand Name:
Xingjin/OEM
Pattern Of Extinguishing:
Enclosed Flooding
Durability:
High
Actuation:
Automatic Or Manual Start
Transport Package:
Plywood Outer Box With Bubble Bag Or Paper
Product Description

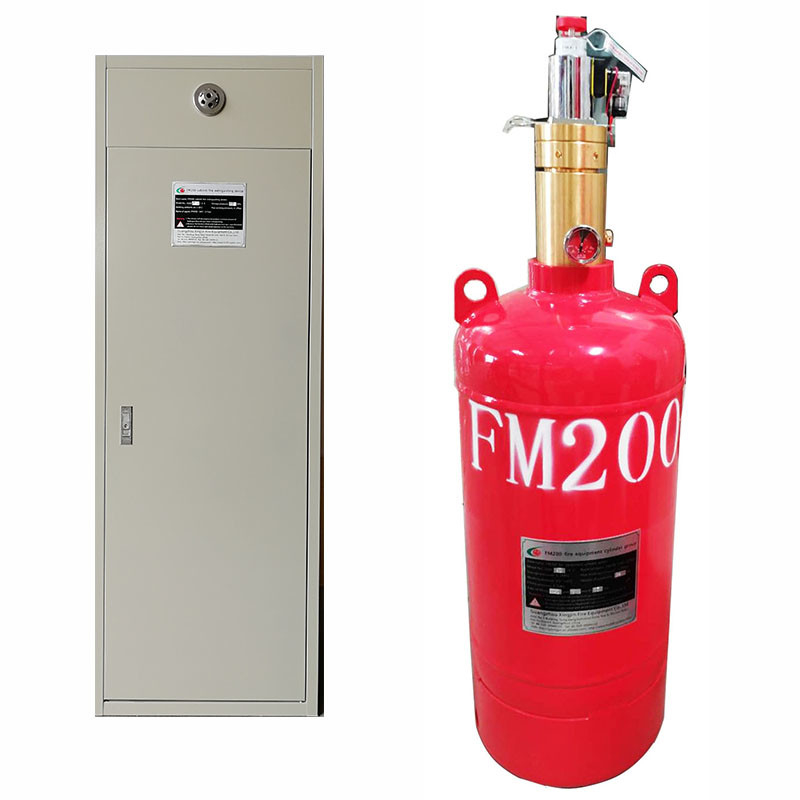

90L FM200 Cabinet Extinguisher Single Cylinder for machine room




Description:

  • The FM-200 Clean Agent Fire Suppression System is a modern and highly effective fire protection solution designed primarily for environments where water-based suppression systems could cause damage to sensitive equipment or where fast extinguishing action is crucial to minimize downtime and loss. It is often used in data centers, telecommunications facilities, museums, archives, medical facilities, and other high-value assets locations.Key Features and Components:

  • FM-200 (HFC-227ea) as the Suppressant: The heart of the system is the FM-200 clean agent, a hydrofluorocarbon compound. It's an environmentally acceptable substitute for Halon, which was phased out due to its ozone-depleting properties. FM-200 is electrically non-conductive, leaves no residue, and is safe for humans when used as directed, making it ideal for protecting sensitive electronic equipment.

  • Fast Acting: One of FM-200's key advantages is its speed. It can suppress a fire within seconds, significantly reducing the risk of damage from the fire itself or from smoke and heat.

  • Overall, the FM-200 Clean Agent Fire Suppression System offers a reliable and efficient means of protecting valuable assets from fire damage without causing additional harm to the environment or equipment. However, it's important to consult with fire safety professionals to determine if this system is the most suitable option for your specific application, considering factors such as space configuration, fire hazards present, and regulatory requirements.

  • Total Flooding vs. Local Application: The system can be designed for total flooding, where the entire protected space is filled with the suppressant, or for local application, focusing on specific high-risk areas.

  • Detection and Control System: The FM-200 system integrates with advanced detection technology, such as smoke detectors or heat sensors, and a control panel. Once a fire is detected, the system releases the FM-200 through specifically designed nozzles, ensuring even distribution.

  • Maintenance and Compliance: Regular inspection, testing, and maintenance are crucial to ensure the system operates effectively when needed. National and local codes, such as NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems), dictate the design, installation, testing, and maintenance requirements.

  • Human Safety Considerations: Although FM-200 is considered safe for occupied spaces within specified exposure limits, proper ventilation systems should be in place to ensure rapid dispersal of the agent after discharge to minimize any potential health effects.



90L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years 0
 Compositions:


A number of parts that work together to successfully put out fires make up the FM200 Cabinet Type Extinguisher system. An extinguishing mechanism and many electrical parts make up the system, which ensures its dependability. The parts of a full one-set system are shown in the diagram below:



  1. FM200 Agents: FM200 agents are clean gas extinguishing agents stored in a pressurized cylinder and serve as the heart of the fire suppression system. These chemicals are specifically developed to extinguish fires quickly by eliminating heat and interfering with the combustion process.

  2. FM200 Cylinder: The FM200 cylinder is the container in which the FM200 agents are stored. It is built to endure high pressures and has safety safeguards to assure correct extinguishing agent storage and discharge.

  3. Hoop: The hoop is a structural element that holds the FM200 cylinder in place within the cabinet. It contributes to the cylinder's stability and ensures that it is appropriately positioned for effective fire suppression

  4. Cabinet: The cabinet serves as a safe enclosure for the FM200 system's components. It is built to be strong and long-lasting, protecting the system from outside elements and potential damage.

  5. Container Valve: The container valve is an important component since it regulates the discharge of the FM200 agent from the cylinder. When engaged, it is intended to deliver a consistent and regulated discharge of the extinguishing agent.

  6. Solenoid Actuator: The solenoid actuator is an electrical device that is used to open and close the container valve. It receives signals from the fire detection system and initiates the fire suppression process by releasing the FM200 agent.

  7. Flexible Hose (High Pressure Hose): The flexible hose, also known as a high-pressure hose, transports the FM200 agent from the cylinder to the discharge nozzles. It is built to resist the system's high pressures and enables for variable deployment within the protected region.



  8. Nozzle(s): When the FM200 agent is fired, the nozzle(s) are strategically placed within the cabinet to guarantee optimal distribution. They are intended to enable efficient extinguishing agent dispersion, maximizing coverage and fire control effectiveness.



  9. Pressure Switch: The pressure switch is an electrical component that measures the pressure inside the FM200 cylinder. It sends feedback to the control panel, informing it of the system's state and ensuring that the cylinder is appropriately pressured for reliable operation.



These elements work together to create a whole FM200 Cabinet Type Extinguisher system. Together, they make it possible to quickly and effectively put out fires inside closed cabinets, safeguarding priceless tools and materials from fire-related threats.






90L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years 1






















































Applications:


For a variety of applications and settings where fires represent a serious risk, the FM200 Cabinet Type Extinguisher system is ideal. It can successfully defend a variety of locations, including:



  1. Clean Rooms: Clean rooms are highly regulated environments used in sectors such as medicines, biotechnology, and electronics manufacture. The FM200 system can protect sensitive equipment and processes in clean rooms while leaving no damage or residue.



  2. Anechoic Chambers: Acoustic testing and research are conducted in anechoic chambers, which are specialized rooms. The FM200 system can protect against fire without interfering with the chamber's distinctive acoustics or delicate equipment.



  3. Emergency Power Facilities: The FM200 system's capacity to suppress flames quickly and effectively, maintaining uninterrupted power supply during emergencies, might benefit locations housing emergency power facilities such as backup generators and electrical infrastructure.



  4. Flammable Liquid Storage Spaces:Fire suppression systems must be reliable in areas where flammable liquids are stored, such as fuel storage facilities or chemical storage rooms. The FM200 system can swiftly extinguish flammable liquid flames, reducing the risk of explosions or spreading fires.



  5. Data Processing Centers: Critical IT equipment and servers are housed in data centers. The FM200 system can safeguard these facilities from flames, reducing downtime and averting data loss or equipment damage.



  6. Telecommunications Facilities: The FM200 system's capacity to quickly suppress flames and protect critical communication infrastructure can assist telecommunications facilities such as data exchange centers and communication hubs.



  7. Process Control Areas:The FM200 system can be used in industrial locations with process control equipment, such as manufacturing facilities or refineries, to offer effective fire suppression while protecting equipment and reducing disturbances to production operations.



  8. Pricey Medical Equipment: The FM200 system may be relied on by medical facilities that house expensive and delicate equipment, such as MRI machines or surgical suites, to quickly suppress fires and protect essential medical equipment.



  9. Industrial Equipment: Production areas with industrial equipment, such as assembly lines or machinery, can benefit from the FM200 system's ability to suppress fires rapidly, minimizing damage and downtime.

  10. Libraries, Museums, and Art Galleries: These cultural institutions house valuable and irreplaceable artifacts. The FM200 system can provide fire protection without causing any residue or damage to the delicate items.

  11. Areas prone to Fires: Locations where fires are more likely to occur, such as engine rooms, cargo holds, rolling mills, printing presses, oil switches, oil-immersed transformers, and production lines involving paint spraying, can greatly benefit from the fast and efficient fire suppression capabilities of the FM200 system.

In conclusion, the FM200 Cabinet Type Extinguisher system is versatile and may be used in a variety of situations and industries to safeguard precious assets, essential equipment, and worker safety. Its capacity to quickly suppress fires makes it an excellent alternative for high-risk areas as well as delicate situations where harm from standard fire suppression methods must be minimized.

90L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years 2

Parameter:


NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5MPa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2MPa
8 Discharge pressure 5.6±0.28MPa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start



Competitive Advantage:

There are several benefits to using a cabinet fire suppression system, and the following is a brief explanation of some of them:

1. Swift reaction. Because there is no requirement for long-distance pipe transmission, Fm200 gas can be released directly into the protection zone. Its spraying cycle is only 8 seconds long. As a result, when the fire breaks out, it will take less time overall.

2. Simple installation. Installing a cabinet system would be less difficult than installing a pipe network system. After installing the control panels and electrical components, the only thing left to do is link it to one or more cabinet fire extinguishing systems. However, due to the control panel's output current limitation, no more than four of them should be placed in the same room.

3. A lower cost. The cost of a protective zone that just requires a single cylinder would surely be lower than the cost of a pipe network type because no pipes, pipe fittings, or manpower would be required for this component.

Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd. is conveniently positioned in Guangzhou, a city noted for its easy access to public transit and scenic surroundings. Guangzhou, located at the crossroads of China's home market and the world arena, is critical in enabling communication and trade. Our organization takes full advantage of this ideal location to serve as an industry leader.



We are dedicated to the research and development of HFC-227ea (FM200) fire suppression systems at Guangzhou Xingjin Fire Equipment Co., Ltd. Experts in program design, qualified installation technicians, quality inspectors, and a responsive after-sales service staff comprise our dedicated team of professionals. We work together to provide high-quality products and solutions that fulfill the needs of our consumers.



Our range of FM200 products has gained widespread popularity and enjoys extensive usage across various sectors. These include:

  • Pipe Network FM200 Fire Suppression System: This system utilizes a network of pipes to distribute FM200 agent throughout the protected area, ensuring comprehensive fire suppression coverage.
  • Cabinet Type FM200 Fire Suppression System: Designed specifically for cabinet enclosures, this system provides targeted fire protection for valuable equipment and materials housed within cabinets.
  • Automatic FM200 Fire Extinguisher (Wall-mounted Style): This ceiling-mounted automatic extinguisher is an efficient and compact solution for fire suppression, particularly suitable for areas with limited space.
  • Fire Detecting Tube Suppression System: This innovative system employs fire detecting tubes that react to heat and automatically discharge the FM200 agent, swiftly suppressing fires.
  • Automatic Fire Suppression Tube: This tube-based system is designed to detect and suppress fires within confined spaces, making it ideal for use in small enclosures or equipment compartments.

Thanks to our unwavering commitment to delivering high-quality products and exceptional customer service, Guangzhou Xingjin Fire Equipment Co., Ltd. has garnered a strong reputation in the Chinese market. We are proud to have earned the trust and satisfaction of our.


90L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years 390L Automatic FM200 Cabinet Fire Extinguishing System Manufacturer Over 12-years 4
