Highlight:
Fast Discharge FM200 Fire Trace Tube System
, 25m Maximum Length Fire Detection Tube
, 12.1Mpa Maximum Pressure Automatic Fire Extinguisher Tube
FM200 Direct-type Fire Detector Tube
Introduction:

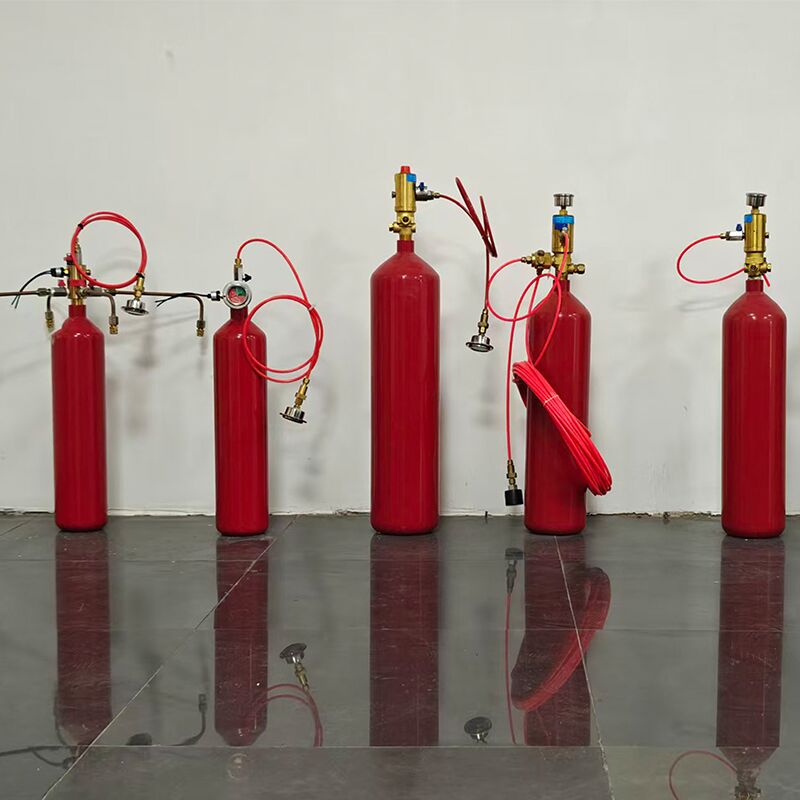

FM200 Automatic Fire Trace Tube is an advanced automatic fire detection and suppression system designed for enclosed spaces and critical equipment. Using clean agent FM200 (HFC-227ea), this system provides fast, residue-free fire protection for electrical cabinets, server racks, control panels, and other sensitive installations.
The system works through a pressurized detecting tube installed directly inside protected enclosures. When exposed to heat or flame, the tube ruptures at the fire source and instantly releases FM200 to suppress the fire at its earliest stage—without the need for electrical power or manual activation.
Available in 2kg, 3kg, 4kg, 6kg, 9kg, and 12kg agent capacities, the FM200 Fire Trace Tube operates at a working pressure of 2.5MPa, with a maximum pressure of 4.2MPa. It supports detecting tube lengths from 5m to 25m and optional releasing tube lengths from 0.5m to 1.5m, making it suitable for a wide range of cabinet and equipment sizes.
FM200 is a colorless, odorless, non-corrosive clean agent with zero ODP, ensuring no damage to valuable equipment and no residue after discharge. The system discharges rapidly—typically within 8 seconds—providing total flooding protection and minimizing fire spread.
This compact, space-saving fire suppression solution is widely used in data centers, telecom rooms, power plants, petrochemical facilities, railway signal rooms, broadcasting stations, UPS rooms, and battery cabinets. Easy to install and cost-effective, the FM200 Fire Trace Tube System offers reliable, automatic fire protection for critical assets and unattended equipment.
Performance Characteristics:
First, the fire extinguishing agent delivery tube has the functions of fire detection, fire extinguishing device activation, and fire extinguishing agent release, eliminating the need for fire alarm and detection devices, thereby reducing costs and installation difficulties, and greatly improving the reliability of the fire extinguishing device, avoiding the false operation of electrical control alarm components.
Second, this device only implements full-coverage fire extinguishing for equipment that has already caught fire, and quickly extinguishes the fire in a point-to-point manner, changing the situation where traditional gas fire extinguishing systems extinguish the entire equipment space regardless of the size of the fire, resulting in slow detection response time and excessive use of fire extinguishing agents.
Third, the fire detection tube can be laid inside equipment and instruments that may catch fire, enabling the fastest detection of fires and the fastest point-to-point fire suppression for only the burning parts, resulting in faster response time, less fire extinguishing agent consumption, lower costs, and greater environmental friendliness.
From the above three characteristics of the temperature-sensing self-starting fire extinguishing device, it can be seen that it is a more scientific fire extinguishing method in terms of improving fire extinguishing efficiency, saving costs, and environmental protection compared to current fixed fire extinguishing devices, especially solid gas fire extinguishing devices.
System Application Scope:
The temperature-sensing automatic fire extinguishing device has solved the long-standing problem in the fire protection field regarding the prevention of fires in spaces such as electrical equipment, control boxes, and distribution boards that are prone to fire. Currently, this device has been widely applied in domestic systems such as power plants, communications, broadcasting and television, petrochemicals, railways, etc., and has accumulated a large amount of successful experience.
1. Suitable for extinguishing fires in the following places:
Microwave rooms, decimeter wave rooms, meter wave rooms, power distribution rooms and uninterruptible power supply rooms in radio and television stations; Switching exchange rooms, control rooms and signaling transfer point rooms of communication systems; Control rooms, electronic equipment rooms, computer rooms, relay rooms, power distribution rooms of power plants; Locations such as cable intersections, dense areas and intermediate joints; Power distribution cabinets, elevator control cabinets, cable trays with troughs or bridges; Special or important cabinet equipment with relatively enclosed enclosures in other places.
2. Types of fires that can be extinguished
2.1 The automatic fire extinguishing device filled with heptafluoropropane can be used to extinguish the following fires:
Flammable gas fires that can cut off the gas source before extinguishing;
Fire of Class A, B and C liquids or molten solids such as paraffin and asphalt;
Surface fires of solids and partial deep-position fires of cotton, wool, paper and other solid materials;
Electrical fires.
2.2 The automatic fire extinguishing device filled with heptafluoropropane shall not be used to extinguish the following fires:
Fires of chemical products containing oxidants such as nitrocellulose, gunpowder;
Fires of active metals such as potassium, sodium, magnesium, titanium, zirconium;
Fires of metal hydrides such as potassium hydride, sodium hydride.
Main parameters of the fire probe tube:
| Outer diameter |
Inner diameter |
Wall thickness |
Density |
Melting point temperature |
| Φ6mm |
Φ4mm |
1.0mm±0.1mm |
1.05g/cm3 ±0.1g/cm3 |
170℃±10℃ |
Device technical parameters:
| Device type |
Device release type
|
Nominal working pressure |
Maximum working pressure |
Operating temperature range |
The minimum amount of fire extinguishing agent required per unit volume |
The maximum length of the fire probe tube |
Maximum length of the release tube |
Maximum filling coefficient |
| Heptafluoropropane temperature-sensitive automatic fire extinguishing device |
Direct form |
2.5Mpa |
4.2Mpa |
(-10~50)℃ |
0.7kg/m3 |
25m |
-- |
1.12kg/L |
Device type and model:
| Device type |
Model specification |
Fire extinguishing agent filling volume(kg) |
Effective protection scope(m3) |
The maximum length of the fire probe tube(m) |
Maximum length of the release tube(m) |
Device Release Type |
| Heptafluoropropane temperature-sensitive automatic fire extinguishing device |
WZ-Q/T-QZ3-XJ60
|
3 |
4.2 |
25 |
-- |
Direct form |
FAQ:
Q: Are you a trading company or a manufacturer?
A: We are both a manufacturer and a trading company. We have owned our own factory for nearly 15 years and are committed to providing high-quality service to our overseas customers.
Q: Can you do OEM production?
A: We accept all OEM orders. Simply contact us with your design proposal, and we will provide you with a reasonable price as soon as possible.
Q: How do you ensure product quality?
A: We have TUV/SGS/ISO quality control systems and strictly adhere to them. We have a professional quality inspection team, and each packer conducts a final inspection according to the quality inspection instructions before packaging.
Q: What is the delivery time?
A: Depending on the minimum order quantity, we ship within 10-15 business days after receiving the deposit. 20-foot container orders typically take 30-35 days to fulfill.
Q: Besides filling machines, do you offer other conventional firefighting equipment?
A: Of course. We offer a full range of professional firefighting equipment, from sound and light alarms to smoke exhaust valves, as well as FM200, CO2, and Novec1230 fire suppression systems. Feel free to contact us!
Please inquire about the specific delivery time based on your order quantity.
