Guangzhou Xingjin Fire Equipment Co.,Ltd.

Fm200 Direct Type Fire Detection Tube Single Zone For Server Room / Data Center

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 200 sets per week
  • Detail Information
  • Product Description

Detail Information

Working Pressure: 2.5Mpa Capacity: 3kg Fm200
Zone Management: Single Pattern Of Extinguishing: Enclosed Flooding
Density Of Unit Volume: 0.7kg/m3 Actuation: Automatic
High Light:

fire detection system

,

fire extinguisher tube

Product Description

Fm200 Direct Type Fire Detection Tube Single Zone For Server Room / Data Center





Parameter:



No. Specification Technical parameter
1 Type Fm200 direct type
2 model WZ-Q/T-QZ3-XJ60
3 Working pressure 2.5Mpa
4 Max working pressure 4.2Mpa
5 Working temperature 0-50℃
6 Density of unit volume 0.7kg/m3
7 Max length of detecting tube 20m
8 Quantity of agent 3kg





Description:



    Fm200 Direct Type Fire Detection Tube is filled with 3kg fm200 . It is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.



    On the top of the container valve, there is a small round light like a red button. When the fire agent runs out for putting out the fire, the small round alarm bell will ring together to inform people that there is a fire. Besides, how can this fire detecting system detect a fire so precisely and fast? That should be thankful for the soft detecting tube. Because of its soft characteristic, the fire detecting tube can be placed to any dead spot. When placing the fire detecting tube, people should make clear where will catch a fire easily. Those fire detecting tubes should be put above or near the places that easily get fire.

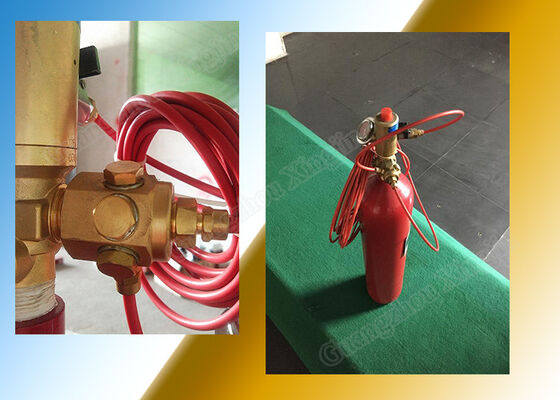

                Fm200 Direct Type Fire Detection Tube Single Zone For Server Room / Data Center 0





Applications:



    Direct carbon dioxide fire detecting system is suitable for small places, some machinery outer cabinet, such as power plants, communications, broadcasting, petrochemical, railway ans so on system.





Competitive Advantages:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Another one is that Fm200 Direct Type Fire Detection Tube is special for expensive device and delicate machine. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression device. meanwhile, it is extremely easy to be installed.





Attentions:



    1 / If there is any problem, please first contact us. We suggest that users should call and tell us what is going on with the system first, and more importantly, users should not touch anythings or even try to fix it by themselves before we send professionals there. That’s because an unprofessional fixing may let things worse.



    2 / There should be a routine check for the whole fire suppression system to make sure that the system is in a good condition. And the check frequency can follow the manual instruction we provide.
