Compact Inert Gas Cabinet System - Reliable FM200 Fire Fighting Equipment

Cabinet Type Of Fm200 Automatic Fire Suppression System

Product Overview:

  The FM200 Cabinet Fire Suppression System is a pre-engineered, standalone clean agent fire protection solution using HFC-227ea (FM200) as the extinguishing medium. It is specifically designed for small to medium protected enclosures such as data centres, server rooms, electrical rooms, telecom rooms, control rooms, archives, and other high-value equipment spaces.

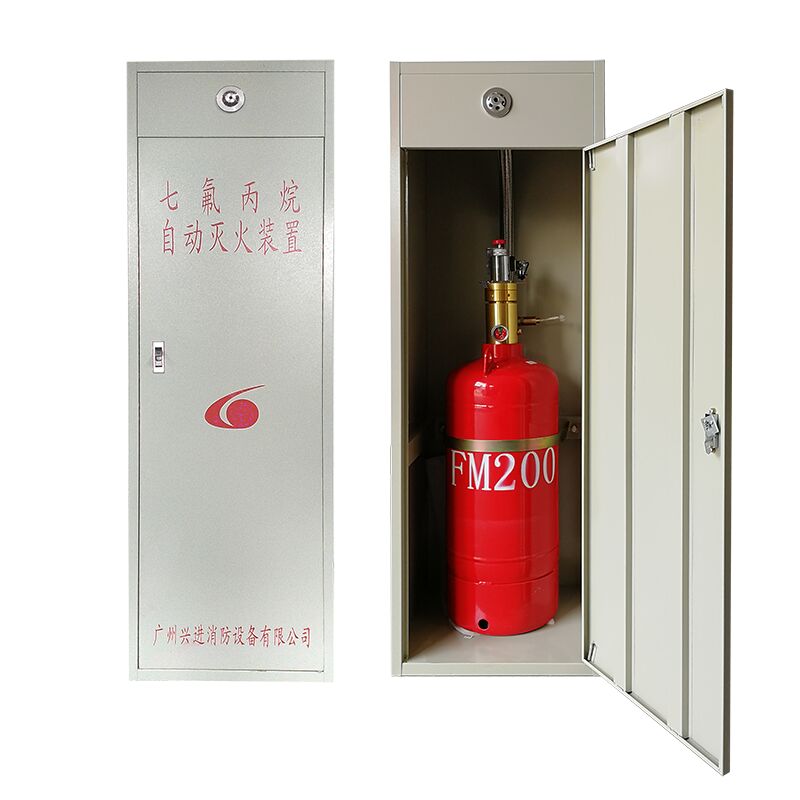

  This FM200 cabinet system integrates the agent cylinder, solenoid actuator, flexible hose, and discharge nozzle into a compact cabinet enclosure. It features DC24V automatic activation and a rapid discharge time of ≤10 seconds, enabling fast and uniform total flooding fire suppression at the early stage of a fire to minimise equipment damage and operational downtime.

  With a storage pressure of 2.5 MPa and filling capacities ranging from 40 kg to 180 kg, the system supports both single-cabinet and dual-cabinet configurations. It can be flexibly selected based on the protected volume, making it suitable for various room sizes and space-constrained installations without the need for complex pipe networks.

  FM200 (HFC-227ea) is a clean, non-conductive, and non-corrosive extinguishing agent that leaves no residue after discharge. It is safe for sensitive electronic equipment and allows rapid system recovery following fire suppression, making it ideal for data centres, server rooms, UPS battery rooms, transformer rooms, libraries, and archives.

  The FM200 cabinet fire suppression unit can be integrated with a fire alarm control panel for automatic detection, activation, and audible/visual alarming. A manual emergency release option is also provided. The system is reliable, easy to install and maintain, and fully compliant with relevant fire protection standards, offering an efficient and cost-effective clean agent fire suppression solution.

FM200 Cabinet System Components:   The single-cabinet FM200 automatic fire extinguishing system consists of two main sub-assemblies: the fire extinguishing device and the electrical accessories.   The fire extinguishing device includes the cabinet housing, the FM200 storage cylinder, flexible hoses, and solenoid valves.   The electrical accessories detect and monitor the entire protected area and control the overall system. They also sound evacuation alarms and help prevent fire spread.   When integrated, these two components work together to achieve automatic fire detection, monitoring, alarming, and extinguishing.

Applications:

Electronic computer rooms

Data processing centres

Telecommunications facilities

Process control centres

Expensive medical equipment rooms

Industrial equipment rooms

Libraries, museums, and art galleries

Clean rooms and anechoic chambers

Emergency power facilities

Flammable liquid storage areas

High-risk areas such as paint-spraying production lines, electrical equipment ageing rooms, rolling mills, printing presses, oil switches, oil-immersed transformers, impregnation tanks, melting tanks, large generators, drying equipment, coal pulverising systems in cement production, as well as ship engine rooms and cargo holds

Packaging and Shipping for Inert Gas Fire Suppression System
Packaging:

The FM200 cabinet fire suppression system is carefully packaged to ensure safe delivery and handling. The packaging includes:

Heavy-duty cardboard box

Bubble wrap

Protective foam inserts

Instruction manual

Shipping:

We offer worldwide shipping for our FM200 cabinet fire suppression system. The following shipping options are available:

All shipments are sent via reliable and trusted courier services to ensure timely and secure delivery. Customers will receive a tracking number by email once their order has been shipped.

Special Handling Instructions:
If your shipment requires any special handling instructions, please contact us at least 24 hours before dispatch. We will do our best to accommodate your request.

.
