FM200 fire extinguishing gas for data centers
, high-purity FM200 clean agent
, automatic FM200 fire suppression system

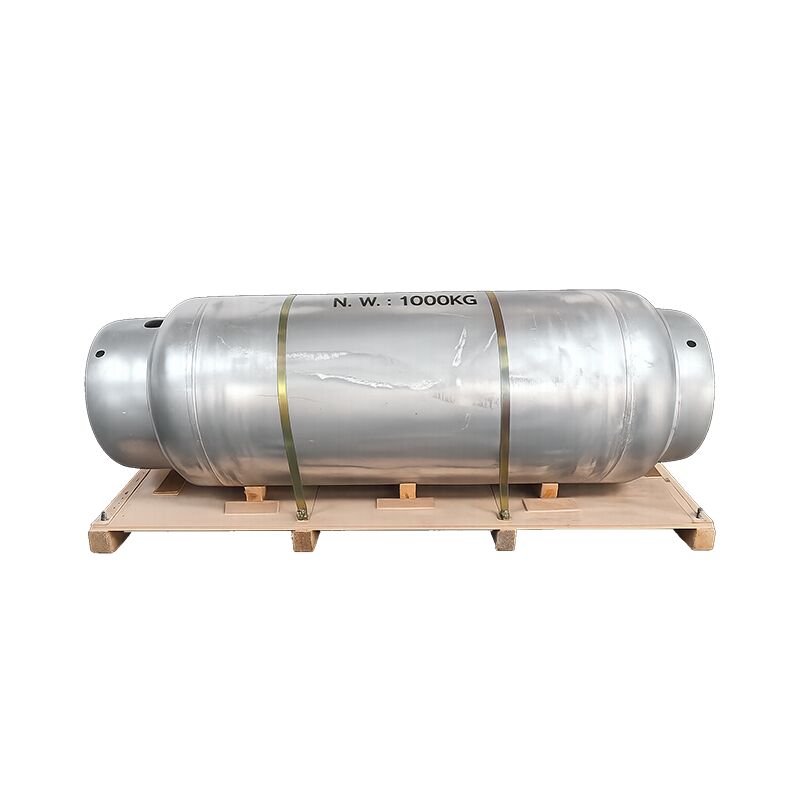

Heptafluoropropane (HFC-227ea) Filling Agent
Product Overview:
Heptafluoropropane (HFC-227ea) is the most widely used clean agent for automatic fire extinguishing systems in the commercial fire protection industry.
Key advantages include high fire extinguishing efficiency, clean and environmentally friendly properties, cost-effective operation, and safe use in occupied spaces.
The heptafluoropropane filling equipment is designed with the following features:
-
Nitrogen pressure reduction system
-
Filling pressure alarm with adjustable setpoints
-
Vacuum pumping system
-
Weight reporting and monitoring function
-
Alarm node interface for external integration
-
Compatibility with multiple gas cylinder specifications
These features ensure optimal airtightness and filling accuracy throughout the fire extinguishing agent transfer process.
Technical Parameter:
| Project |
Parameter |
| Suitable Extinguishing Media |
FM200(HFC-227ea),Nitrogen |
| Maximum Filling Pressure |
5.6 MPa |
| Nitrogen Pressure Reduction Range |
0~ 10 MPa adjustable (commonly used: 2.5 MPa, 4.2 MPa, 5.6 MPa) |
| Drug Output Pressure |
0~3.6 MPa |
| Vacuum Degree |
≤ -0.09 MPa |
| Filling Pressure Alarm |
0~ 10 MPa (Adjustable to set value, alarm warning light on) |
| Filling Density |
≤ 950 kg/m³ |
| Filling Accuracy |
±0.5% |
| Ambient Temperature |
0~50℃ |
| Power Requirements |
AC 220V ,50Hz |
| Equipment Size |
720×800×1280 mm (Excluding the wheel) |
| External Connection Thread |
Drug inlet and outlet threads and nitrogen interface: M22 × 1.5 |
| Other |
Reserved weight alarm indicator interface (requires external intelligent electronic weighing device) |
Equipment valve body function:
| F1 pressure reducing valve |
Control the pressure of nitrogen entering the system to ensure stable and safe filling process. |
| F2 pressure relief valve |
Release excess pressure in emergency situations to protect equipment and gas
cylinders from high pressure damage.
|
| F3 Pharmaceutical Storage Valve |
Control the pipeline for the flow of fire extinguishing agent from the storage tank to the filling cylinder. |
| F4 nitrogen storage valve |
Control the entry of nitrogen from the storage tank into the equipment pipeline to provide pressure for the filling of fire extinguishing agents. |
| F5 gas cylinder valve |
Used to connect fire extinguishing agent cylinders and control the opening or closing
of cylinder fluid pipelines.
|
| F6 vacuum valve |
Used to open or close the air inside the extracted gas cylinder, reduce the pressure inside the cylinder, and ensure the purity of the fire extinguishing agent filling. |
Applicable Locations:
Heptafluoropropane provides excellent protection for precision equipment and valuable assets. It is primarily recommended for the following environments:
-
Computer and server rooms
-
Telecommunications and communication rooms
-
Control rooms and operations centers
-
High-value equipment storage areas
-
Cultural relic and archive storage rooms
-
Libraries and record archives
-
Data storage facilities
-
Generator rooms
-
Oil-immersed transformer rooms
-
Electrical substations and circuit breaker rooms
-
Circulating and hydraulic equipment areas
-
Drying equipment rooms
-
Dust collection systems
-
Spray painting production lines
Important Maintenance Notes:
Heptafluoropropane gas does not currently have a standardized service life. However, regular maintenance of the gas fire extinguishing system is essential for reliable operation.
Recommended maintenance schedule:
-
Daily: Visual inspection of system components and pressure gauge readings to identify any abnormal conditions
-
Weekly, monthly, and annual: Regular scheduled inspections as per local regulations
-
Every 5 years: Contact the manufacturer to conduct a hydrostatic pressure test at 5.3 MPa on storage cylinders. Only cylinders that pass the test should be returned to service
-
Replace immediately if any corrosion, physical damage, or safety concerns are identified
Replacement guidelines:
