Novec1230 (FK-5-1-12) Pipe Network Automatic Fire Suppression System

Novec1230 (FK-5-1-12) pipe network automatic fire suppression system is a clean agent fire protection solution using an eco-friendly fluorinated ketone extinguishing agent. Specifically designed for data centers, telecom base stations, factory control rooms, hospitals, and commercial complexes, this system achieves full flooding discharge within 10 seconds. It leaves no residue, is non-conductive, and causes no harm to personnel or equipment, making it an ideal replacement for traditional Halon fire suppression systems.

Why Choose Novec1230 Pipe Network System

• High Temperature & Humidity Tolerance
  Operates reliably at 0~50°C with relative humidity up to 97%, suitable for most climate conditions

• Power Supply Compatibility
  Powered by DC24V/1.6A, compatible with UPS and backup power systems commonly used in  facilities.

• Environmentally Compliant
  Zero ODP and GWP of 1 with no halogen additives, aligning with CPCB guidelines for environmentally friendly fire extinguishing agents.

• Local Certification Support
  Cylinders, piping, and valves can be configured to meet BIS standards and local fire department technical review requirements.



Typical Applications

This system is widely recommended for the following commercial and industrial environments  :

Application	Specific Use Cases
Data Centers & IT Rooms	Third-party data centers and enterprise server rooms in Bangalore, Hyderabad, Pune, Mumbai, Chennai, Delhi-NCR
Telecom Infrastructure	BTS towers, switching centers, mobile communication hubs
Banks & Financial Institutions	State bank headquarters, data centers, vaults, ATM control rooms
Healthcare Facilities	Operating theaters, MRI rooms, pharmaceutical storage in large private hospitals and diagnostic centers
Manufacturing & Industrial Control Rooms	Central control rooms and electrical rooms in automotive, pharmaceutical, chemical, and textile plants
Metro & Rail Transit	Metro control centers, signal rooms, substations
Commercial Complexes & High Rise Buildings	Electrical rooms and server rooms in shopping malls, hotels, office towers
Energy & Power Facilities	Power plant control rooms, substations, battery rooms

Key Advantages

• Fast Fire Suppression
  Complete agent discharge in ≤10 seconds for rapid fire control, minimizing business interruption.

• Clean & Residue Free
  No cleanup required after discharge, preventing secondary damage to electronics or valuable assets.

• Safe for Occupied Areas
  Harmless at recommended design concentrations, with an adjustable time delay (approx. 2 minutes) for safe evacuation.

• Environmentally Friendly
  Zero ODP and GWP of 1 with no atmospheric lifetime restrictions, supporting green building initiatives.

• Multi Zone Protection
  A single system can protect multiple independent zones using selector valves, significantly reducing equipment costs.

• Broad Fire Class Coverage
  Effective against Class A (solids), Class B (liquids), Class C (gases), and electrical fires.

Technical Specifications

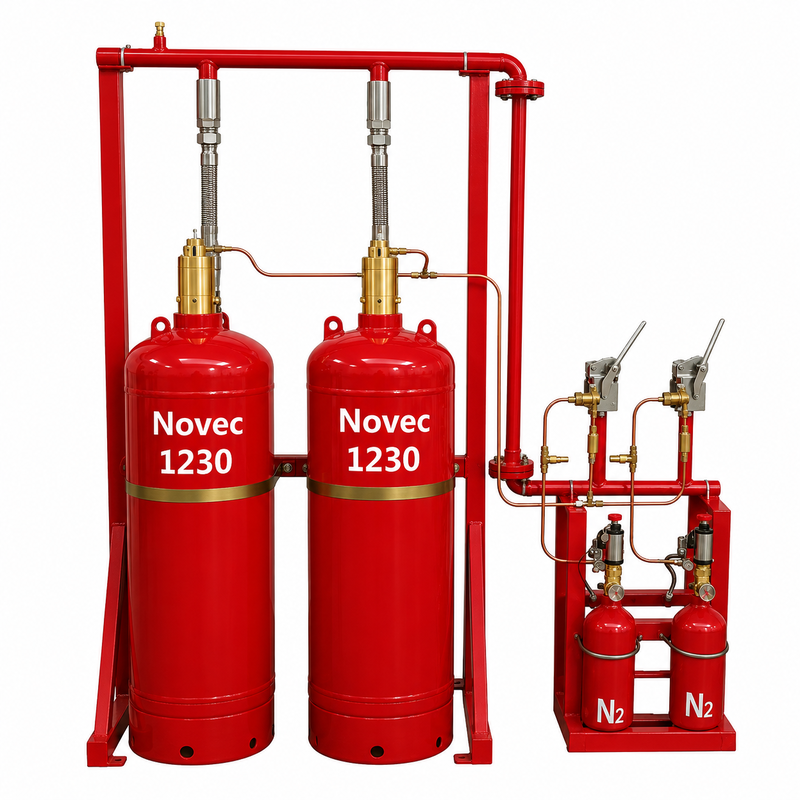

System Components

• Agent Storage Cylinders – Pressure vessels containing Novec1230 agent

• Nitrogen Actuation Cylinders – Releases the cylinder valve to discharge agent

• Selector Valves – Enables multi-zone selective discharge

• Pipe Network – High pressure galvanized steel pipes and fittings

• Nozzles – Evenly distributes extinguishing agent throughout the protected area

• Fire Alarm Control Panel – Detection, alarm, and actuation control

• Detectors – Smoke and heat detection devices



Market Support Services

• Engineering drawings compliant with electrical and fire safety standards

• Technical documentation support for local fire department approval and commissioning

• Local stock of common cylinder sizes and pipe fittings in Mumbai / Delhi / Bangalore

• Remote commissioning guidance and on-site technical support

• Engineer dispatch available for on-site system commissioning and operator training


FAQ

Q: Does the system require local certification?
A: Main components can be configured to meet BIS and local fire code requirements. We provide technical documentation to assist with local approvals.

Q: How often do cylinders need inspection?
A: Hydrostatic pressure testing and air tightness inspection is recommended every 5-6 years. Follow local fire department guidelines for specific requirements.

Q: How to refill the agent after discharge?
A: Cylinders can be returned to us or authorized partners for refilling, or you may use qualified local refilling service providers.
