DC24V/1.5A Solenoid Pilot Gas Cylinder for High Durability and Environmentally Friendly Gas Fire Suppression System

Name: DC24V/1.5A Solenoid Pilot Gas Cylinder for High Durability and Environmentally Friendly Gas Fire Suppression System
Brand: Guangzhou Xingjin Fire Equipment Co.,Ltd.
SKU: QQP4/6 QQP7.5/6 QQP10/6 QQP20/6 DQP40/6
Price: 423.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: QQP4/6 QQP7.5/6 QQP10/6 QQP20/6 DQP40/6

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10-15 working days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 300 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                DC24V/1.5A Solenoid Pilot Gas Cylinder, High Durability Gas Fire Suppression System, Environmentally Friendly Nitrogen Actuator Cylinder


Power:	DC24V/1.6A	Spraying Time:	≤10s
System Components:	Control Panel, Cylinders, Piping, Nozzles, Detectors	Durability:	High Durability
Environmental:	Environmentally Friendly

Power:	DC24V/1.6A
Spraying Time:	≤10s
System Components:	Control Panel, Cylinders, Piping, Nozzles, Detectors
Durability:	High Durability
Environmental:	Environmentally Friendly

Product Description

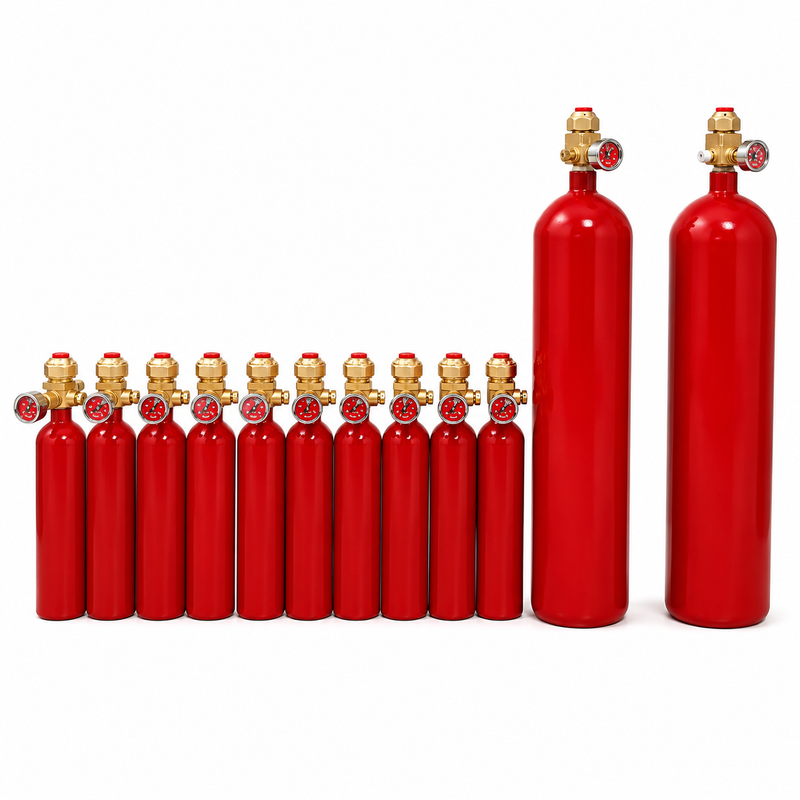

Nitrogen Actuator Cylinder – Power Source for Gas Fire Suppression Systems

Product Overview

The Nitrogen Actuator Cylinder serves as the primary power source for pneumatic actuation in gas-based fire suppression systems. It stores high-purity nitrogen at a nominal pressure of 6.0 MPa and, upon receiving a fire signal, releases the pressurised gas to initiate the opening of selector valves and agent storage container valves. This ensures that the extinguishing agent is discharged into the protected zone within the required response time.

Designed for integration with FM200, inert gas (IG541, IG100, IG55), CO₂, and Novec 1230 systems, this cylinder provides reliable and repeatable actuation performance across a wide range of fire protection applications.

Technical Specifications

Parameter	Specification
Cylinder Nominal Volume	4 L / 10 L (other capacities available upon request)
Filling Pressure @ 20°C	6.0 MPa
Actuation Medium	Dry nitrogen, purity ≥99.99% (moisture content ≤ 15 mL/m³)
Solenoid Operating Voltage	DC 24 V ± 3 V, 1.5 A
Solenoid Holding Force	55 N – 90 N (model dependent)
Outlet Connection Thread	M14 × 1.5 (flare type)
Ambient Operating Temperature Range	0°C to +50°C
Design & Testing Standard	GB 25972-2010 – Gas Fire Extinguishing Systems and Components
Compatible Fire Suppression Systems	FM-200™, IG541, IG100, IG55, High-Pressure CO₂, External Storage HFC-227ea, Novec™ 1230

Key Features & Benefits

Robust Construction & Proven Reliability
Manufactured from high-grade seamless steel and subjected to rigorous hydrostatic and pneumatic leak tests, each cylinder is built to perform reliably in ambient temperatures from -18°C to +50°C. Critical valve and solenoid components carry FM and UL approvals, ensuring compliance with international safety standards.
Dual-Actuation Capability
The cylinder supports both automatic electrical initiation (DC 24V solenoid valve, 1.5A) and manual mechanical override via an emergency push button. This redundancy guarantees system operability even in the event of control circuit failure.
Integrated Safety Mechanisms
- Solenoid Locking Pin: Prevents unintended actuation during shipping, handling, and site installation.
- Low-Leakage High-Seal Valve: Automatically vents accumulated minor gas leaks from the pilot line, preventing pressure build-up that could lead to false activation.
- Built-in Pressure Gauge: Allows for quick visual verification of cylinder charge status during routine inspection, supporting predictive maintenance schedules.
Standardised Connections for Easy Integration
Fitted with M14×1.5 flare-threaded outlets, the cylinder is compatible with most common pilot piping configurations, reducing installation time and simplifying retrofit projects.
Serviceable & Cost-Effective
The cylinder is refillable and designed for long operational life. The solenoid actuator can be removed for bench testing or replacement without disturbing the gas piping, minimising downtime and lifecycle maintenance costs.

Key component parameters

Component	Specification
Solenoid Actuator	MFZ1 series; DC 24 V, 1.5 A rated current; holding force 55 N – 90 N (model dependent)
Pneumatic Actuator (Gas Operator)	Models QQQ1.2MPa / DYQQ1.2MPa / HQQ1.2MPa; nominal pressure 6.6 MPa; minimum actuation pressure 1.2 MPa
Low-Leakage High-Seal Valve	Model EDGO.3/6.6; closing pressure 0.3 ± 0.03 MPa; prevents pilot line pressure accumulation from minor leakage
Pneumatic Check Valve	Model EQD6/6.6; nominal bore 6 mm; cracking pressure 0.2 MPa; connection M14 × 1.5
Pilot Control Tubing	Ø8 × 1 mm seamless copper tube; ferrule-type compression fittings; support bracket spacing ≤ 0.6 m
Pressure Relief Device	Integrated with the cylinder bank; set pressure determined by system operating pressure to prevent over-pressurisation

Associated System Components

Ceiling-Mounted Suspended Units – Compact designs for space-constrained installations
Inert Gas Systems – IG55, IG100, and IG541 configurations
High-Pressure CO₂ Systems – For industrial and deep-seated fire risks
Linear Heat Detection Tubing – Self-actuating detection for enclosed cabinets and small enclosures
Novec 1230 Clean Agent Systems – Fluoroketone-based zero-ODP, low-GWP alternatives

Packaging and Shipping Packaging:

Packaging:

The product will be carefully packaged to ensure safe transportation and proper handling. The packaging materials include: sturdy cardboard boxes, bubble wrap, protective foam padding, and user manual.

Shipping:

We provide global delivery services for the product. The following are the available shipping options:

All goods will be transported by reliable and trustworthy courier companies to ensure timely and safe delivery. After the order is dispatched, customers will receive a tracking number via email.

Special Handling Instructions:

If your goods have special handling requirements, please contact us at least 24 hours before the order is dispatched. We will do our best to meet your needs.

DC24V/1.5A Solenoid Pilot Gas Cylinder for High Durability and Environmentally Friendly Gas Fire Suppression System

Purchasing Notice

1. If you know little about the volume or area of your warehouse, factory or workshop, such as length, width, height, please be sure to contact us in time. In this way, our engineers can design the specifications and quantity of the product according to your needs.

2. If the required specification parameters are not available in the parameter table, please let us know your requirements and we will provide you with a satisfactory design solution.

3. If you have confirmed our products, please place an order and pay. After that, we will arrange shipment as soon as possible.

4. If there are any transportation difficulties, please contact us immediately, and we will provide you with a satisfactory solution to save freight as much as possible.

About Guangzhou Xingjin Fire Equipment Co., Ltd.

Guangzhou Xingjin Fire Equipment Co., Ltd. is a specialised manufacturer of clean agent fire suppression systems with over a decade of engineering and production expertise. Our products are certified to GB 25972-2010 and comply with international design, testing, and installation standards.

What We Offer:

Competitive factory-direct pricing with a 5-year product warranty
OEM/ODM solutions tailored to project-specific requirements
Comprehensive technical documentation and remote installation support
Proven export track record to the Middle East, Southeast Asia, Africa, and other regions

Our systems are widely installed in data centres, telecommunication facilities, power generation plants, oil and gas installations, museums, archives, and industrial process areas across global markets.
