Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: 70L/90L/100L/120L/180L
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Storage Pressure: |
4.2Mpa Or 5.6Mpa |
Zone Management: |
Single Or Multiple Zone |
Agent: |
Fm200(htc-227ea Or Heptafluoropropane) |
Capacity Of Cylinder: |
70L、90L、 100L、120L、150L、180L |
Pattern Of Extinguishing: |
Enclosed Flooding |
Actuation: |
Automatic Or Manual Actuation |
Storage Pressure: |
4.2Mpa Or 5.6Mpa |
Zone Management: |
Single Or Multiple Zone |
Agent: |
Fm200(htc-227ea Or Heptafluoropropane) |
Capacity Of Cylinder: |
70L、90L、 100L、120L、150L、180L |
Pattern Of Extinguishing: |
Enclosed Flooding |
Actuation: |
Automatic Or Manual Actuation |

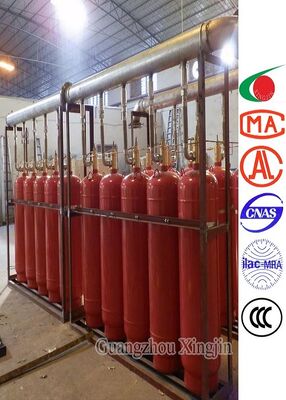

Piped network type of fm200 automatic fire suppression system
parameter:
No. | specification | Technical Parameter | |
1 | Filling pressure | 4.2Mpa | 5.6Mpa |
2 | Scale of Protective region for one zone | area:max single-zone is 800m² volume:max single-zone is 3600m³ | |
3 | Spraying time | ≤10s | |
4 | Filling density | ≤950kg/m3 | ≤1080kg/m3 |
5 | power | DC24V/1.6A | |
6 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | |
7 | Condition of reserving room for container | temperature: -10~50℃, relative humidity: ≤97% | |
8 | max working pressure | 5.3Mpa | 8.0Mpa |
9 | min working pressure | 4.2Mpa | 4.6Mpa |
Description:
A piped network type of FM200 automatic fire suppression system is a type of gaseous fire suppression system that is designed to suppress fires by releasing FM200 gas through a network of pipes and nozzles in a protected area. This system is commonly used in large areas, such as warehouses, data centers, and industrial facilities, where a fixed location of FM200 storage tanks would not be practical.
The system comprises of FM200 storage tanks, release valves, detection and control panels, piping, and discharge nozzles. The detection and control panels include heat detectors, smoke detectors, manual call points, and pre-action systems.
When a fire is detected, the system is triggered to release FM200 gas into the affected area, extinguishing the fire by reducing the oxygen concentration to a level where combustion can no longer occur. The FM200 gas is distributed through the piping system and nozzles to the protected area, which is designed to provide fast and effective fire suppression with minimal disruption to the protected area, occupants, and assets.
The piping for an FM200 system is typically made of high-strength steel to withstand high pressures and is installed in a grid pattern throughout the protected area. Nozzles are installed at regular intervals to ensure that the FM200 gas is distributed evenly and effectively. The system is designed to cover all areas of the protected space, including hard-to-reach areas or hidden spaces that could pose a fire risk.
The FM200 system is highly effective in suppressing fires and has a relatively low cost of maintenance. Additionally, the system provides an environmentally friendly alternative to traditional fire suppression systems since it contains no CFCs and has a low global warming potential.
Overall, the FM200 piped network type of automatic fire suppression system is a reliable, efficient, and safe solution that provides excellent fire protection for large industrial and commercial facilities.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Compositions:
piped network type of fm200 automatic fire suppression system is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

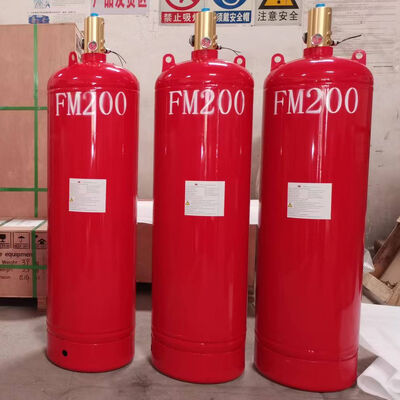

Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Here attached below is complete composition of whole system,
Competitive Advantage:
In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.
Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.
It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.
It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.
Working principle:
Here is the illustration of working principle to whole system,
Simulated diagram:
Below attached is one mimic diagram of piped network type of fm200 automatic fire suppression system,
