Product Details
Place of Origin: China
Brand Name: xingjin
Certification: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1
Model Number: QMQ5.6/120N-XJ
Payment & Shipping Terms
Minimum Order Quantity: 10set
Packaging Details: Box case
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
Material: |
Steel |
Color: |
Red |
Place Of Origin: |
Guangzhou, Guangdong, China |
Product Name: |
FM200 Gas Cylinder |
Durability: |
High |
Working Temperature: |
0ºC~50ºC |
Material: |
Steel |
Color: |
Red |
Place Of Origin: |
Guangzhou, Guangdong, China |
Product Name: |
FM200 Gas Cylinder |
Durability: |
High |
Working Temperature: |
0ºC~50ºC |
Description:

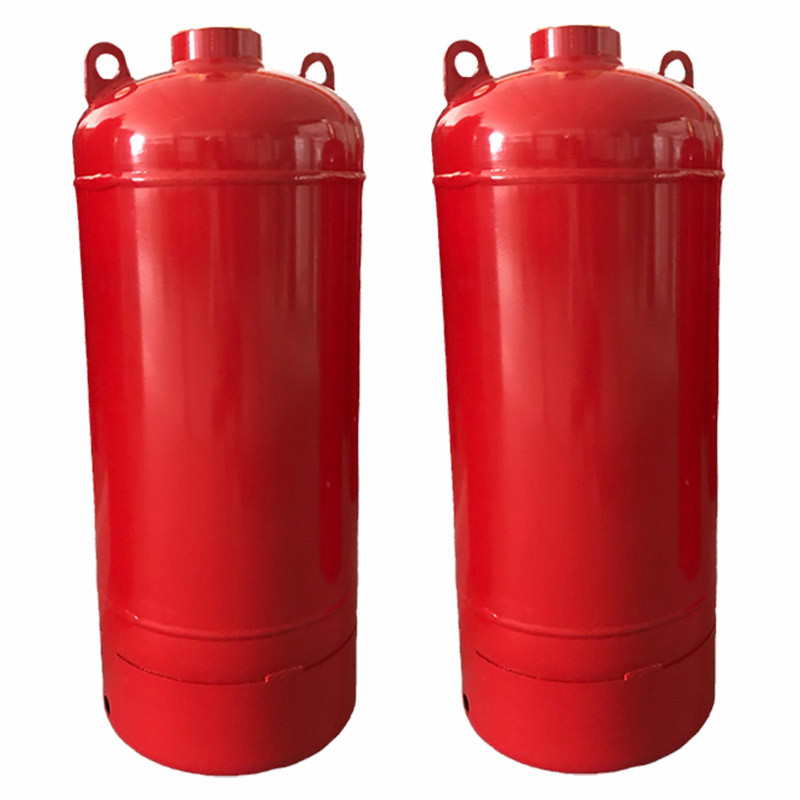

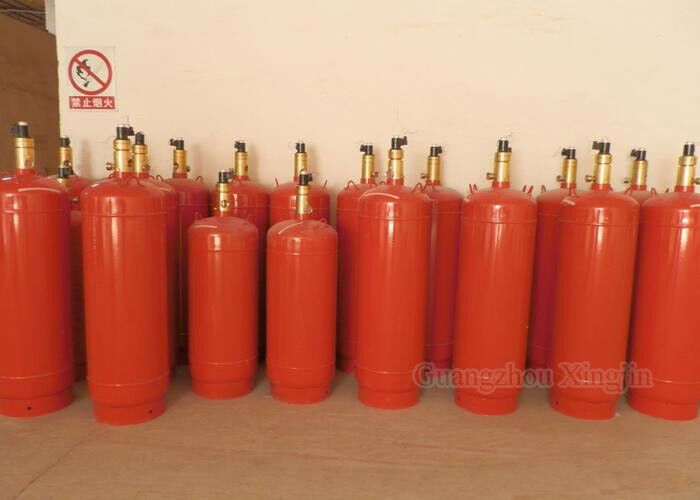

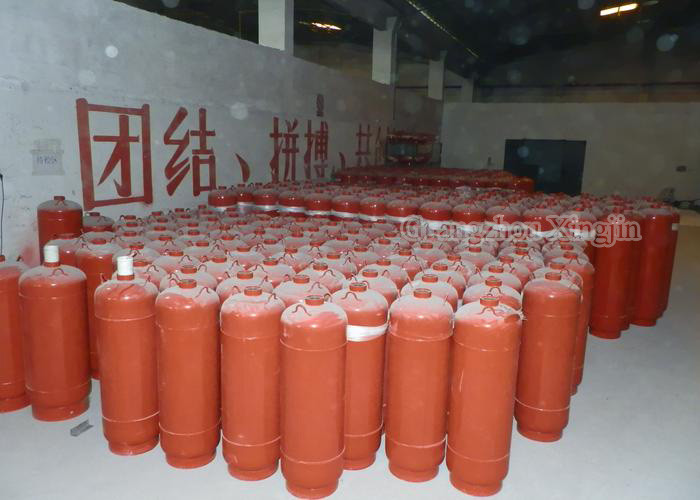

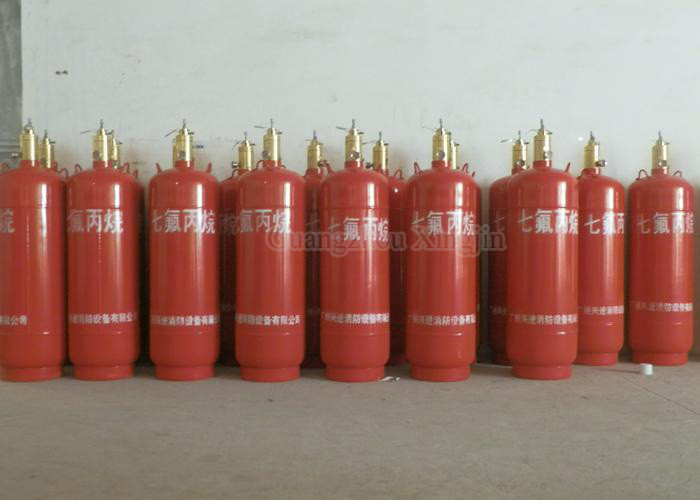

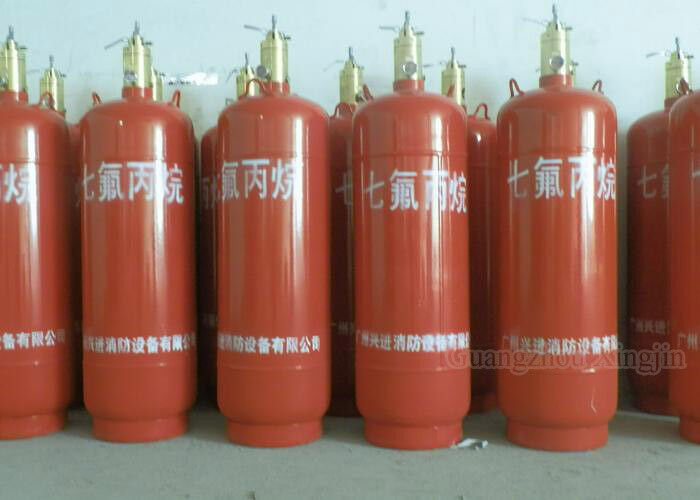

The empty cylinder is used for storing extinguishing agent, usually we call it storage cylinder. It is made by steel.
The FM200 fire suppression system uses cylinders to store the FM200 clean agent, which is a colorless, odorless, and electrically non-conductive gas that extinguishes fires without leaving residue. The cylinders are typically made of steel and are designed to withstand high pressure.
The size of the cylinder depends on the size of the protected area and the required amount of FM200 to suppress a fire. Cylinders can range in size from 25 pounds to 1,000 pounds or more.
The cylinders are equipped with valves that control the release of the FM200 gas. The valve is typically operated manually or automatically by a fire detection and suppression control panel. When a fire is detected, the valve opens, releasing the pressurized FM200 gas into the protected area.
It is important to note that FM200 cylinders should be inspected and maintained regularly to ensure that they are in good working condition and that the FM200 system is ready to operate in case of a fire. The cylinders should also be stored properly and in accordance with local regulations to prevent corrosion or damage.
specification:
Model | Outside diameter(mm) | Height(mm) | Net weight(kg) | Color |
QMQ5.6/120N-XJ | 325 | 1600 | 139 | red |
QMQ5.6/90N-XJ | 325 | 1440 | 130 | red |
QMQ5.6/70N-XJ | 276 | 1560 | 86 | red |
QMQ4.2/180N-XJ | 400 | 1660 | 145 | red |
QMQ4.2/150N-XJ | 400 | 1420 | 126 | red |
QMQ4.2/120N-XJ | 400 | 1180 | 107 | red |
QMQ4.2/100N-XJ | 350 | 1270 | 99 | red |
QMQ4.2/70N-XJ | 300 | 1180 | 67 | red |
The FM200 system cylinder has several attributes that make it a critical component of a fire suppression system. These attributes include:
1. High-pressure design: The FM200 system cylinder is designed to withstand high-pressure conditions and store the FM200 gas agent under pressure.
2. Steel construction: The cylinder is typically made of steel, providing strength and durability to withstand high temperatures and pressure.
3. Available in different sizes: The FM200 system cylinder is available in various sizes, depending on the size of the protected area and the amount of FM200 gas needed.
4. Connected to a pipe network: The cylinder is connected to the discharge pipe network of the fire suppression system, allowing for the efficient distribution of the FM200 gas agent.
5. Quick-acting: FM200 is a fast-acting gas that quickly suppresses fires, preventing extensive damage to property.
6. Non-toxic: FM200 gas is non-toxic and safe for humans and sensitive equipment and property, making it ideal for use in sensitive environments.
7. Environmental-friendly: FM200 gas does not deplete the ozone layer and has a minimal impact on the environment, making it a more environmentally friendly alternative to traditional fire suppression agents.
8. Requires regular servicing: The FM200 system cylinder requires regular servicing and maintenance to ensure it remains in good working condition and can effectively suppress fires in the event of an emergency.
Applications:
1. Clean gas, colorless and tasteless and non-corrosive
2. Electric insulation, utilization for extinguishing of electrical combustion
3. No residue and pollution inside protection zone
4. No damage to ozone layer
Competitive Advantage:
1. Management of multiple zones
2. Efficient fire protection in big region
3. Less occupation in fire-controlled space
4. Relatively cheap price than cabinet or hanging type if zone is big and multiple
Composition:
1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent
2. Electrical parts: smoke detector, heat detector, bell etc.
3. Pipe fittings: conduit, connector, elbow, flange etc.
Attention:
1. Choice for storage room, including ambient environment and volume
2. A separated storage for fm200 fire suppression system
3. Design of pipeline, including placement of conduits and connection
4. Installation, integration of each parts and connection between parts
