Home > products > FM200 Fire Suppression System > Hfc227ea FM200 Fire Suppression System With 4.2Mpa Storage Cylinder Factory direct, quality assurance, best price

Hfc227ea FM200 Fire Suppression System With 4.2Mpa Storage Cylinder Factory direct, quality assurance, best price

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 120L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
Highlight:

fm 200 system

,

fm200 suppression system

Filling Density:
≤950kg/m3
Filling Pressure:
4.2Mpa
Storage Pressure:
4.2Mpa
Pattern Of Extinguishing:
Enclosed Flooding
Zone Management:
Optional
Actuation:
Automatic Or Manual
Filling Density:
≤950kg/m3
Filling Pressure:
4.2Mpa
Storage Pressure:
4.2Mpa
Pattern Of Extinguishing:
Enclosed Flooding
Zone Management:
Optional
Actuation:
Automatic Or Manual
Product Description

Hfc227ea FM200 Fire Suppression System With 4.2Mpa Storage Cylinder





Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤950kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa
9 min working pressure 4.2Mpa





Description:



    1. Multiple management in the control of the whole system

    2. Agent quantity for biggest zone is enough to protect all zones through selector valves

    3. Direct target to expensive machine or delicate device

    4. Short time discharge of extinguishing agent

    5. Preparation for storage room

    6. Space confirmation of placement for cylinder group





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

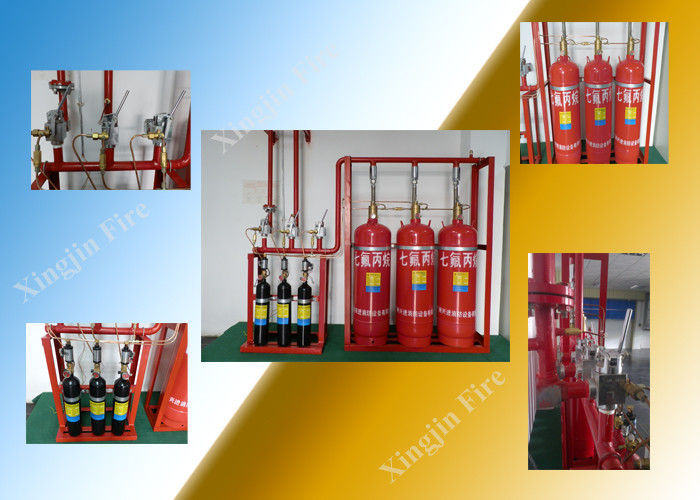

Composition:



    1. Mechanical parts: cylinder with container valve, frame for cylinder group, driving cylinder, frame for driving device, high pressure hose etc. It is mainly used for storing fm200 agent

    2. Electrical parts: smoke detector, heat detector, bell etc.

    3. Pipe fittings: conduit, connector, elbow, flange etc.

Hfc227ea FM200 Fire Suppression System With 4.2Mpa Storage Cylinder Factory direct, quality assurance, best price 0





Competitive Advantage:



It is very efficient for you to protect your possession. Since it is a system, it includes extinguishing device to put out fire in a short time. It means all agent will be discharged in less than 10 seconds. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minutes. It means when a fire happens, there is enough time for people escaping the building. We have listed out two points for customer as reference.



    1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.



    2/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building but with different dimensions or in different floor. Meanwhile, it can reduce the cost based on the original by the least and safe utilization of fire extinguishing gas. Because of the adoption of selective valves that can guide the fire extinguishing gas into the room on fire, so it would be relatively smarter to monitor each room to avoid an accident. It is worthy to mention that the combined rooms should be less than 8 including 8 in accordance with our standard.





Company Introduction

Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.





Hfc227ea FM200 Fire Suppression System With 4.2Mpa Storage Cylinder Factory direct, quality assurance, best price 1


Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
