Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Storage Pressure: |
4.2Mpa |
Zone Management: |
Multiple Rooms |
Standard Of Examination: |
GB25972-2010 |
Pattern Of Extinguishing: |
Enclosed Flooding |
Agent: |
Fm200(htc-227ea Or Heptafluoropropane) |
Actuation: |
Automatic Or Manual |
Storage Pressure: |
4.2Mpa |
Zone Management: |
Multiple Rooms |
Standard Of Examination: |
GB25972-2010 |
Pattern Of Extinguishing: |
Enclosed Flooding |
Agent: |
Fm200(htc-227ea Or Heptafluoropropane) |
Actuation: |
Automatic Or Manual |
4.2Mpa Fm200 System Used For Multiple Rooms Control
Parameter:
| No. | specification | Technical Parameter |
| 1 | Filling pressure | 4.2Mpa |
| 2 | Scale of Protective region for one zone | area:max single-zone is 800m² volume:max single-zone is 3600m³ |
| 3 | Spraying time | ≤10s |
| 4 | Filling density | ≤950kg/m3 |
| 5 | power | DC24V/1.6A |
| 6 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
| 7 | Condition of reserving room for container | temperature: -10~50℃, relative humidity: ≤97% |
| 8 | max working pressure | 5.3Mpa |
| 9 | min working pressure | 4.2Mpa |
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, flammable liquid storage area, etc.
Compositions:

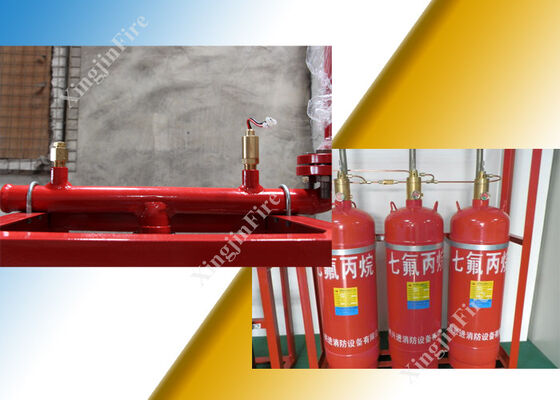

4.2Mpa Fm200 System Used For Multiple Rooms Control is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.
Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
Here attached below is complete composition of whole system
