Guangzhou Xingjin Fire Equipment Co.,Ltd.

Low Toxicity Fm200 Fire Suppression System Electric Insulation

Product Details:
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case or case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Filling Pressure: 4.2Mpa Filling Density: ≤950kg/m3
Type: Pipe Network Storage Pressure: 4.2Mpa
Agent: Fm200(htc-227ea Or Heptafluoropropane) Actuation: Automatic Or Manual
High Light:

fm200 suppression system

,

fm 200 fire fighting system

Product Description

Low Toxicity Fm200 Fire Suppression System Electric Insulation





Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m² volume:max single-zone is 3600m³
3 Spraying time ≤10s
4 Filling density ≤950kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa
9 min working pressure 4.2Mpa





Description:



    Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system. The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.

This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.



Competitive Advantages:



    1. clean gas agent

    2. colorless, tasteless, low toxicity, and non-conductive

    3. no residue or oily deposits

    4. small storage space and easily pressurized in cylinder

    5. compliance with environmental protection requirement

    6. Large range of application area

    7. Management of multiple zones

    8. Efficient fire protection in big region



Simulated diagram:

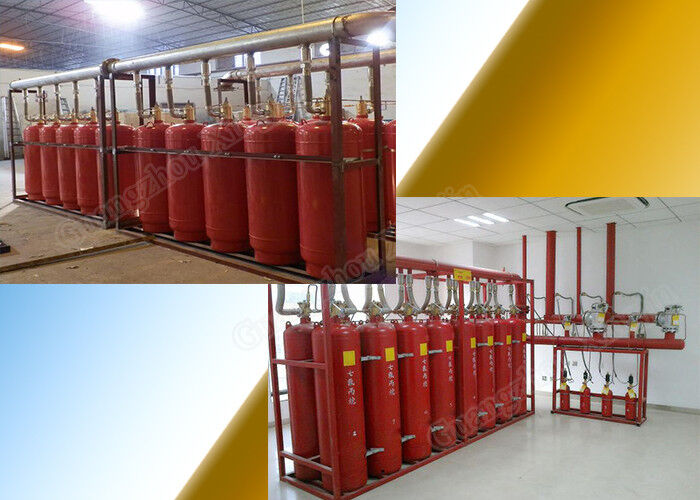

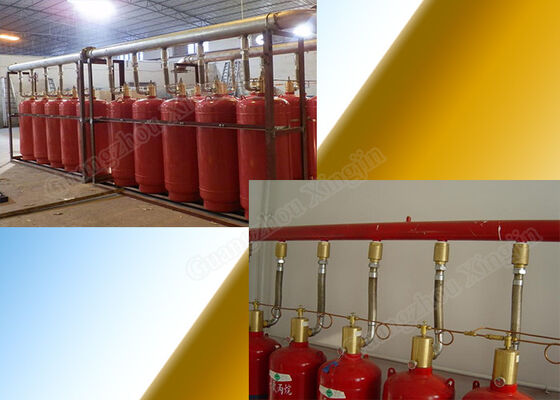

    Below attached is one mimic diagram of piped network type of fm200 automatic fire suppression system, in this mimic diagram, you can see clearly how the pipe fitting equips and how will the whole system look like when it has already finished.



           Low Toxicity Fm200 Fire Suppression System Electric Insulation 0





Composition:



    Pipe network fm200 fire suppression device is composed of the following components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and selective valve should be got rid of from its composition.
