Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: 70L/90L/100L/120L/180L
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Standard Of Examination: |
GB25972-2010 |
Zone Management: |
Solo Zone |
Max Working Pressure: |
4.2Mpa |
Pattern Of Extinguishing: |
Enclosed Flooding |
Agent: |
Fm200 |
Working Temperature: |
0~50℃ |
Standard Of Examination: |
GB25972-2010 |
Zone Management: |
Solo Zone |
Max Working Pressure: |
4.2Mpa |
Pattern Of Extinguishing: |
Enclosed Flooding |
Agent: |
Fm200 |
Working Temperature: |
0~50℃ |
Cabinet Fm200 Suppression Used For Solo Zone
Parameter:
No. | specification | Technical Parameter |
1 | Filling pressure | 2.5Mpa |
2 | Relief pressure | 5.0±0.225Mpa |
3 | Spraying time | ≤10s |
4 | Working temperature | 0~50℃ |
5 | Power | DC24V/1.6A |
6 | max working pressure | 4.2Mpa |
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.
Compositions:

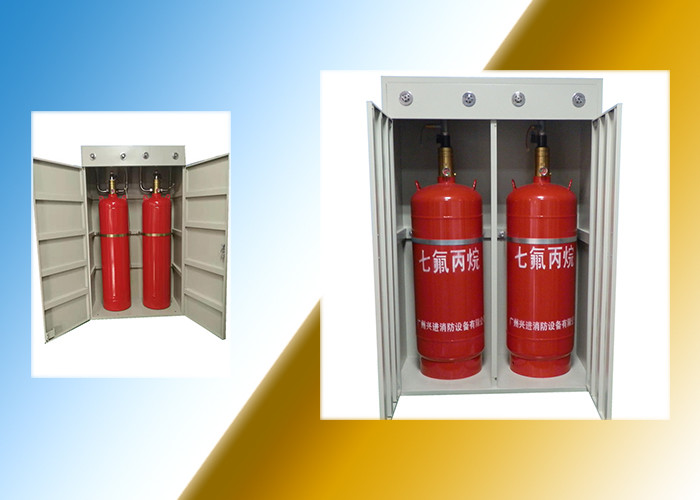

Cabinet Fm200 Suppression Used For Solo Zone is mainly composed by two parts. Extinguishing devices and electrical accessories.
Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose and solenoid actuator and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
