|Place of Origin:||China|
|Certification:||GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1|
Payment & Shipping Terms:
|Minimum Order Quantity:||2set system|
|Packaging Details:||Plywood case,Paper carton|
|Delivery Time:||10-15 working days after payment or receipt of L/C|
|Payment Terms:||L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card|
|Supply Ability:||30000 set per month|
|With Pipes Or Without Pipes:||Without Pipes||Type Of Fm200 System:||Cabinet Type|
|Printed Color:||Mainly Red And Silver||Pattern Of Extinguishing:||Enclosed Flooding|
|Agent:||Fm200(htc-227ea Or Heptafluoropropane)||Filling Pressure:||2.5Mpa|
2.5Mpa FM200 Cabinet System,
Fire Extinguishing FM200 Cabinet System

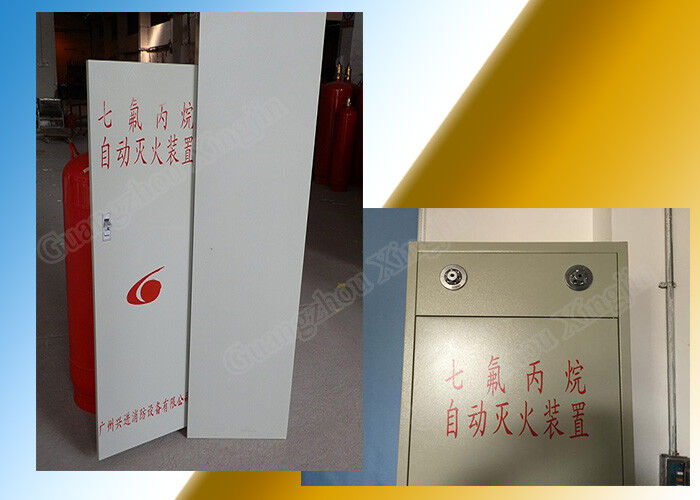

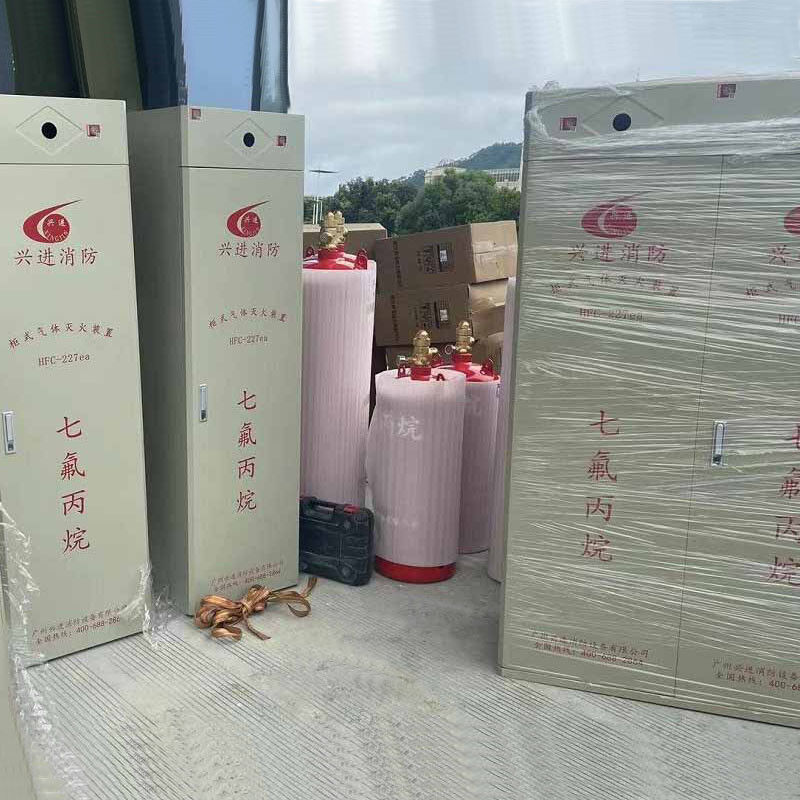

2.5Mpa Cabinet Type Fm200 Fire Extinguishing System Without Pipes
|6||max working pressure||4.2Mpa|
FM200 gas is a kind of colorless, odorless and clean fire agent used widely all around the world. Compared to other kinds of fire agents like co2 and halon, FM200 is more environmentally friendly for it will not hurt the ozone layer but others will. FM200 gas has ozone depleting possibility of zero. What’s more, FM200 has all advantages that other fire agents have, like nontoxic, noncorrosive and electrical insulated so that FM200 gas is considered as the optimum substitute to halon series.
FM200 can put out fire efficiently in 10s without leaving any residues, so users do not need more money and time to clean up your places after the fm200 fire system is activated.The star products of our company is pipe network fm200 fire suppression system, cabinet type fm200 fire suppression system and hanging type fm200 fire suppression system.
In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.
Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.
It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall.
Below attached is one mimic diagram of single cabinet type of fm200 automatic fire suppression system,
1. One cabinet or multiple cabinet type fm200 for one zone
2. Enough space in protective region to place it, such as corner or edge of wall
3. Attention to compare height of cabinet and room
4. The protected zone's porprotion should be less than 500 square metres, and the volume should be at
most 1600 cubic metres.
