Guangzhou Xingjin Fire Equipment Co.,Ltd.

Industrial Heptafluoropropane Fire Suppression Fm200 Cabinet Type

Product Details:
Place of Origin: China
Brand Name: xingjin
Payment & Shipping Terms:
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case,Paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card
Supply Ability: 3,00 set per month
  • Detail Information
  • Product Description

Detail Information

Weight: 80kg Capacity Of Cylinder: 150L
Dimension(mm): 550*550*1900 Volume Of Cabinet: 575L
Agent: Fm200(htc-227ea Or Heptafluoropropane) Type Of Fm200 System: Cabinet Type
High Light:

gas fm 200


auto fire suppression system


heptafluoropropane fm200 fire system

Product Description

Industrial Heptafluoropropane Fire Suppression Fm200 Cabinet Type




No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa





    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.


    Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and also it saves much money for employment to supervise the protective area.





    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.


    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.





    1. Mechanical parts: cylinder with container valve, cabinet, high pressure hose etc.

    2. Electrical parts: smoke detector, heat detector, bell etc.



Competitive advantage:


    1. Effective firefighting in relatively small region

    2. Simple assembly of device without pipeline

    3. No extra space to store device

    4. Convenient transportation and easy installation

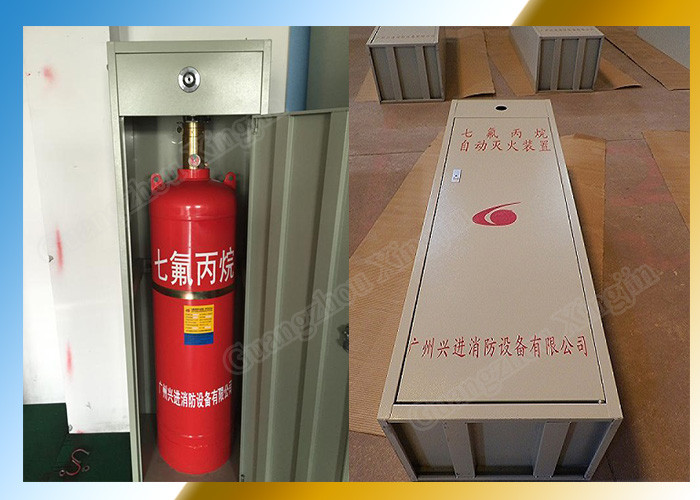

  Industrial Heptafluoropropane Fire Suppression Fm200 Cabinet Type 0





   Users should make a calculation first to estimate the protected zone's volume and proportion, because the cabinet type fire suppression system can just cover proportion at most 500 squre metres and volume st most 1600 cubic metres.

   Though this system is easy installation, if there are some problem, please call us to fix them and do not touch anything.
