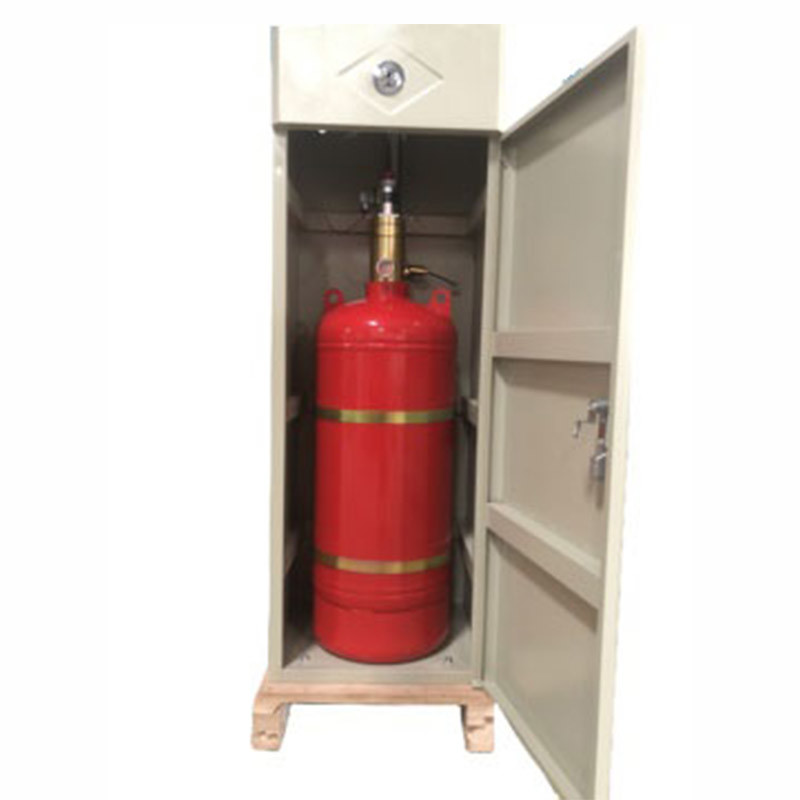

Fire Suppression Fm200 Fire Extinguishing System Lightweight Design with Low Maintenance

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

gas fire suppression system

,

gas fm 200

,

art gallery fire extinguishing system

Pattern Of Extinguishing:
Overall Flooding
Capacity Of Cylinder:
100L
Gross Weight:
64kg
Dimension(mm):
550*450*1650
Relief Pressure:
5.0±0.225Mpa
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Overall Flooding
Capacity Of Cylinder:
100L
Gross Weight:
64kg
Dimension(mm):
550*450*1650
Relief Pressure:
5.0±0.225Mpa
Actuation:
Automatic Or Manual
Product Description

Fire Suppression Fm200 Fire Extinguishing System For Museum / Art Gallery





Parameter:



No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa





Description:



    1. Accurate control of protection zone

    2. No need for employment of monitor staff

    3. Manual or electromagnetic manipulation and mechanical manipulation

    4.Electric insulation, utilization for extinguishing of electrical combustion

    5. No residue and pollution inside protection zone

    6. No damage to ozone layer





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Parameter:



No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa





Attention:



    1. One cabinet or multiple cabinet type fm200 for one zone

    2. Enough space in protective region to place it, such as corner or edge of wall

    3. Attention to compare height of cabinet and room





Advantages:



   Cabinet fm200 fire suppression system has a large number of advantages, and here is going to have a brief instruction of its strong points:



1/ Quick response. Since there is no long distance transportation of pipes, so fm200 gas can be directly discharged into protection zone. Meanwhile, its spraying time is less than 8 second. So it will save more time relatively when the fire happens.



2/ Convenient installation. Compared with pipe network system, cabinet system would be relatively simple to conduct installation. After installation of control panels and electric components, left work is just to connect it with one cabinet fire extinguishing device or devices. But one room should not be matched with more than 4 pieces of it because of the limitation of the output current of a control panel.



3/ Lower cost. Obviously, the price would be cheaper than pipe network type for the protection zone which just needs one single cylinder, because there is no need to consider about the expense of pipes and pipe fittings, also the cost of manpower for this part.

  Fire Suppression Fm200 Fire Extinguishing System Lightweight Design with Low Maintenance 0
