One Zone Fm200 Fire Suppression Systems Totally Automatic System

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5,

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

gas fire suppression system

,

gas fm 200

,

one zone fm200 fire suppression systems

Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Spraying Time:
≤10s
Actuation:
Automatic Or Manual
Pattern Of Extinguishing:
Enclosed Flooding
Printed Color:
Silver(cabinet), Red(cylinder)
Relief Pressure:
5.0±0.225Mpa
Structure:
No Pipeline
Product Description

One Zone Fm200 Fire Suppression Systems Totally Automatic System





Description:



    1. Totally automatic system

    2. Accurate control of protection zone

    3. No need for employment of monitor staff

    4. Manual or electromagnetic manipulation and mechanical manipulation

    1. Preparation for storage room

    2. Space confirmation of placement for cylinder group





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, and the ship's engine room, cargo hold, etc.



Composition:



  The cabinet type fm200 fire suppression system has an easy and simple composition. The fire suppression system is consist of two part, one is the fire extinguishing device, and the other is electrical elements. Because there is another special part for introducing the electrical elements, so here just going to introduce the fire extinguishing device.

  The component of the device is: fm200 agent, fm200 cylinder, container valve, flexible hose, liquid flow check, nozzle and the cabinet.





Parameter:



No. specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 max working pressure 4.2Mpa



Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Different from piped network type of fm200 automatic fire suppression system, it will be simple to install. Because there is no pipeline installation. If your protective zone is relatively small and there is no multiple zones more than three, it will save much money than the former.





Working principle:



   The cabinet type fm200 fire suppression system uses the whole flooding way to put out the fire, and the sequence of activating the fire suppression system is as the followings:

   1. Smoke detector or the heat detector feels the difference and send the signal to the control panel

   2. After receiving the signal, the control panel activates the alarm bell to inform people to escape quickly

   3. Both smoke and heat detector send back the signal ( only when both type of detector send back signal

       that will the control panel believe that there is a fire and start the fire extinguishing device.)

   4. After a few seconds delay, the control panel activates the fire extinguishing system

   5. The container valve opens which lets the fm200 go through the flexible hose and spray out for putting

       out a fire

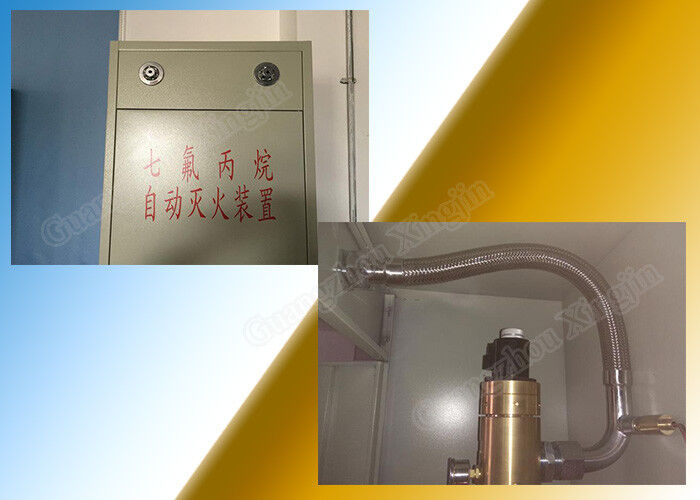

    One Zone Fm200 Fire Suppression Systems Totally Automatic System 0



Company Introduction:



Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and the program design team, the skilled installation team, the quality detection team, and the after-sale service team are among the knowledgeable and experienced employees who are committed to the research and development of HFC-227ea (FM200) products. Currently, it is normal practice to use the FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube. Due to the high-quality products and services we offer, as well as our reliable reputation, our company is well-liked by the customers in China.

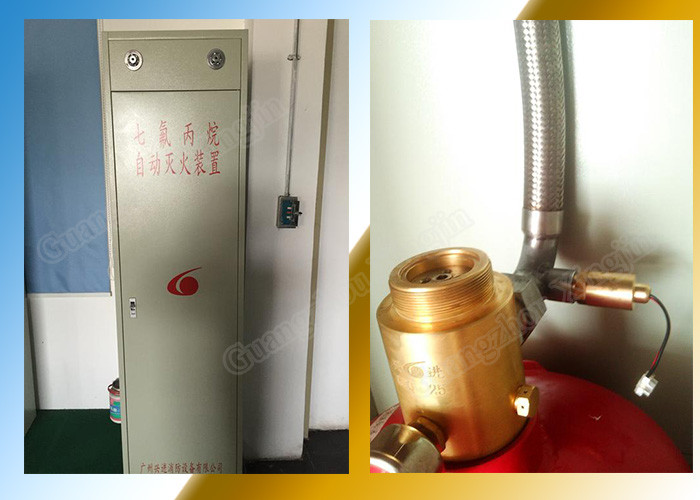

One Zone Fm200 Fire Suppression Systems Totally Automatic System 1
