Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: 70L/90L/100L/120L/150L
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Storage Pressure: |
5.6Mpa |
Zone Management: |
One Zone |
Max Working Pressure: |
8.0Mpa |
Min Working Pressure: |
4.6Mpa |
Pattern Of Extinguishing: |
Enclosed Flooding |
Standard Of Examination: |
GB25972-2010 |
Storage Pressure: |
5.6Mpa |
Zone Management: |
One Zone |
Max Working Pressure: |
8.0Mpa |
Min Working Pressure: |
4.6Mpa |
Pattern Of Extinguishing: |
Enclosed Flooding |
Standard Of Examination: |
GB25972-2010 |
Single Zone 5.6Mpa Hfc227Ea Fire Suppression Systems For Cargo Hold
Description:
1. Totally automatic system
2. Accurate control of protection zone
3. No need for employment of monitor staff
4. Manual or electromagnetic manipulation and mechanical manipulation
5. Multiple management in the control of the whole system
6. Agent quantity for biggest zone is enough to protect all zones through selector valves
7. Direct target to expensive machine or delicate device
Parameter:
No. | specification | Technical Parameter |
1 | Filling pressure | 5.6Mpa |
2 | Scale of Protective region for one zone | area:max single-zone is 800m² volume:max single-zone is 3600m³ |
3 | Spraying time | ≤10s |
4 | Filling density | ≤1080kg/m3 |
5 | power | DC24V/1.6A |
6 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
7 | Condition of reserving room for container | temperature: -10~50℃, relative humidity: ≤97% |
8 | max working pressure | 8.0Mpa |
9 | min working pressure | 4.6Mpa |
Applications:
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Components:
Obviously, a complete fire suppression system is formed by three parts, one is electrical elements part, one is pipe fitting part and last the fire extinguishing device part. Because there is a separated part talking electrical elements, as well as there is no need to talk about the pipe fitting, so here will introduce the fire extinguishing part only.

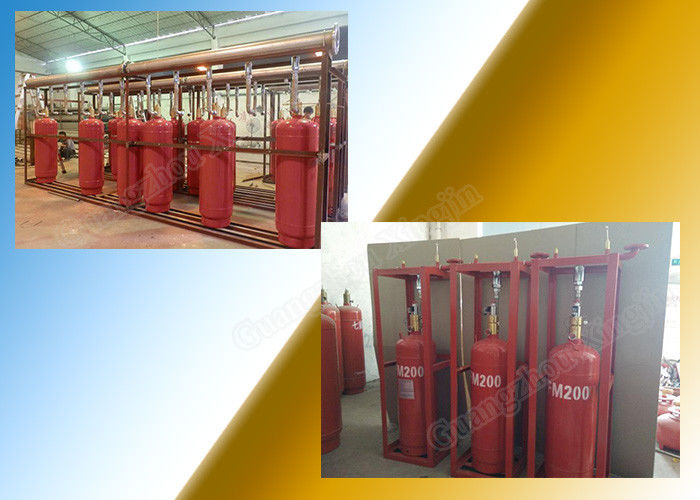

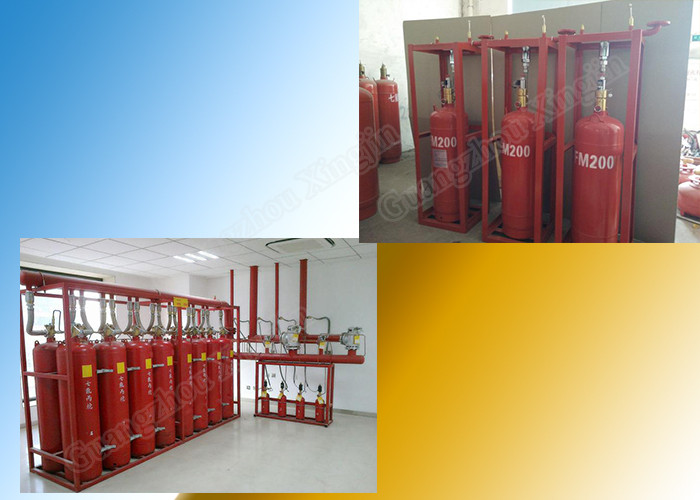

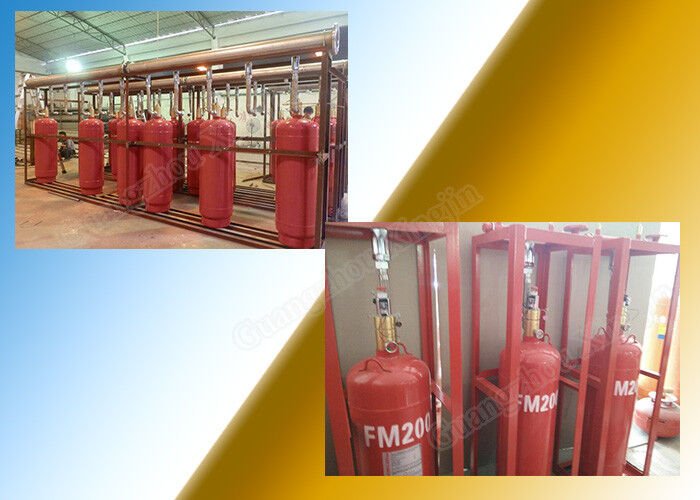

The fire extinguishing device is formed by:
1. Fm200 cylinder
2. Fm200 fire agent
3. Container valve
4. Flexible hose
5. Liquid flow check valve
6. Gas flow check valve
7. Gas control pipe
8. Cylinder frame
9. Driving device frame
10. Nitrogen - pressure driving device
11. Manifold
12. Safety valve
13. Pressure switch
14. Selective valve
Competitive Advantage:
In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.
Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.
It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.
