120L Hfc 227ea Fire Extinguishing System For Independent Zone Lightweight Design With Low Maintenance

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 120L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

gas fire suppression system

,

auto fire suppression system

,

120l hfc 227ea fire extinguishing device

Dimension(mm):
550*550*1900
Capacity Of Cylinder:
120L
Relief Pressure:
5.0±0.225Mpa
Extinguishing Agent:
Fm200
Weight:
73kg
Pattern Of System:
Totally Automatic
Dimension(mm):
550*550*1900
Capacity Of Cylinder:
120L
Relief Pressure:
5.0±0.225Mpa
Extinguishing Agent:
Fm200
Weight:
73kg
Pattern Of System:
Totally Automatic
Product Description

120L Hfc 227ea Fire Extinguishing System For Independent Zone





Parameter:



No. Specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 Max working pressure 4.2Mpa





Description:



    Fm200(hfc227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.





Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Compositions:



   The fire extinguishing device should be used with electrical elements better. A complete fire suppression system should include two parts, one is electrical elements and the other is fire extinguishing device.

   The fire extinguishing device includes: fm200 fire agent, fm200 cylinder, cabinet, container valve, solenoid actuator, flexible hose and nozzle.

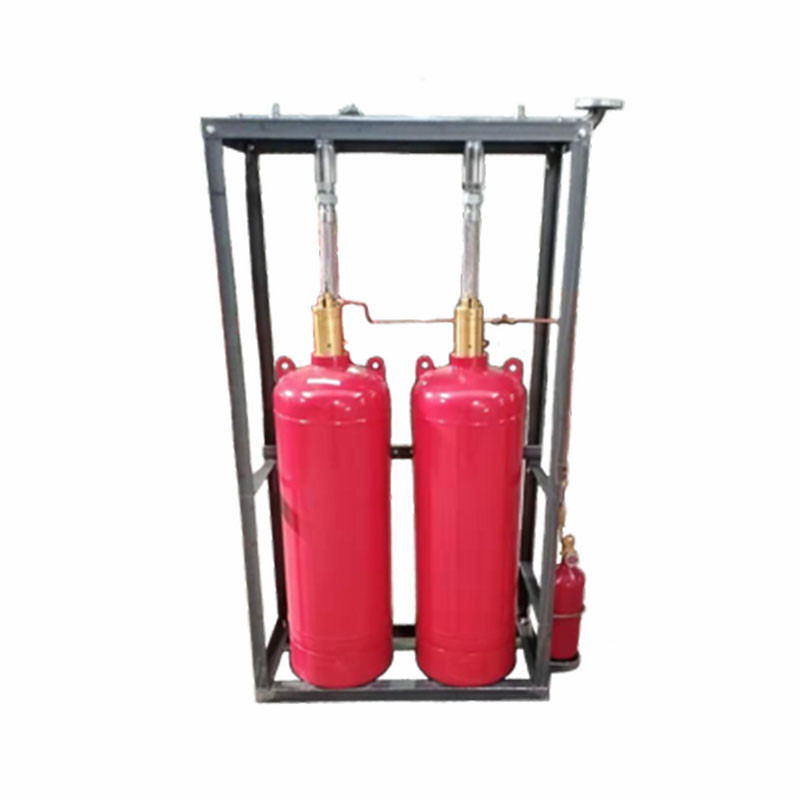

  120L Hfc 227ea Fire Extinguishing System For Independent Zone Lightweight Design With Low Maintenance 0





Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.



    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.



    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.





Attentions:



1. The volume and proportion of the protected zone for a cabinet type fm200 fire suppression system should be at most 500 square metres and 1600 cubic metres.



Company Introduction

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.

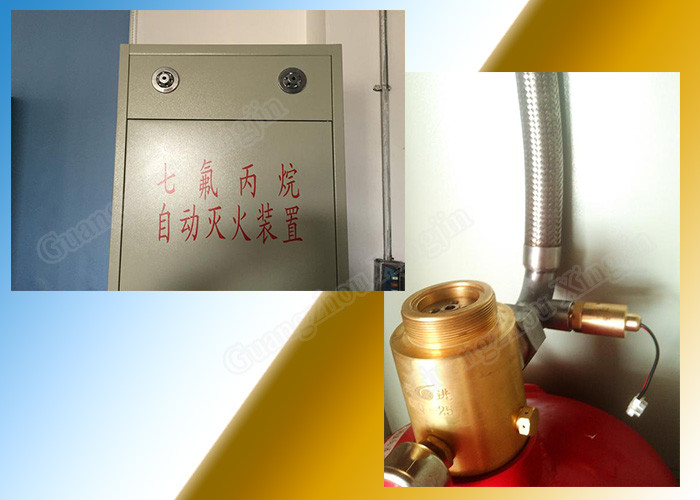

120L Hfc 227ea Fire Extinguishing System For Independent Zone Lightweight Design With Low Maintenance 1
