Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Payment & Shipping Terms
Minimum Order Quantity: 2 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Nitrogen Pressure Of Driving Device: |
6.0±1.0Mpa(20℃) |
Spraying Time: |
≤10s |
Capacity Of Cylinder: |
90L |
Storage Pressure: |
5.6Mpa |
Agent: |
Fm200(htc-227ea Or Heptafluoropropane) |
Actuation: |
Automatic Or Manual |
Nitrogen Pressure Of Driving Device: |
6.0±1.0Mpa(20℃) |
Spraying Time: |
≤10s |
Capacity Of Cylinder: |
90L |
Storage Pressure: |
5.6Mpa |
Agent: |
Fm200(htc-227ea Or Heptafluoropropane) |
Actuation: |
Automatic Or Manual |

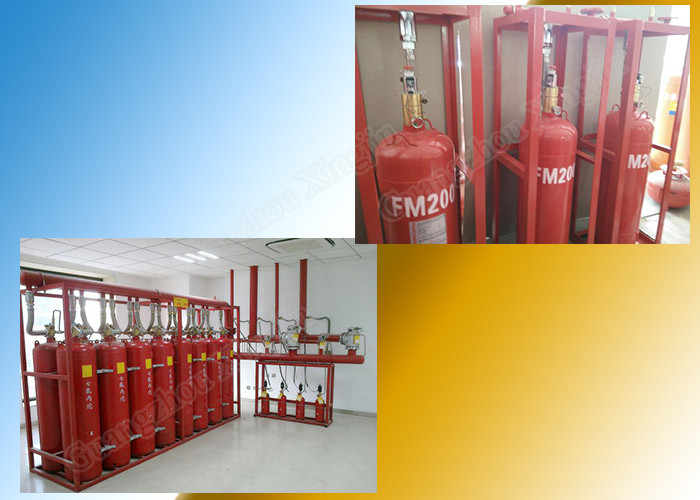

Tasteless Fm-200 Fire Suppression Systems Dc24V For Electronic Computer Room
Description:
Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.
Combined with extinguishing device and electronic accessories, the whole system can be actuated automatically. It can monitor the situation of protective region through detectors and then it can also start the extinguishing device through solenoid actuator automatically. So the whole system can achieve automation totally. Therefore, it can avoid that there is no one who notice the fire when it happens and it also saves much money for employment to supervise the protective area.
Management of Multiple zones is also in the safe control of the whole system. We can use one system to protect multiple zones through selective valves. It can let the whole system alternative aiming at different protective zone. Agent can be discharged into where the fire happens. It will be very efficient to put out fire in short time. One thing that need to mention, is that a little room should be prepare to be as storage space for the whole system.
FM-200 fire suppression systems (also known as HFC-227ea) are clean agent fire suppression systems designed to quickly extinguish fires in enclosed spaces such as server rooms, data centers, laboratories, and other high-tech facilities. These systems use a non-toxic, non-corrosive, and environmentally friendly gas called FM-200 (heptafluoropropane) that can extinguish fires within seconds, eliminating the need for messy and harmful chemicals or water.
FM-200 gas is stored in high-pressure cylinders and is released quickly through a pipe network and sprinkler or nozzle heads when a fire is detected. The gas displaces the oxygen in the enclosed space, reducing the fuel source for the fire and extinguishing it without damaging equipment or the environment.
FM-200 fire suppression systems are ideal for areas where sensitive equipment or materials are present as it does not leave any residue or cause any damage to electronics and other equipment. It is also safe for humans to breathe and does not affect the ozone layer.
FM-200 fire suppression systems require regular maintenance and testing to ensure they are in good working condition and can quickly suppress fires in an emergency. Regular inspections by a competent contractor can detect any issues and ensure that the system is ready to operate as intended. These systems offer rapid extinguishing capability, making them an essential part of protecting valuable equipment and property while minimizing disruption to operations.
Parameter:
No. | specification | Technical Parameter |
1 | Filling pressure | 5.6Mpa |
2 | Scale of Protective region for one zone | area:max single-zone is 800m2 volume:max single-zone is 3600m3 |
3 | Spraying time | ≤10s |
4 | Filling density | ≤1080kg/m3 |
5 | power | DC24V/1.6A |
6 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) |
7 | Condition of reserving room for container | temperature: -10~50℃, relative humidity: ≤97% |
8 | max working pressure | 8.0Mpa |
9 | min working pressure | 4.6Mpa |
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.
Compositions:
90l Model Hfc227ea System Worked In 5.6mpa is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.
Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Here attached below is complete composition of whole system,
