Home > products > FM200 Fire Suppression System > Hfc227ea FM200 Fire Automatic Extinguishing System Reasonable Good Price High Quality

Hfc227ea FM200 Fire Automatic Extinguishing System Reasonable Good Price High Quality

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 system

,

fm 200 fire fighting system

Filling Density:
≤950kg/m3
Agent:
Fm200
Standard Of Examination:
GB25972-2010
Capacity Of Cylinder:
180L
Max Working Pressure:
5.3Mpa
Storage Pressure:
4.2Mpa
Filling Density:
≤950kg/m3
Agent:
Fm200
Standard Of Examination:
GB25972-2010
Capacity Of Cylinder:
180L
Max Working Pressure:
5.3Mpa
Storage Pressure:
4.2Mpa
Product Description

Clean Gas Fm 200 Extinguishing System Preparation For Storage Room





Description:



    1.Clean gas, colorless and tasteless and non-corrosive

    2. No damage to ozone layer

    3. Totally automatic system

    4. Manual or electromagnetic manipulation and mechanical manipulation

    5. Short time discharge of extinguishing agent

    6. Preparation for storage room



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.



Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m2 volume:max single-zone is 3600m3
3 Spraying time ≤10s
4 Filling density ≤950kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa
9 min working pressure 4.2Mpa






Components:



    Pipe network fm200 fire suppression device is composed of the follow-up components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and the selective valve should be got rid of from its composition.

                                     Hfc227ea FM200 Fire Automatic Extinguishing System Reasonable Good Price High Quality 0





Working principle:



the method of putting out fire: whole flooding



the sample working way: fire happens → the smoke and heat detector send signal back to the control panel

                                        → the control panel gets the signal and activates alarm bell → after a few seconds

                                        delay, the fire extinguishing device activates and put out the fire.



Company Introduction



Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.

Hfc227ea FM200 Fire Automatic Extinguishing System Reasonable Good Price High Quality 1Hfc227ea FM200 Fire Automatic Extinguishing System Reasonable Good Price High Quality 2

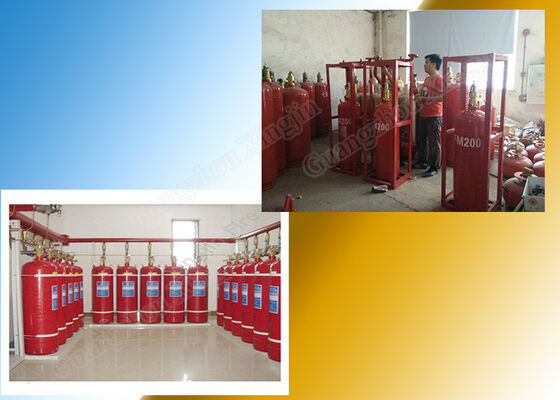

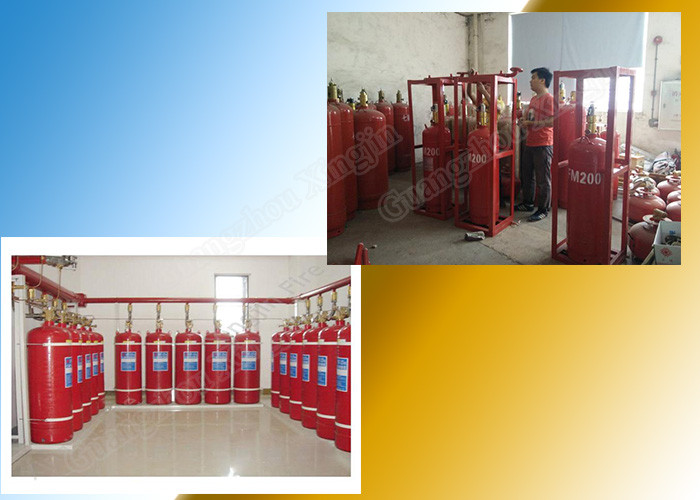

Part Cases Show

• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School, Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City, Tobacco Building, etc.

• In Guangdong province, the project cases are GAC Group, 10086 in Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air Controller, Yingfu Building in Shenzhen, Bank of Communication in Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV Station, etc.

• In Shandong province, the project cases are Lushang Office Building, Lushang Marketing Center, etc.



Why Choose Us

• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.

After-Sale Service

• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.

FAQ

Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.

Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.

Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.

Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
