Guangzhou Xingjin Fire Equipment Co.,Ltd.

Fm200 Clean Agent Fire Suppression System Factory direct, quality assurance, best price

Product Details:
Place of Origin: China
Brand Name: xingjin
Model Number: 70L/90L/100L/120L/150L
Payment & Shipping Terms:
Minimum Order Quantity: 2set system
Price: negotiation
Packaging Details: Plywood case,Paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card
Supply Ability: 3,00 set per month
  • Detail Information
  • Product Description

Detail Information

Filling Pressure: 2.5Mpa Spraying Time: ≤10s
With Pipe Network Or Not: No Pipe Network Pattern Of Extinguishing: Enclosed Flooding
Zone Management: Optional Zone Capacity Of Cylinder: 90L
High Light:

fm 200 fire extinguisher


hfc227ea fire suppression systems


90L HFC227ea Fire Suppression System

Product Description

Hfc227ea Firefighting System of 90L Type For Optional Zones




No. Specification Technical Parameter
1 Filling pressure 2.5Mpa
2 Relief pressure 5.0±0.225Mpa
3 Spraying time ≤10s
4 Working temperature 0~50℃
5 Power DC24V/1.6A
6 Max working pressure 4.2Mpa




    Fm200(htc-227ea) is a kind of colorless and tasteless and non-corrosive and electricity-insulating gas without residue and pollution after extinguishing. And ODP of it is zero. It is a friendly-environment gas to be used for extinguishing. Also, because of such feature, it can be used in special place where electrical fire is easy to happen.




    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.




    Hfc227ea Firefighting System Of 90l Type For Optional Zones is mainly composed by two parts. Extinguishing devices and electrical accessories.


    Extinguishing devices are such things, like cabinet to store extinguishing device, cylinder to fill and store fm200 and flexible hose and solenoid actuator and so on.


    Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.


    These integrated two parts will be efficient to detect and supervise and alarm and extinguish fire automatically.



With the exception of metal fires, one of the agent's advantages in terms of its description is that it may be used for all classes of class fires. It is a clean agent, as well. After being put out, the fire leaves no traces of pollutants.


Another is the expertise of the IG541 extinguishing system in handling critical assets or equipment. Your goods won't suffer any damage as a result. It is an effective fire suppression system that is also reasonably priced.


By doing this, you can properly protect your possessions. It has an extinguishing mechanism built into the system to swiftly put out a fire, preferably in less than 10 seconds. It suggests that all agents will be released in this manner promptly. There will then be extensive flooding. There is a time delay mechanism included as well. It takes two minutes or so. It implies that, in the event of a fire, enough time will be available to safely evacuate everyone.


It can make it possible for many zones to be safely managed by one system. This will result in significant cost savings for expansive and multiple zones.


Mimic Diagram

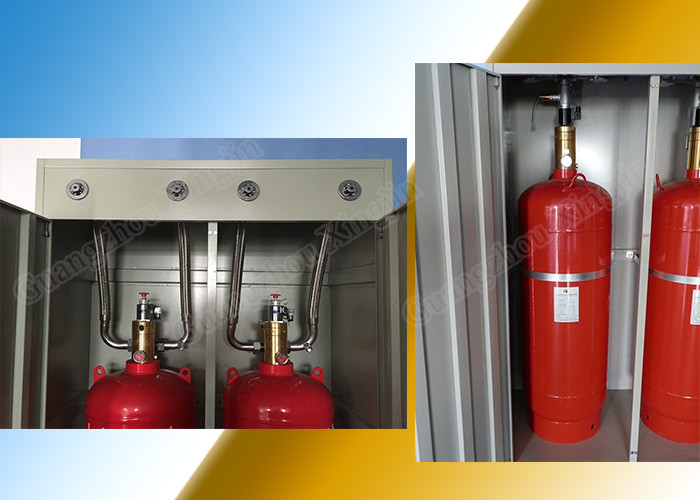

Multiple cylinders for one zone


Fm200 Clean Agent Fire Suppression System Factory direct, quality assurance, best price 0

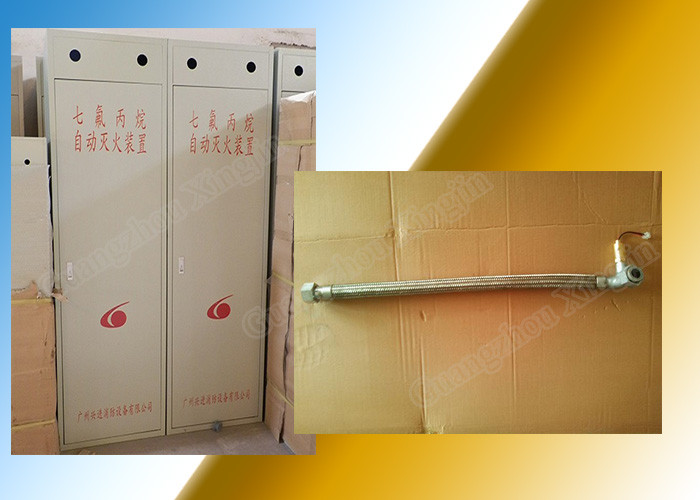

Multiple cylinders for multiple zones


Fm200 Clean Agent Fire Suppression System Factory direct, quality assurance, best price 1



Company Introduction


Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.



Fm200 Clean Agent Fire Suppression System Factory direct, quality assurance, best price 2


Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
