4.2Mpa 40L Manual or Automatic Actuation FM200 Fire Suppression System and HFC-227ea Fire Extinguishing System

The Manual / Automatic FM200 Fire Suppression System (4.2 MPa, 40 L Type) is a fully integrated fire protection solution designed for reliable, rapid, and residue-free extinguishing of fires in sensitive and high-value environments. The system combines extinguishing devices, pipe fittings, and electrical accessories into a single coordinated unit capable of automatic detection, alarm, and discharge.

FM200 (HFC-227ea) is a colorless, tasteless, non-corrosive, and electrically insulating extinguishing agent that leaves no residue and causes no pollution after discharge. Its Ozone Depletion Potential (ODP) is zero, making it an environmentally friendly choice for fire suppression. These characteristics allow it to be used safely in special locations where electrical fires are likely to occur.

Combined with the extinguishing device and electronic accessories, the entire system can be actuated automatically. It monitors the protected region through detectors and can trigger the extinguishing device via a solenoid actuator without manual intervention. This achieves full automation, eliminating the risk of a fire going unnoticed when no personnel are present and reducing the cost of staffing for continuous supervision.

Management of multiple zones is also within the safe control of the system. A single system can protect multiple zones through selective valves, allowing the system to target different protected areas in turn. The agent is discharged directly into the zone where the fire occurs, ensuring efficient and rapid extinguishing. Note that a small room should be reserved as storage space for the complete system.

The system is suitable for protecting critical and sensitive facilities, including:

• Electronic computer rooms and data processing centers
• Telecommunications facilities and process control rooms
• Expensive medical equipment and industrial equipment
• Libraries, museums, and art galleries
• Clean rooms and anechoic chambers
• Emergency power facilities and flammable liquid storage areas

It is also well suited to locations where fire is likely to occur, such as:

• Paint-spraying production lines and aging electrical equipment
• Rolling machines, printing machines, and oil switches
• Oil-immersed transformers and melt impregnating tanks
• Large generators and drying equipment
• Cement production processes involving pulverized coal
• Ship engine rooms and cargo holds

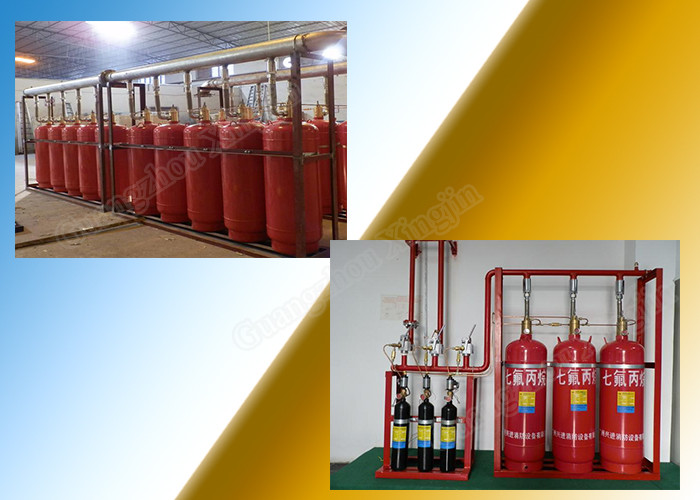

The FM200 Fire Suppression System (4.2 MPa, 40 L Type) is mainly composed of three parts: extinguishing devices, pipe fittings, and electrical accessories.

These include the cylinder used to fill and store FM200, the frame, and the driving device (nitrogen cylinder) that triggers the storage cylinder to discharge the agent.

These are the conduits that connect the extinguishing device and guide the agent into the protected zone, such as high-pressure galvanized steel pipe, flanges, and elbows.

These components detect and monitor the entire protected area, control the whole system, warn occupants to evacuate, and prevent fire expansion.

Together, these three integrated parts efficiently detect, supervise, alarm, and extinguish fire automatically.

The mimic diagram below illustrates the layout and configuration of the FM200 Fire Suppression System (4.2 MPa, 40 L Type).
