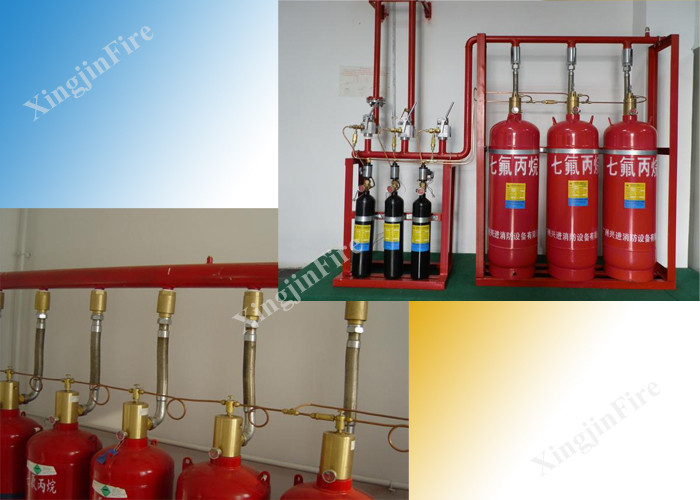

Enclosed Flooding FM 200 Suppression System Piped for Single Zone

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

firefighting equipments

,

fire safety solutions

,

single zone fm 200 suppression system

Power:
DC24V/1.6A
Spraying Time:
≤10s
Type:
Piped
Pattern Of Extinguishing:
Enclosed Flooding
Zone Management:
Single Zone
Actuation:
Automatic Or Manual
Power:
DC24V/1.6A
Spraying Time:
≤10s
Type:
Piped
Pattern Of Extinguishing:
Enclosed Flooding
Zone Management:
Single Zone
Actuation:
Automatic Or Manual
Product Description

Enclosed Flooding FM 200 Suppression System Piped for Single Zone





Parameter:



No. specification Technical Parameter
1 Filling pressure 4.2Mpa 5.6Mpa
2 Scale of Protective region for one zone area:max single-zone is 800m2 volume:max single-zone is 3600m3
3 Spraying time ≤10s
4 Filling density ≤950kg/m3 ≤1080kg/m3
5 power DC24V/1.6A
6 Nitrogen Pressure of Driving Device 6.0±1.0Mpa(20℃)
7 Condition of reserving room for container temperature: -10~50℃, relative humidity: ≤97%
8 max working pressure 5.3Mpa 8.0Mpa
9 min working pressure 4.2Mpa 4.6Mpa





Description:



   Fm200 fire suppression is one of the competitive system among the fire suppression systems. Because of its clean and environmentally friendly nature, this system is known by more and more people all around the world. Moreover, fm200 fire suppression system now is considered as the best substitute to halon series.

   Fm200 fire suppression system is odorless and tasteless. Besides, it has its standard concentration for putting out a fire. Usually, the concentration reach 9% is enough to protect a occupied protected zone. In some special cases, the concentration will reach 10% and do harm to our human body if it remains in the protected zone for a long seconds. Thus the common concentration of fm200 fire suppression is 9%.



Applications:



    Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.



    The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.





Competitive Advantage:



    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.





Working principle:



    Here is the illustration of working principle to whole system,



                  Enclosed Flooding FM 200 Suppression System Piped for Single Zone 0





Compositions:



   The pipe network type fm200 fire suppression system is a little complicated, and its composition is like the following list:



1. fm200 agent

2. fm200 cylinder

3. container valve

4. flexible valve

5. gas control pipe

6. liquid flow check valve

7. gas flow check valve

8. manifold

9. safety valve

10. nitrogen pressure driving device

11. selective valve

12. pressure switch

13. nozzle

14. flange and elbow
