Industrial 70L Model FM200 Gas Suppression System Hfc 227 Gas

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Model Number: 70L/90L/100L/120L/150L

Payment & Shipping Terms

Minimum Order Quantity: 2 set system

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 15-20 working days after payment or receipt of L/C

Payment Terms: T/T, L/C

Supply Ability: 30000 set system

Get Best Price
Product Details
High Light:

fm 200 suppression system

,

fire safety solutions

,

industrial 70l gas suppression system

Storage Pressure:
4.2Mpa
Capacity Of Cylinder:
70L
Actuation:
Automatic Or Manual
Agent:
Fm200
Power:
DC24V/1.6A
Filling Pressure:
4.2Mpa
Storage Pressure:
4.2Mpa
Capacity Of Cylinder:
70L
Actuation:
Automatic Or Manual
Agent:
Fm200
Power:
DC24V/1.6A
Filling Pressure:
4.2Mpa
Product Description

Industrial 70L Model FM200 Gas Suppression System Hfc 227 Gas




Parameter:


No.specificationTechnical Parameter
1Filling pressure4.2Mpa
2Scale of Protective region for one zonearea:max single-zone is 800m2 volume:max single-zone is 3600m3
3Spraying time≤10s
4Filling density≤950kg/m3
5powerDC24V/1.6A
6Nitrogen Pressure of Driving Device6.0±1.0Mpa(20℃)
7Condition of reserving room for containertemperature: -10~50℃, relative humidity: ≤97%
8max working pressure5.3Mpa
9min working pressure4.2Mpa



Competitive Advantage:

    In terms of description of agent, one of its competent advantages is that it can be used for all kinds of class fires except metal fire. And it is clean agent. There is no residue and pollution after extinguishing.

    Another one is that fm200 extinguishing system is special for critical assets or device. It will have no damage for your property. Relatively, it is cheap and effective to be chosen as fire suppression system.

    It is very efficient for you to protect your possession. Since it is a system, it include extinguishing device to put out fire at short time, specially, shorter than 10 second. It means all agent will be discharged in so short time. Then it will be flooding overall. In addition, it has time-delay mechanism. It is around 2 minute. It means when fire happens, there is enough time left to evacuate people from hazardous place.

    It can let multiple zones are protectively in the control of one system. Then it will save much money for big and multiple zones.


Working principle:

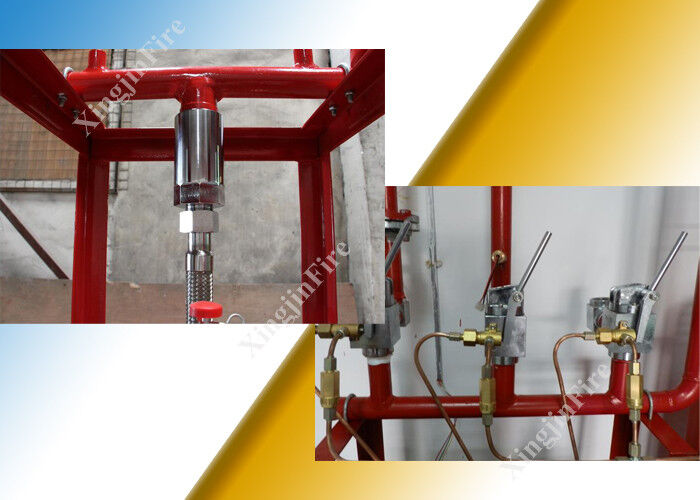

    Here is the illustration of working principle to whole system,

                     Industrial 70L Model FM200 Gas Suppression System Hfc 227 Gas 0


Compositions:

    Pipe network fm200 fire suppression device is composed of the following components: fm200 agent, fm200 cylinders, container valves, flexible hoses, liquid flow check valves, a set of manifold, a safety valve, pressure switch, nitrogen driving device(s), driving device frame, gas control pipe, gas flow check valves(it depends), selective valves(it depends), a pair of elbows and flanges, nozzles.
If one set device needs to protect multiple protected zones, its composition is as above. However, if one set system just needs to protected single protected zone, the gas flow check valve and selective valve should be got rid of from its composition.

Simulated diagram:

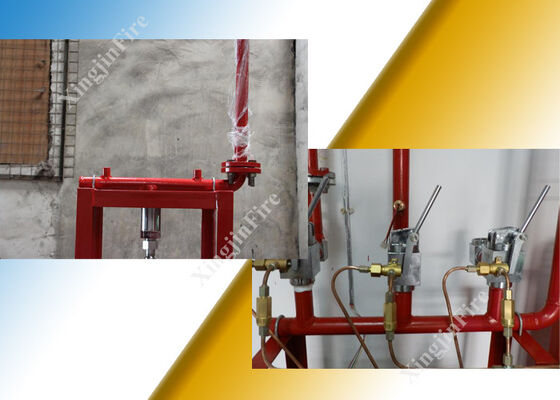

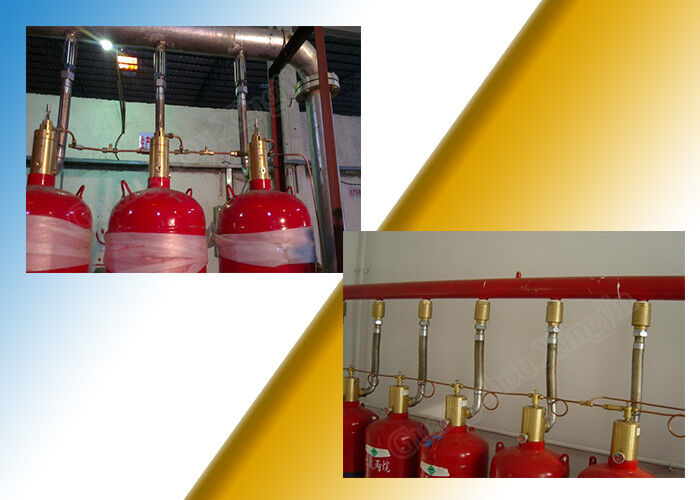

    Below attached is one mimic diagram of 4.2Mpa 70L Model Fm200 Firefighting System


              Industrial 70L Model FM200 Gas Suppression System Hfc 227 Gas 1

            Industrial 70L Model FM200 Gas Suppression System Hfc 227 Gas 2


Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


Industrial 70L Model FM200 Gas Suppression System Hfc 227 Gas 3

Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.

FAQ:

Q: What is the brand name of FM200 Hanging System?
A: The FM200 Hanging System is manufactured by Guangzhou Xingjin Fire Equipment Co.,Ltd.
Q: Where is the FM200 Hanging System made?
A: The FM200 Hanging System is made in Guangzhou, Guangdong, China.
Q: What models are available for FM200 Hanging System?
A: The FM200 Hanging System is available in 8L/10L/16L/20L/30L/40L models.
Q: How to install the FM200 Hanging System?
A: Please refer to the installation manual for detailed instructions on how to install the FM200 Hanging System.
Q: What are the advantages of FM200 Hanging System?
A: The FM200 Hanging System is highly reliable and efficient, and is designed to quickly extinguish fires and protect property.
