|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set system|
|Packaging Details:||Plywood case or box case|
|Delivery Time:||10-15 working days|
|Payment Terms:||L/C, D/P, T/T, Western Union, Paypal, Credit card|
|Supply Ability:||300 sets per month|
|Working Temperature:||-10~50℃||Relative Humidity:||≤97%|
|Standard Of Examination:||GB25972-2010||Capacity Of Cylinder:||120L|
|Pattern Of Extinguishing:||Enclosed Flooding||Type:||Conduit|
fm 200 suppression system,
fm200 gas suppression system 120L
120L Model Conduit Fm200 Gas Suppression System GB25972-2010
|2||Scale of Protective region for one zone||area:max single-zone is 800m2 volume:max single-zone is 3600m3|
|6||Nitrogen Pressure of Driving Device||6.0±1.0Mpa(20℃)|
|7||Condition of reserving room for container||temperature: -10~50℃, relative humidity: ≤97%|
|8||max working pressure||5.3Mpa||8.0Mpa|
|9||min working pressure||4.2Mpa||4.6Mpa|
1. clean gas agent
2. colorless, tasteless, low toxicity, and non-conductive
3. no residue or oily deposits
4. small storage space and easily pressurized in cylinder
5. compliance with environmental protection requirement
6. Large range of application area
7. perfect protection of apparatus or zones
Electronic computer room, a data processing center, telecommunications facilities, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

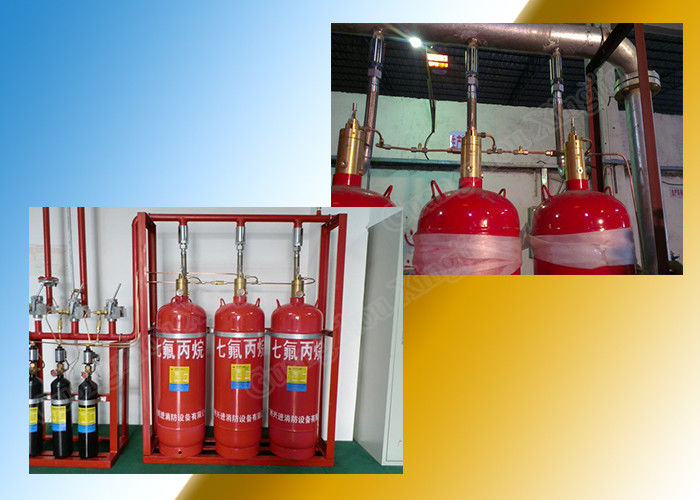

FM200 Gas Suppression System formed with conduit in 120L model is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

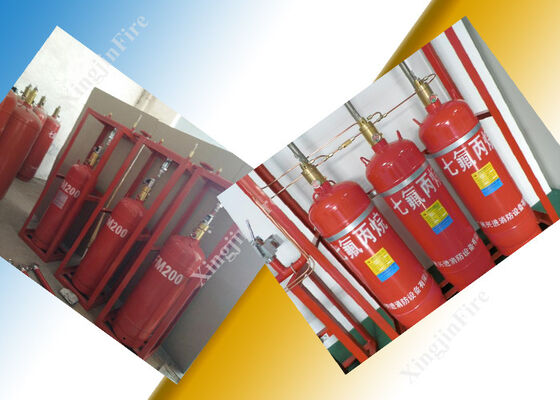

Extinguishing devices are such things, like cylinder to fill and store fm200, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

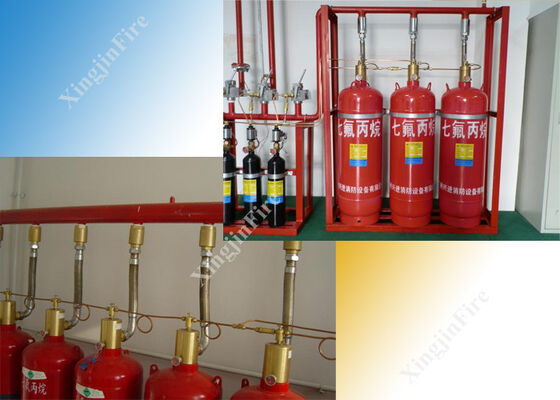

Here attached below is complete composition of whole system,
Every fire suppression system has its strong points. here is going to throw light upon the pipe network type fm200 fire suppression system.
1/ Flexible application in protection zones. As its structure and assembly of other useful components, it can concentrate one very big protection zone with the combination of multiple storage cylinders. Its coverage can be also very small with the system of a single cylinder.
2/ Efficient spraying of gas. One set of pipe network system can make the discharge on average for big zones in a short time with the help of the deployment of the pipeline.
3/ Combined distribution system. The most distinctive and flexible advantage of this system is combined distribution system, which will combine multiple rooms in one district or building but with different dimensions or on different floor. Meanwhile, it can reduce the cost based on the original by the least and safe utilization of fire extinguishing gas. Because of the adoption of selective valves that can guide the fire extinguishing gas into the room on fire, so it would be relatively smarter to monitor each room to avoid an accident. It is worthy to mention that the combined rooms should be at most 8 in accordance with our standard.
