Home > products > Fire Detection Tube > Hot Sale red Automatic Hfc 227ea Fire Detection Tube For Communications Lightweight Design With Low Maintenance

Hot Sale red Automatic Hfc 227ea Fire Detection Tube For Communications Lightweight Design With Low Maintenance

Product Details

Place of Origin: China

Brand Name: xingjin

Certification: CAL,CMA,CNAS,ILAC-MRA,CCC

Payment & Shipping Terms

Minimum Order Quantity: 5 sets

Price: negotiation

Packaging Details: Plywood case

Delivery Time: 10-15 working days after payment or receipt of L/C

Payment Terms: L/C, , D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 200 sets per week

Get Best Price
Product Details
High Light:

fire detection tubing

,

fire extinguisher tube

Discharge Type:
Indirect
Capacity Of Agent:
5kg
Agent:
Carbon Dioxide
Material:
Steel Cylinder
Standard Of Examination:
GB25972-2010
Volume:
5L
Discharge Type:
Indirect
Capacity Of Agent:
5kg
Agent:
Carbon Dioxide
Material:
Steel Cylinder
Standard Of Examination:
GB25972-2010
Volume:
5L
Product Description

Hfc 227ea Fire Detection Tube For Communications , Broadcasting


Parameter:


No. Specification Technical parameter
1 Type Carbon dioxide direct type
2 model WZ-Q/T-EZ6-XJ60
3 Working pressure 5.7Mpa
4 Max working pressure 12.1Mpa
5 Working temperature 0-49℃
6 Density of unit volume 2.5kg/m3
7 Max length of detecting tube 25m
8 Quantity of agent 42kg




Description:

    The fm200 fire trace extinguisher is a kind of clean, colorless and odorless fire suppression system. Because of its pure and environmentally friendly characteristic, it is widely recognized as the proper substitute to the halon series. This kind of system depends neither electric starting nor manual starting, so even if there is power cut, the fire suppression system can stay in working condition.

    The fm200 fire trace extinguisher should be fixed to the outer cabinet, and fasten the fire detecting tube above or near the places that a fire easily happens. This action will help the system activate in time when a fire occurs, because the system activates only when the detecting tube is burnt by the fire.



FM200 fire detection tube is a type of fire suppression system that utilizes a flexible polymer tubing to sense and extinguish fires. The tubing is filled with a pressurized FM200 gas agent that is released upon detection of a fire. The gas agent is able to quickly suppress fires by reducing the oxygen content of the affected area, effectively extinguishing flames and preventing the fire from spreading.

The detection tubing is designed to be installed throughout a building or facility, allowing for comprehensive fire protection coverage. It is particularly useful for protecting enclosed spaces such as server rooms, electrical cabinets, and other sensitive areas where traditional fire suppression methods may be impractical or hazardous.

FM200 fire detection tube systems are highly reliable, low-maintenance, and environmentally friendly. They are often used as an alternative to traditional sprinkler systems, especially in areas where water-based suppression would be detrimental to equipment or other property.

Applications:

    As its appearance shows, the fm200 fire trace suppression system is used to protect machinery equipment like the power plants, communications, broadcasting, petrochemical, railway ans so on system.

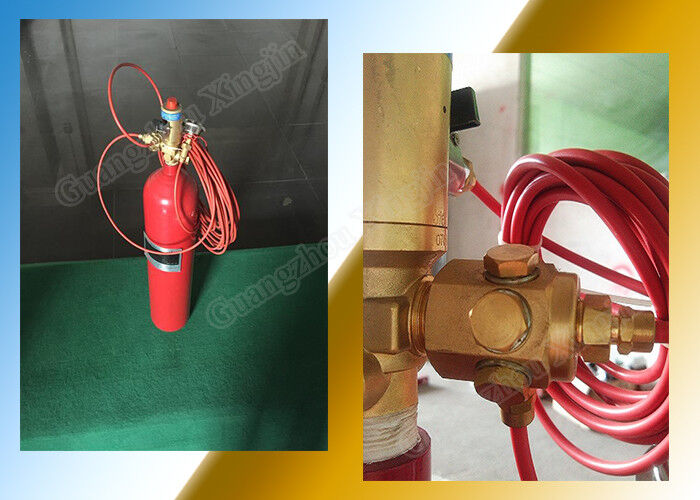

              Hot Sale red Automatic Hfc 227ea Fire Detection Tube For Communications Lightweight Design With Low Maintenance 0

Compositions:

    The direct type fire detecting tube fire suppression system is consist of a cylinder, an at most 25m long fire detecting tube, a container valve and two kinds of agents-- co2 and fm200.

    The indirect type fire detecting tube fire suppression system has the same components as the direct type except a release tube added. In this system, the fire detecting tube is used for just detecting function, so it needs a release tube together, however, for the direct type, the fire detecting tube can be used for both detecting and releasing.

              Hot Sale red Automatic Hfc 227ea Fire Detection Tube For Communications Lightweight Design With Low Maintenance 1


Attentions:

1 / After finishing putting out fire, the fm200 fire trace suppression system should have a whole check and refill.

2 / A complete routine check of the fm200 fire trace suppression system should be done at least once a year. If can follow the frequency we suggest in the manual instruction that will be better.

3 / Any problem occurs, we suggest that users should neither touch nor even want to fix it by themselves, but phone us at the first time to tell us that there is a problem and we will send our professionals to fix it as soon as possible.

4 / We suggest that after everything in the protected zone is ready, then can users begin installing the fm200 fire trace suppression system in case of mistaken opening the fire suppression system.

Company Introduction:

Guangzhou Xingjin Fire Equipment Co., Ltd. is situated in Guangzhou, which is vital to connection between China and the rest of the globe. It is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and our professional and experienced staff, which consists of the program design team, the skillful installation team, the quality detecting team, and the after-sell service team, is dedicated to the study and development of HFC-227ea (FM200) products. The FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automated FM200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system, and the automatic fire suppression tube are all currently commonly utilized. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.


Hot Sale red Automatic Hfc 227ea Fire Detection Tube For Communications Lightweight Design With Low Maintenance 2

Why Choose Us
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.

FAQ:

Q: What is the brand name of FM200 Hanging System?
A: The FM200 Hanging System is manufactured by Guangzhou Xingjin Fire Equipment Co.,Ltd.
Q: Where is the FM200 Hanging System made?
A: The FM200 Hanging System is made in Guangzhou, Guangdong, China.
Q: What models are available for FM200 Hanging System?
A: The FM200 Hanging System is available in 8L/10L/16L/20L/30L/40L models.
Q: How to install the FM200 Hanging System?
A: Please refer to the installation manual for detailed instructions on how to install the FM200 Hanging System.
Q: What are the advantages of FM200 Hanging System?
A: The FM200 Hanging System is highly reliable and efficient, and is designed to quickly extinguish fires and protect property.
